Ultrasonic Baths

Digital Ultrasonic Baths DU-Series

The new Digital ultrasonic cleaner baths are made of excellent quality stainless steel and are equipped with heating

up to 60 °C, timer, power control, Pulse, Degas, Multifrequency and overtemperature alarm.

The DU Series is equipped with a LCD display and a controller which simultaneously indicate timer, set temperature,

actual temperature, ultrasonic power level and operating frequency.

All models are provided with a stainless-steel mesh basket, stainless steel lid and 1x 60 ml concentrate universal

cleaner solution.

The most common applications are

• Degassing of wine or beer samples for analysis of alcohol

    contents, color and pH value

• Cleaning of technical glassware

• Degassing of canned drinks for analysis of stannous contents

• Extraction of soil samples for determination of hydrocarbons

• Simultaneous disinfection and cleaning

• Electronic parts and components, lenses and crystals

2 Years

Warranty

OZ-10

Technical Data

Capacity

Max. Temperature

Heating Power

Timer

Power Level

Ultrasonic Frequency

UIltrasonic Power

Voltage • Fequency

Tank Dimension

Extern. Dimension

Weight

DU-32S

3.2 L

60 °C

100 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

120 W

220 - 240 V • 50 - 60 Hz

240 x 135 x 100 mm

260 x 160 x 235 mm

3.8 kg

DU-45S

4.5 L

60 °C

200 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

180 W

220 - 240 V • 50 - 60 Hz

300 x 150 x 100 mm

325 x 175 x 225 mm

4.4 kg

DU-65S

6.5 L

60 °C

200 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

180 W

220 - 240 V • 50 - 60 Hz

240 x 150 x 150 mm

325 x 175 x 305 mm

5.4 kg

Technical Data

Capacity

Max. Temperature

Heating Power

Timer

Power Level

Ultrasonic Frequency

UIltrasonic Power

Voltage • Fequency

Tank Dimension

Extern. Dimension

Weight

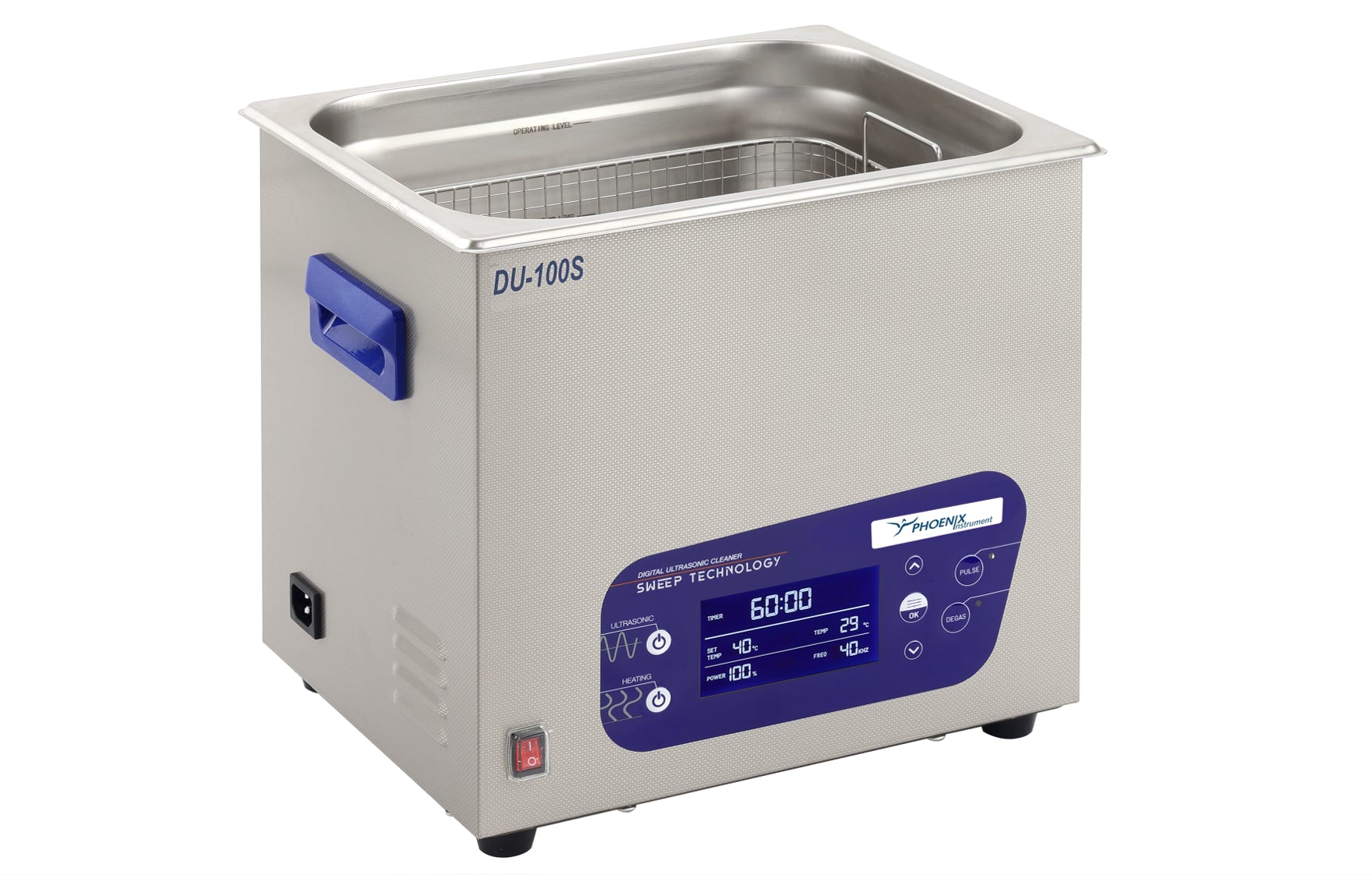

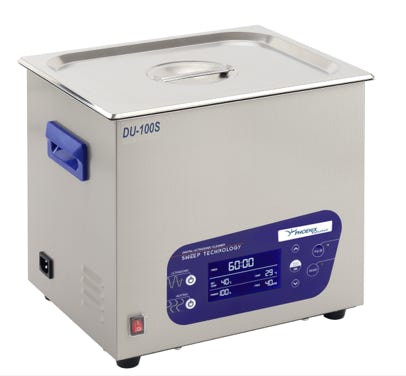

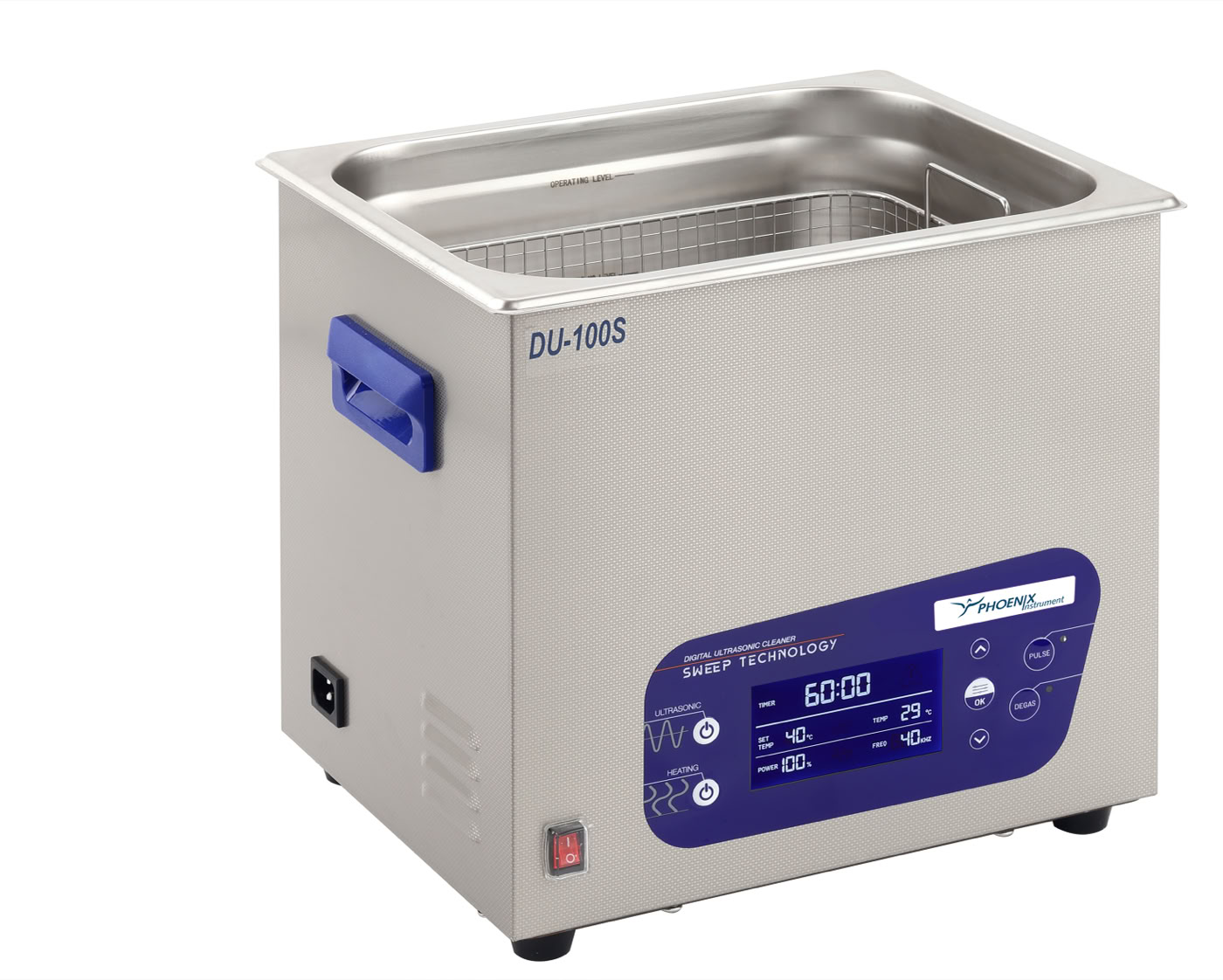

DU-100S

10 L

60 °C

500 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

240 W

220 - 240 V • 50 - 60 Hz

300 x 240 x 150 mm

325 x 265 x 310 mm

8.2 kg

DU-220S

22 L

60 °C

500 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

480 W

220 - 240 V • 50 - 60 Hz

500 x 300 x 150 mm

530 x 330 x 340 mm

13.2 kg

DU-450S

45 L

60 °C

1,000 W

1 … 99 min

10…100 % / 10 % Step

28 & 40 kHz

720 W

220 - 240 V • 50 - 60 Hz

500 x 300 x 300 mm

530 x 325 x 500 mm

17 kg
