Digital Portable Thermometer
TM-21 and TM-26
Phoenix Instrument is proud to announce the introduction of a complete and interesting range of digital portable thermometers and probes. The models TM-21, TM-26 and TM-28 are designed to offer the best performance combined with a simple and intuitive user interface. Depending on the model, either PT100, NTC30K, or thermocouples can be connected.
Additional features on the TM-26
• Two separate measurement channels are available for PT100
• USB interface
• Manual and automatic storage of up to 1000 data sets
(temperature and time)
• GLP-compliant measurement possible

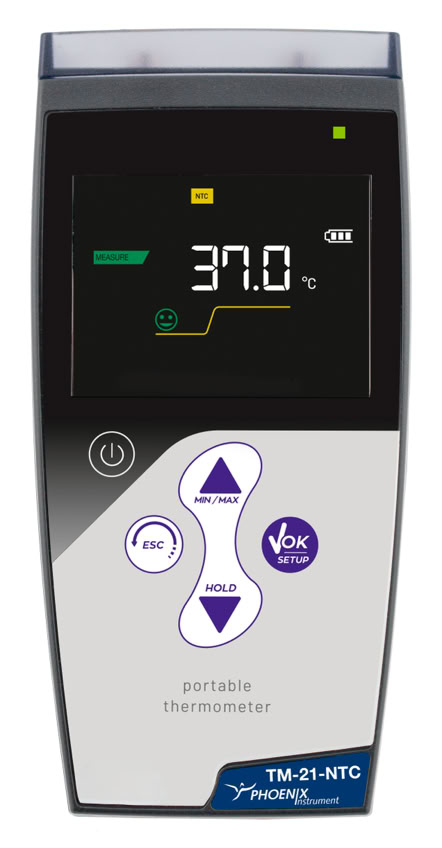

TM-21-NTC / TM-21PT / TM-21-KT
• Portable thermometer with backlit color display
• Recording of minimum and maximum values, measurement stability display
• Suitable for PT100, NTC30K, or type K and T thermocouples
• Single-point calibration with display of the correction made
• Hold function, min/max, and automatic shutdown after 20 minutes
• Simple and intuitive operation
• IP 56
• Carrying case and batteries included
Technical data
Sensor
Measuring range
Resolution
Accuracy
Measurement channels
Interface
Datenlogger
Display
Operating conditions
Dimensions / Weight
IP class
Power supply
TM-21-NTC
NTC-30K
-50.0 … +150.0 °C
0.1 °C
0.2 °C
1
no
no
High resolution backlit
LCD-Colordisplay
T: 0 … +60 °C UR: < 95 %
85 x 184 x 45 mm / 0.4 Kg
IP 56
Battery
TM-21-PT
PT 100
-200.0 … +999.0 °C
0.1 °C (-99.9 ... +199.9 °C)
±0.2 °C (-99.9 … +199.9 °C)
±2 °C in the remaining meas. Range
1
no
no
High resolution backlit
LCD-Colordisplay
T: 0 … +60 °C UR: < 95 %
85 x 184 x 45 mm / 0.4 Kg
IP 56
Battery
Technical data
Sensor
Measuring range
Resolution
Accuracy
Measurement channels
Interface
Datenlogger
Display
Operating conditions
Dimensions / Weight
IP class
Power supply
TM-21-KT
Thermoelement Type K and T
K: -200 ... +1,350 °C
T: -250 ... +400 °C
0.1 °C (-99.9 ... +199.9 °C)
±0.1% from meas. value
±0.4 °C (> –150 °C)
±0.25% from meas. value
±1 °C (< –150 °C)
1
no
no
High resolution backlit
LCD-Colordisplay
T: 0 … +60 °C UR: < 95 %
85 x 184 x 45 mm / 0.4 Kg
IP 56
Battery

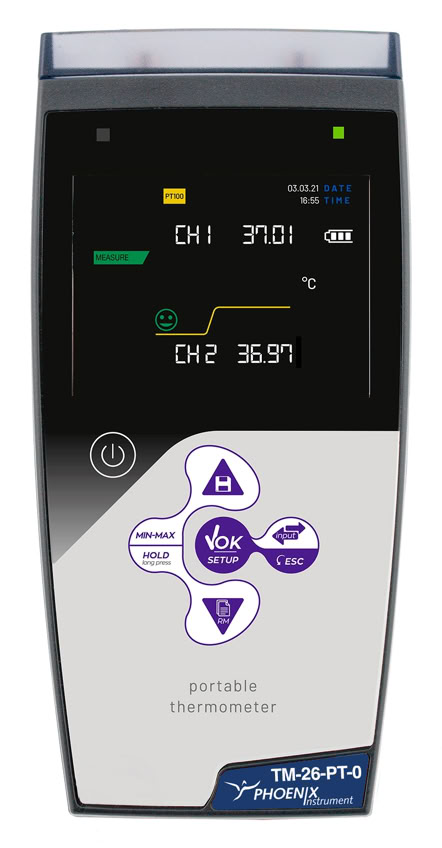

TM-26-PT
PT 100
-200.0 … +999.0 °C
0.01 °C
±0.03 °C (-99.99 … +99.9 °C)
±0.1 °C (-200.0 … -100.0 °C)
2
USB
1,000 data
High resolution backlit
LCD-Colordisplay
T: 0 … +60 °C UR: < 95 %
85 x 184 x 45 mm / 0.4 Kg
IP 56
Battery / USB-Power supply
Available Sets
TM-21-PT 0
TM-21-NTC 0
TM-21-NTC 1
TM-21-NTC 2
TM-21-KT 0
TM-26-PT 0
Kit for PT 100 sensors, including case, without sensor
Kit for NTC sensors, including case, without sensor
Kit for NTC sensors, including TM-122 (penetration) and case
Kit for NTC sensors, including TM-142 (liquids and air) and case
Kit for thermocouple K/T sensors, including case, without sensor
Kit for PT 100 sensors, including case and USB power supply, without sensor
Accessories
TM-300
Magnetic holder for TM-21, TM-26 and TM-28
Digital Portable Thermometer

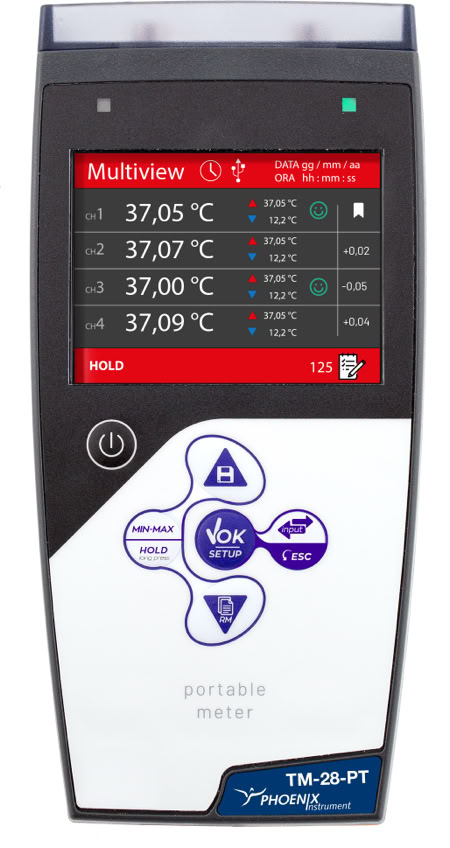

TM-28-PT
The new TM-28-PT offers the possibility to measure the temperature with four PT100 sensors simultaneously and to store it using the large internal data logger.
The current 4 measured values are displayed in parallel on the 4“ graphic display. All data can be conveniently transferred to a PC via the USB interface.
TM-28-PT
• GLP-compliant, portable thermometer 4 x PT100 inputs,
resolution 0,01 °C
• High-resolution 4-inch color display for all lighting conditions
• Intuitive user interface in ITA - ENG - ESP - FR - DE
• Data logger for up to 190,000 data records with date and time
• Different memory modes
• DataLink+ software available for free download
• Optical and visual alarm function
• ID entry for each channel
• 1-point calibration for each channel
• 4-digit password to protect data and calibrations
Technical data
Sensor input
Measuring range
Resolution
Accuracy
Measurement channels
Interface
Data logger
Display
Operating conditions
Dimensions / Weight
IP class
Power supply
TM-28-PT
4 x PT-100
-200.0 … +999.9 °C
0.01 °C
±0.03 °C (-99.99 … +99.9 °C)
±0.1 °C (+100.0 … +999.9 °C)
±0.1 °C (-200.0 … -100.0 °C)
4
USB
190,000 data
4" Color graphic display
T: 0 … +60 °C UR: < 95 %
85 x 184 x 45 mm / 0.4 Kg
IP 56
Battery / USB-power sopply
Erhältliche Set Varianten
TM-28-PT 0
TM-28-PT 1
Kit for PT 100 sensors, including case and USB power supply, without sensor
Kit for PT 100 sensors, including 4 x TM-252, case, and USB power supply
Accessories
TM-300
Magnetic holder for TM-21, TM-26 and TM-28
