Basic Series

New version of Basic controller - 7 programs with 10 steps each. The Incubators and ovens from Phoenix Instrument allow an easy setting of all operating parameters and optimal temperature control.

The large backlit display clearly shows in every moment the temperature set and that one inside as well as other parameters.

The introduction of user-friendly icons makes interpretation of the functions and commands extremely intuitive. Moreover, the limited number of adjustment keys ensures operability very simple and intuitive.

All our instruments are environmental-friendly with reduced power consumption and improved protection. All instruments will be supplied with a calibration report.

Basic version

• 7 programs x 10 steps

• Repeatable working cycles

• Wide backlit LCD display

• Easy to read Icons

• Timer and continuous function

• Visual and sound alarm

• Fan speed control

• Program start delay

• Safety temperature for sample protection

Super Series

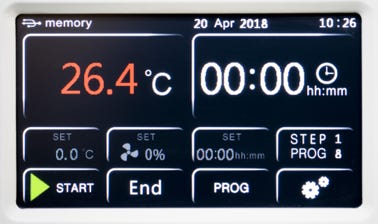

New generation of color touch screen display with user friendly screens and icons - 8 programs storable with 8 steps each one recordable data on USB support with flash drive supplied for all ovens and incubators except model TIN-TN30

All on board

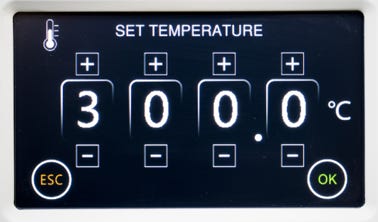

Color touch screen display for the selection of the various functions.

All parameters on a single screen: temperature, fan speed, time,

program number and step, USB pendrive presence, date and time.

Easy to use

Simply and intuitive setting of all the operating parameters thanks to icons and symbols easy to understand.

The capacitive display ensures touch sensitivity and precision even when wearing gloves.

Programs

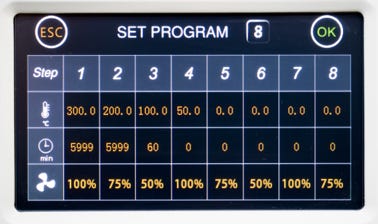

Professional controller equipped with 8 storable programs with 8 steps each one and a further basic program (PROG 0) with a single step.

Simple programming of all work steps in a single screen.

Safety of use

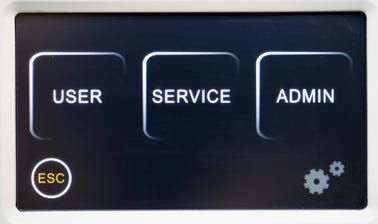

Settings menu with 3 access levels:

1 free and 2 protected by password to avoid accidental changes

 to “sensitive” machine parameters.

Natural convection oven

from +5 °C over RT up to +300 °C

Ideal for everyday use in the processes of drying and sterilization, the natural convection ovens are characterized by a high load capacity and by the accurate temperature control.

The possibility to heat the samples up to 300 °C allows any type of sterilization process. The minimum heating times, the heating power properly dimensioned and the perfect tightness of the seals, ensure low

energy consumption in every application.

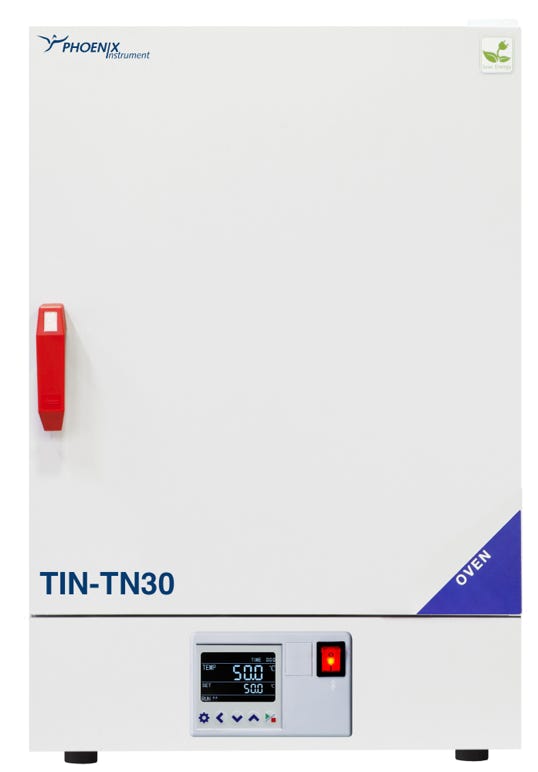

TIN-TN30

TIN-TN200

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Heating time at 37 °C

Timer

Int. dimension (WxHxD)

No. of shelves (standard/max)

Min. distance between shelves

Max. load of shelves

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

TIN-TN30

30 Liters

RT +5 to +200 °C

0.1 °C

±3.5 °C

±0.5 °C

14 min

99:59/continous

320 x 320 x 285 mm

2/4

50 mm

10 kg

230 V / 700 W

460 x 685 x 530 mm

40 kg

3.1

TIN-TN50

50 Liters

RT +5 to +300 °C

0.1 °C

±3.5 °C

±0.5 °C

16 min

99:59/continous

400 x 420 x 330 mm

2/5

50 mm

15 kg

230 V / 1,000 W

690 x 635 x 470 mm

53 kg

3.1

TIN-TN115

115 Liters

RT + 5 to +300 °C

0.1 °C

±3.5 °C

±0.5 °C

18 min

99:59/continous

520 x 495 x 450 mm

2/6

50 mm

20 kg

230 V / 1,900 W

815 x 750 x 600 mm

74 kg

3.1

TIN-TN200

200 Liters

RT + 5 to +300 °C

0.1 °C

±4 °C

±0.7 °C

20 min

99:59/continous

650 x 640 x 495 mm

2/9

50 mm

20 kg

230 V / 2,100 W

940 x 905 x 660 mm

103 kg

3.1

Forced air oven

from +10 °C over RT up to +300 °C

The forced air ovens TIN-TF 50, -TF 120,- TF 200 and -TF 400 control very efficiently the temperature starting from 10 °C above ambient temperature up to 300 °C.

The PID controller, with wide backlit color display, clearly shows in every moment the temperature set and that one inside as well as other parameters.

The forced air circulation, adjustable in three levels (High, Medium, Low), guarantees a perfect air replacement and homogeneity of temperature in every parts of the chamber.

A through hole of 5 mm diameter supplied as standard on the top side of the oven permits to introduce an external probe for the check or certification of the temperature.

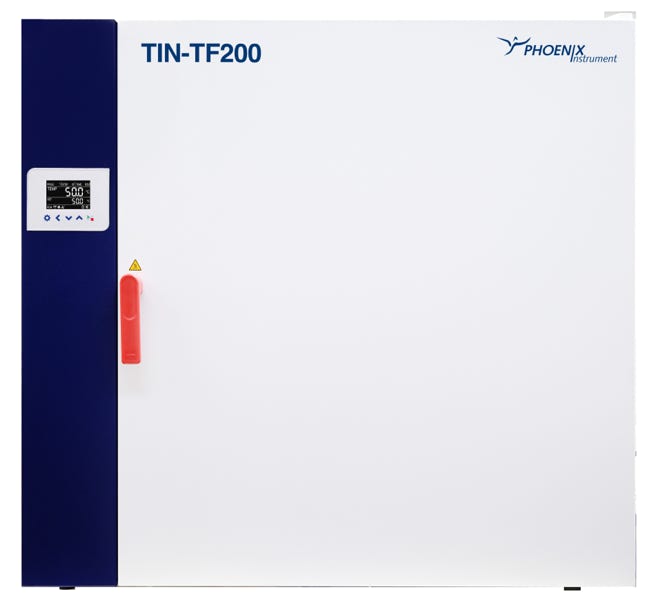

TIN-TF200

TIN-IF400

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Heating time at 37 °C

Timer

Int. dimension (WxHxD)

No. of shelves (standard/max)

Min. distance between shelves

Max. load of shelves

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

TIN-TF50

50 Liters

RT +10 to +300 °C

0.1 °C

±2 %

±0.3 °C

20 min

99:59/continous

400 x 415 x 310 mm

2/5

50 mm

15 kg

230 V / 980 W

690 x 635 x 570 mm

54 kg

3.1

TIN-TF120

120 Liters

RT +10 to +300 °C

0.1 °C

±2 %

±0.3 °C

24 min

99:59/continous

520 x 530 x 435 mm

2/7

50 mm

20 kg

230 V / 1.900 W

810 x 750 x 690 mm

74 kg

3.1

TIN-TF200

200 Liters

RT +10 to +300 °C

0,1 °C

±2 %

±0,4 °C

30 min

99:59/continous

645 x 650 x 495 mm

2/9

50 mm

20 kg

230 V / 2.400 W

945 x 870 x 755 mm

103 kg

3.1

TIN-TF400

400 Liters

RT +10 to +300 °C

0.1 °C

±2 %

±0.5 °C

50 min

99:59/continous

1.000 x 800 x 500 mm

2/10

50 mm

20 kg

230 V / 3.200 W

1,285 x 1,060 x 750 mm

160 kg

3.1

Accessories for Ovens

TIN-1000142    Steel wire shelf for TN 30

TIN-1000192    Steel holed platform applicable to wire shelf for TN 30

TIN-1000102    Steel wire shelf for TN 50 / TF 50

TIN-1000152    Steel holed platform applicable to wire shelf for TN 50 / TF 50

TIN-1000112    Steel wire shelf for TN 115 / TF 120

TIN-1000162    Steel holed platform applicable to wire shelf for TN 115 / TF 120

TIN-1000122    Steel wire shelf for TN 200 / TF 200

TIN-1000172    Steel holed platform applicable to wire shelf for TN 200 / TF 200

TIN-1000132    Steel wire shelf for TF 400

TIN-1000182    Steel holed platform applicable to wire shelf for TF 400

Natural convection incubators

from RT+10 °C up to 70 °C

The organic materials used in the typical laboratory application require a constant and gentle heating.

The temperature distribution in the incubators is obtained without forced air circulation but using only the natural convection, which does not stress the sample and allows its uniform growth.

The wide door glass window allows a constant check of the status of the samples inside the chamber without opening the door, thereby avoiding unnecessary heat loss and temperature changes.

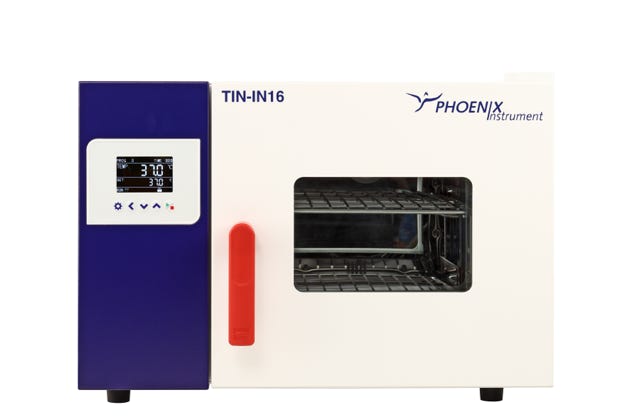

TIN-IN16

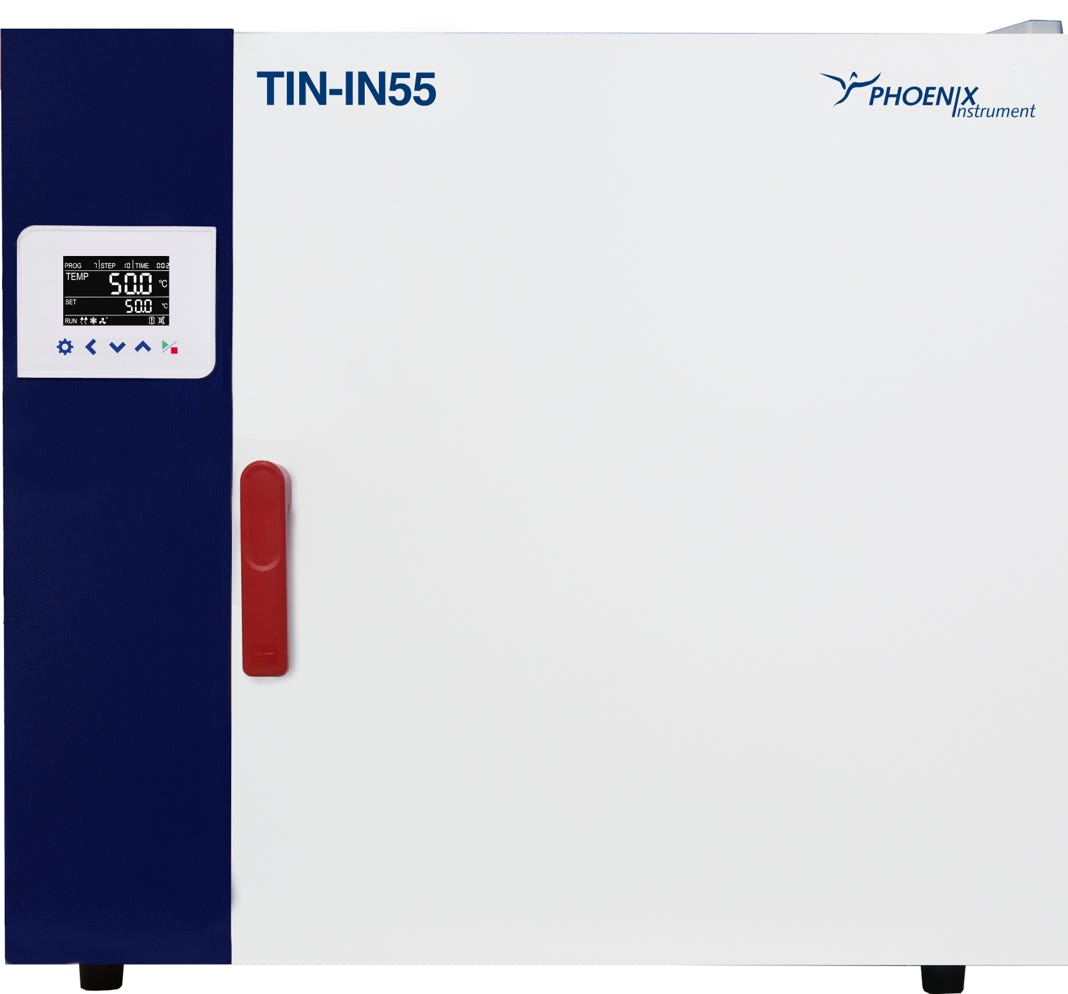

TIN-IN55

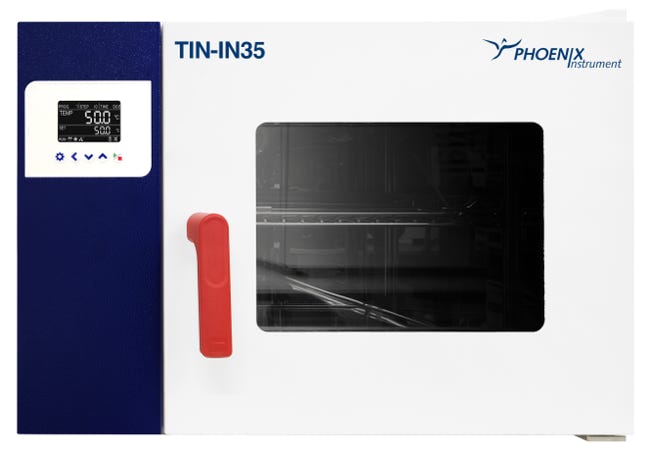

TIN-IN35

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Heating time at 37 °C

Timer

Int. dimension (WxHxD)

No. of shelves (standard/max)

Min. distance between shelves

Max. load of shelves

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

TIN-IN16

16 Liters

RT + 10 to 70 °C

0.1 °C

±0.4 °C

±0.3 °C

18 min

99:59/continous

270 x 230 x 255 mm

2/6

25 mm

5 kg

230V / 85W

530 x 370 x 400 mm

23 kg

2

TIN-IN35

35 Liters

RT + 10 to 70 °C

0,1 °C

±0.4 °C

±0.3 °C

22 min

99:59/continous

360 x 300 x 320 mm

2/6

30 mm

7,5 kg

230V / 125W

620 x 440 x 460 mm

33 kg

2

TIN-IN55

55 Liters

RT + 10 to 70 °C

0,1 °C

±0.5 °C

±0.3 °C

25 min

99:59/continous

400 x 360 x 385 mm

2/5

50 mm

10 kg

230V / 250W

660 x 500 x 545 mm

42 kg

2

Natural convection incubators with higher volumes

from RT+10 °C up to 70 °C

Incubators with higher volume, thanks to the optimal placing of the heating elements, ensure high performance in homogeneity and stability of temperature and the proper incubation of the samples.

The difference from the smaller models is the presence of the double door, with the inner glass full-width, which ensures a perfect observation of the samples in the chamber without unnecessary heat losses.

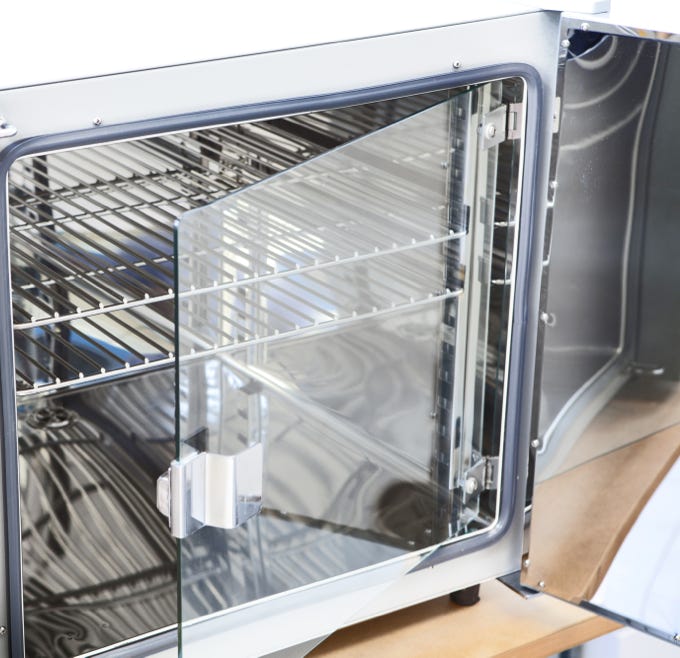

Double door

TIN-IN55

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Heating time at 37 °C

Timer

Int. dimension (WxHxD)

No. of shelves (standard/max)

Min. distance between shelves

Max. load of shelves

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

TIN-IN120

120 Liters

RT + 10 to 70 °C

0.1 °C

±0.5 °C

±0.3 °C

30

99:59/continous

520 x 460 x 500 mm

2/7

50 mm

10 kg

230V / 350W

780 x 610 x 645 mm

61 kg

2

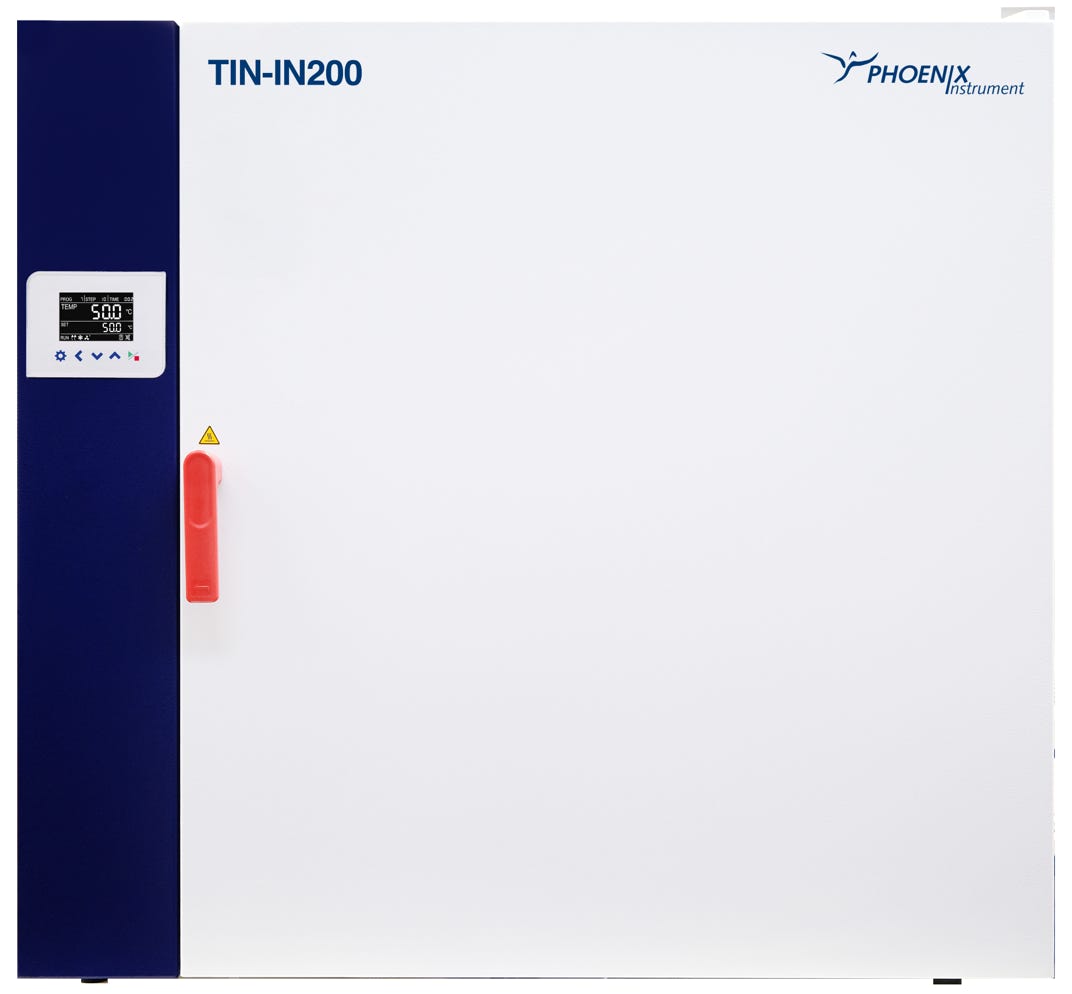

TIN-IN200

200 Liters

RT + 10 to 70 °C

0.1 °C

±0.5 °C

±0.3 °C

35

99:59/continous

610 x 600 x 575 mm

2/9

50 mm

10 kg

230V / 600W

875 x 755 x 710 mm

77 kg

2

Forced air Incubators

from RT+5 °C up to 80 °C

Our new forced air incubators control the temperature up to 80 °C very efficiently. It’s possible in addition, set a program at 130 °C which allows the thermally sterilization of the chamber. The full wide internal glass door ensures perfect observation of samples without unnecessary and expensive heat losses.

The forced ventilation, adjustable on three levels (High, Medium, Low) guarantees a perfect air exchange and an excellent temperature homogeneity in all points of the chamber.

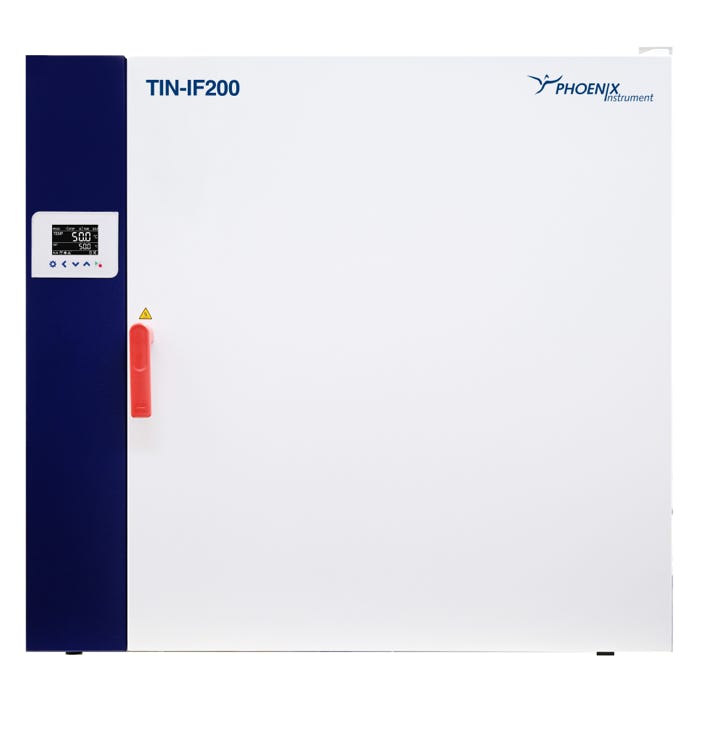

TIN-IF200

TIN-IF400

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Heating time at 37 °C

Timer

Int. dimension (WxHxD)

No. of shelves (standard/max)

Min. distance between shelves

Max. load of shelves

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

TIN-IF120

120 Liters

RT + 5 to 80 °C

0.1 °C

±0.4 °C

±0.1 °C

40 min

99:59/continous

520 x 530 x 435 mm

2/7

50 mm

20 kg

230V / 600W

810 x 750 x 690 mm

74 kg

2

TIN-IF200

200 Liters

RT + 5 to 80 °C

0.1 °C

±0.4 °C

±0.2 °C

45 min

99:59/continous

645 x 650 x 495 mm

2/9

50 mm

20 kg

230V / 700W

945 x 870 x 755 mm

103 kg

2

TIN-IF400

400 Liters

RT + 5 to 80 °C

0.1 °C

±0.5 °C

±0.3 °C

55 min

99:59/continous

1,000 x 800 x 500 mm

2/10

50 mm

20 kg

230V / 1,500W

1,285 x 1,060 x 750 mm

160 kg

2

Accessories for Incubators

TIN-1001112    Steel wire shelf for IN 16

TIN-1001122    Steel wire shelf for IN 35

TIN-1001132    Steel wire shelf for IN 55

TIN-1001142    Steel wire shelf for IN 120 / IF 120

TIN-1001152    Steel wire shelf for IN 200 / IF 200

TIN-1000132    Steel wire shelf for IF 400

TIN-1000182    Steel holed platform applicable to wire shelf for IF 400

TIN-1001172    Wheels for all Incubators and Ovens, Set of 4 pcs.

Water Baths WB-5 / WB-12 / WB-22

from RT+5 °C up to +99 °C

The new Water bath SB35 with linear shaking function. Bath, lid, spring basket and support surface for samples are made entirely of stainless steel. Thanks to the flexibility of the universal spring support it is possible to insert different types of flasks, beakers, balloons or other recipients of different capacities and shapes.

Electronic regulation of the temperature with PID control and adjustment of the shaking speed by

knob. The instrument comes with a practical emptying tube and quick-fit valve for the periodic replacement of the liquid in the tank.

The practical basket fixing system allows easy

cleaning and maintenance of the tub.

WB-12 with Module TIN-10018222

WB-12

Technical data

Volume

Max temperatue

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Overheating protection

Timer

Plate dimension (WxHxD)

Max. No. of modules

Min. height with closed lid

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

WB-5

5 Liters

RT + 5 to 99 °C

 0.1 °C

±0.5 °C

±0.1 °C

yes

99:59/continous

270 x 120 mm

2

150 mm

230V / 900W

480 x 215 x 335 mm

12 kg

2

WB-12

12 Liters

RT + 5 to 99 °C

0.1 °C

±0.5 °C

±0.1 °C

yes

99:59/continous

290 x 230 mm

4

150 mm

230V / 900W

480 x 380 x 310 mm

12 kg

2

WB-22

22 Liter

RT + 5 to 99 °C

0.1 °C

±0.5 °C

±0.1 °C

yes

99:59/continous

470 x 290 mm

8

150 mm

230V / 1,100W

680 x 390 x 365 mm

18 kg

2

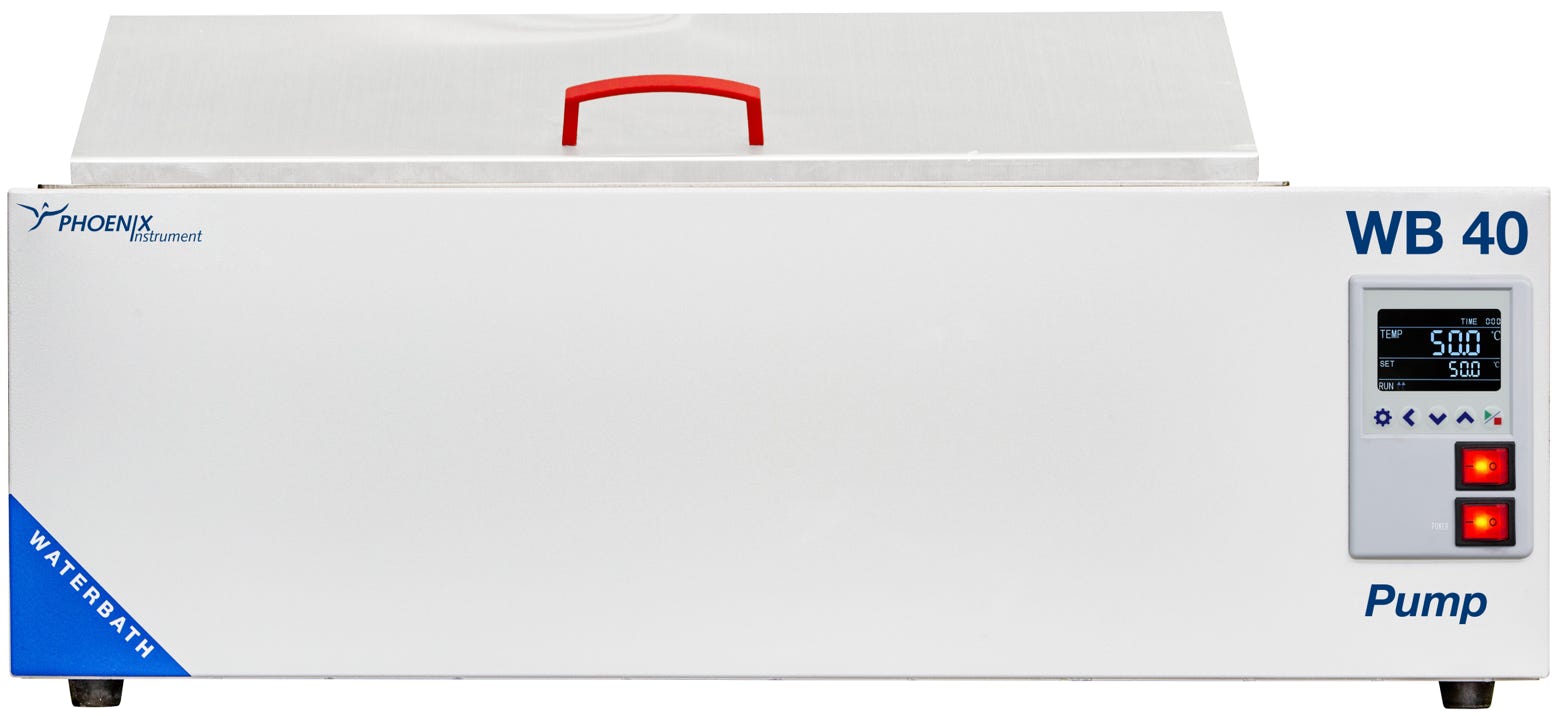

Water Baths with Pump WB-22-Pump and WB-40-Pump

from RT+5 °C up to +85 °C

The models WB 22 and WB-40 with pump realize faster and evenly temperature circulation.

WB-40

Inside the chamber

Technical data

Volume

Max. temperature

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Overheating protection

Timer

Bottom plate dimension  (WxHxD)

No. of modules (standard/max)

Min. height with closed lid

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

WB-22-Pump

22 Liters

RT + 5 to 85 °C

0.1°C

±0.2°C

±0.1°C

yes

99:59/continous

470 x 290 mm

8

150 mm

230V / 1,100W

680 x 390 x 365 mm

19 kg

2

WB-40-Pump

40 Liters

RT + 5 to 85 °C

0.1°C

±0.5°C

±0.2°C

yes

99:59/continous

620 x 380 mm

16

150 mm

230V / 2,200W

830 x 390 x 460 mm

28 kg

2

Accessories for Water Baths

TIN-1001802    Rack 1 for tubes Ø13mm / 20 positions 1 Module

TIN-1001812    Rack 2 for tubes Ø18mm / 20 positions 1 Module

TIN-1001822    Rack 3 for tubes Ø31mm / 5 positions 1 Module

TIN-1001842    Rack 4 for tubes Ø56mm / 8 positions (biberon) 3 Modules

TIN-1001852    Rack 5 for blood bags / 5 positions 3 Modules

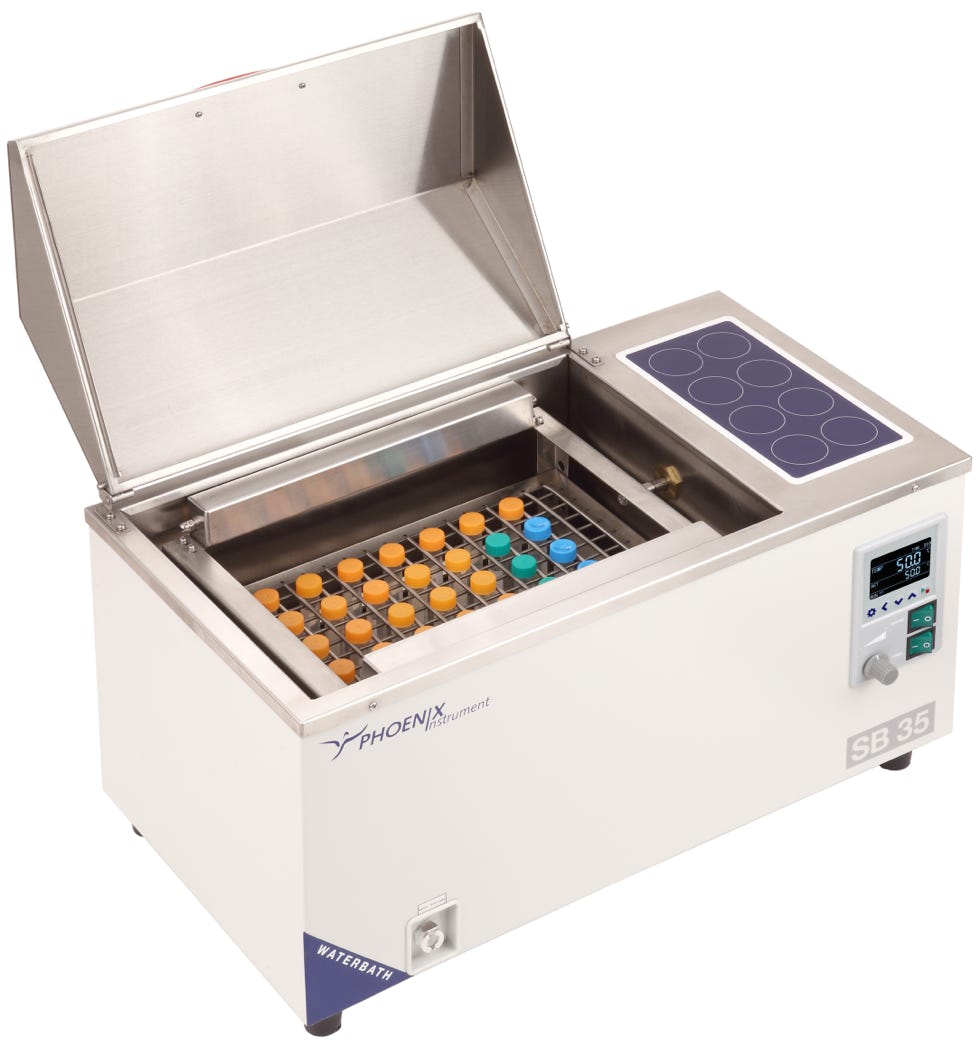

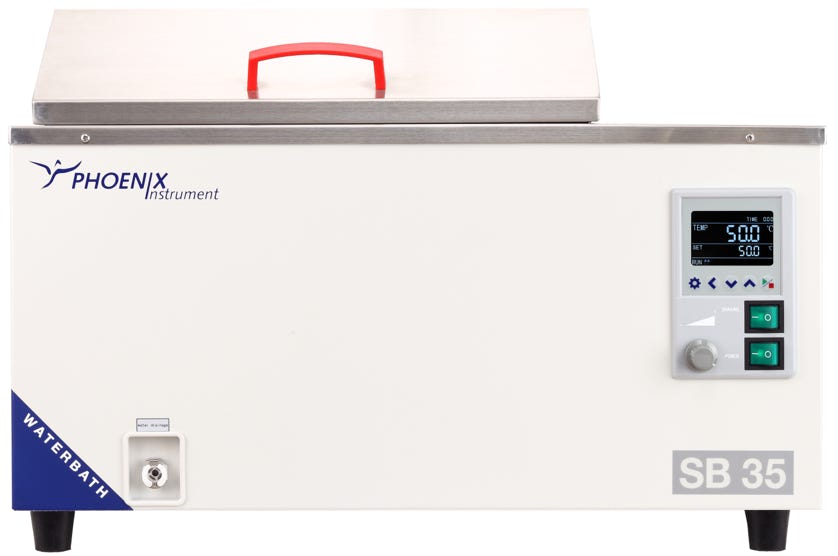

Shaking Water Bath SB-35

from RT+5 °C to +99 °C

The new Water bath SB35 with linear shaking function. Bath, lid, spring basket and support surface for samples are made entirely of stainless steel.

Thanks to the flexibility of the universal spring support it is possible to insert different types of flasks, beakers, balloons or other recipients of different capacities and shapes.

Electronic regulation of the temperature with PID control and adjustment of the shaking speed by

knob. The instrument comes with a practical emptying tube and quick-fit valve for the periodic replacement of the liquid in the tank.

The practical basket fixing system allows easy

cleaning and maintenance of the tub.

SB-35 with Tubes

Technical data

Volume

Max. temperature

Resolution

Temp. homogeneity at 37 °C

Temp. variation at 37 °C

Overheating protection

Timer

Shaking speed

Amplitude of platform movement

Spring basket dimension

Min. height with closed lid

Voltage / Power

Ext. dimension (WxHxD)

Weight

Safety class

SB-35

35 Liters

RT + 5 to +99 °C

0.1 °C

±1.0 °C

±0.5 °C

yes

99:59/continous

0 … 150 rpm

30 mm

320 x 115 x 200 mm

150mm

230V / 1,250W

645 x 350 x 355 mm

28 kg

2

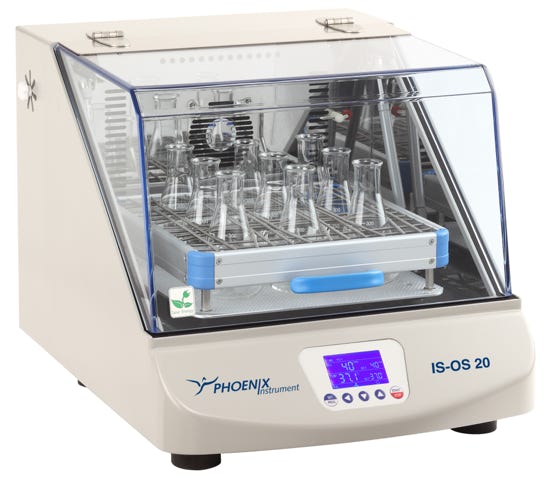

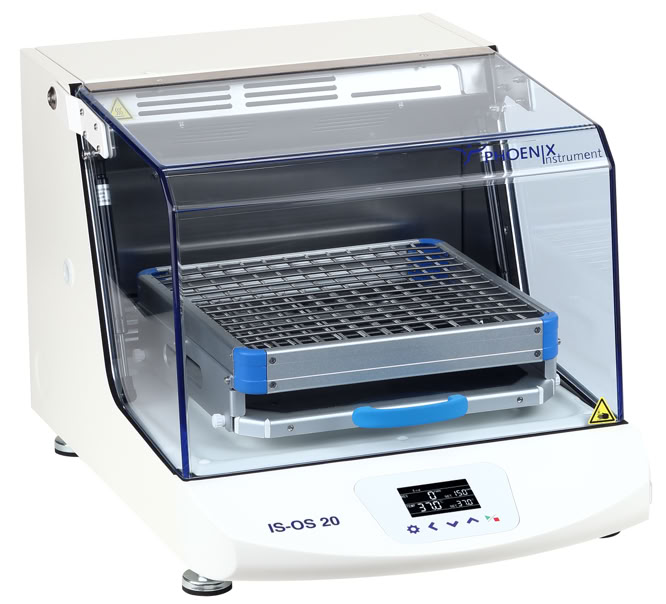

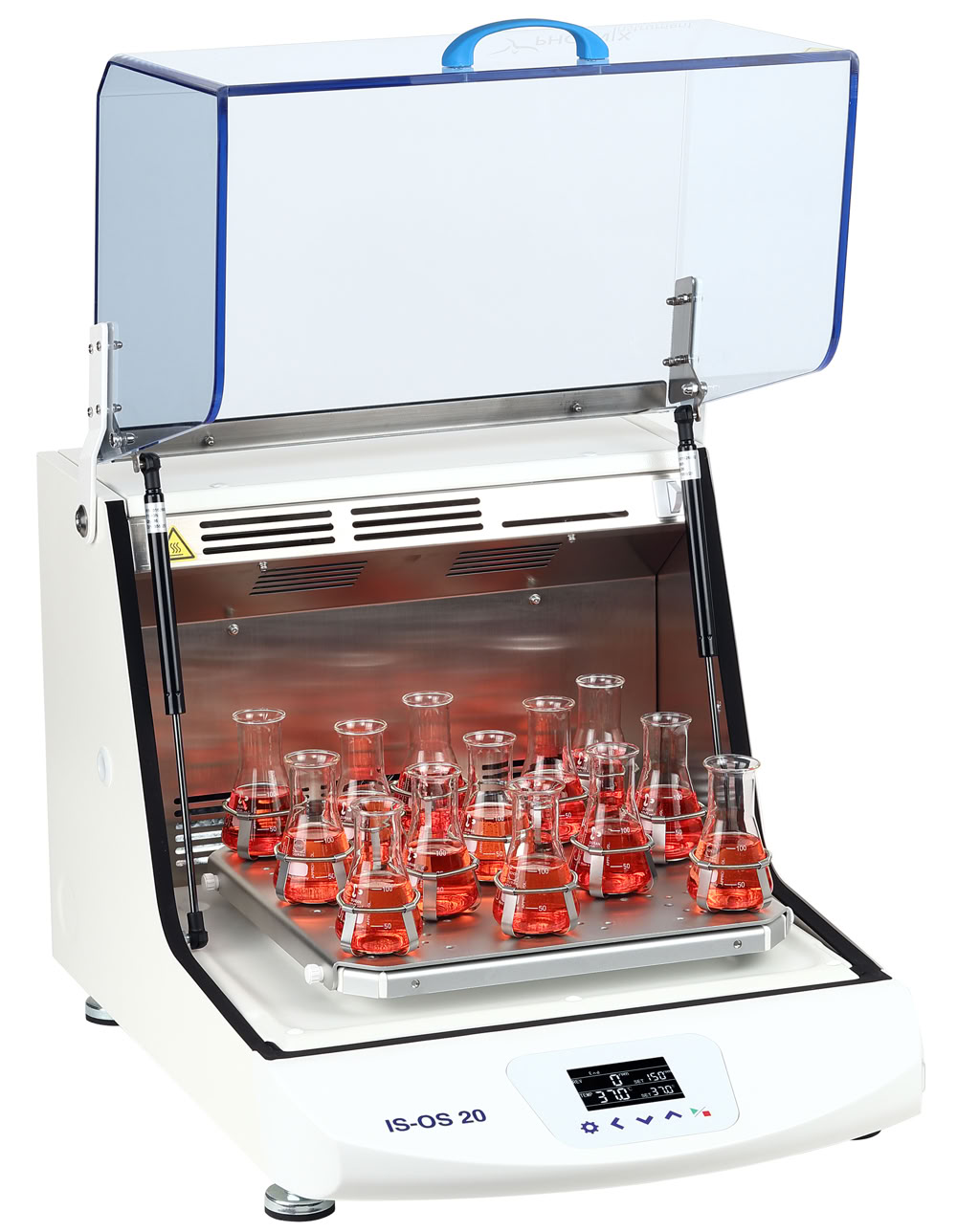

Shaking Incubator IS-OS 20

The new shaking incubator IS-OS 20 combines two typical laboratory operations in one instrument: shaking and incubation of samples.

Ideal for cell culture, solubility studies,

extraction procedures and many other

laboratory applications.

The built-in fan guarantees a uniform

distribution of the temperature.

IS-OS20 will be supplied with a

standard platform equipped with

flexible springs that can accommodate

many types of flasks, beaker,

tubes with different sizes.

Technical data

Temperature range / Resolution

Tem. homogeneity at 37 °C

Tem. variation at 37 °C

Adjustable safety temp. protection

Timer

Shaking speed

Amplitude of platform movement

Capacity

Dimension platform (WxD)

Voltage / Power

Ext. dimension (WxHxD)

Weight

Material hood / thickness

IS-OS 20

RT+5 to 60 °C / 0.1 °C

±0.5 °C

±0.1 °C

yes

99:59/continous

40 … 300 rpm

20 mm

7 x 500 ml Erlenmeyer flasks

4 x 1,000 ml Erlenmeyer flasks

320 x 320 mm

230 V / 500 W

500 x 470 x 610 mm

40 kg

Plexiglass / 8 mm

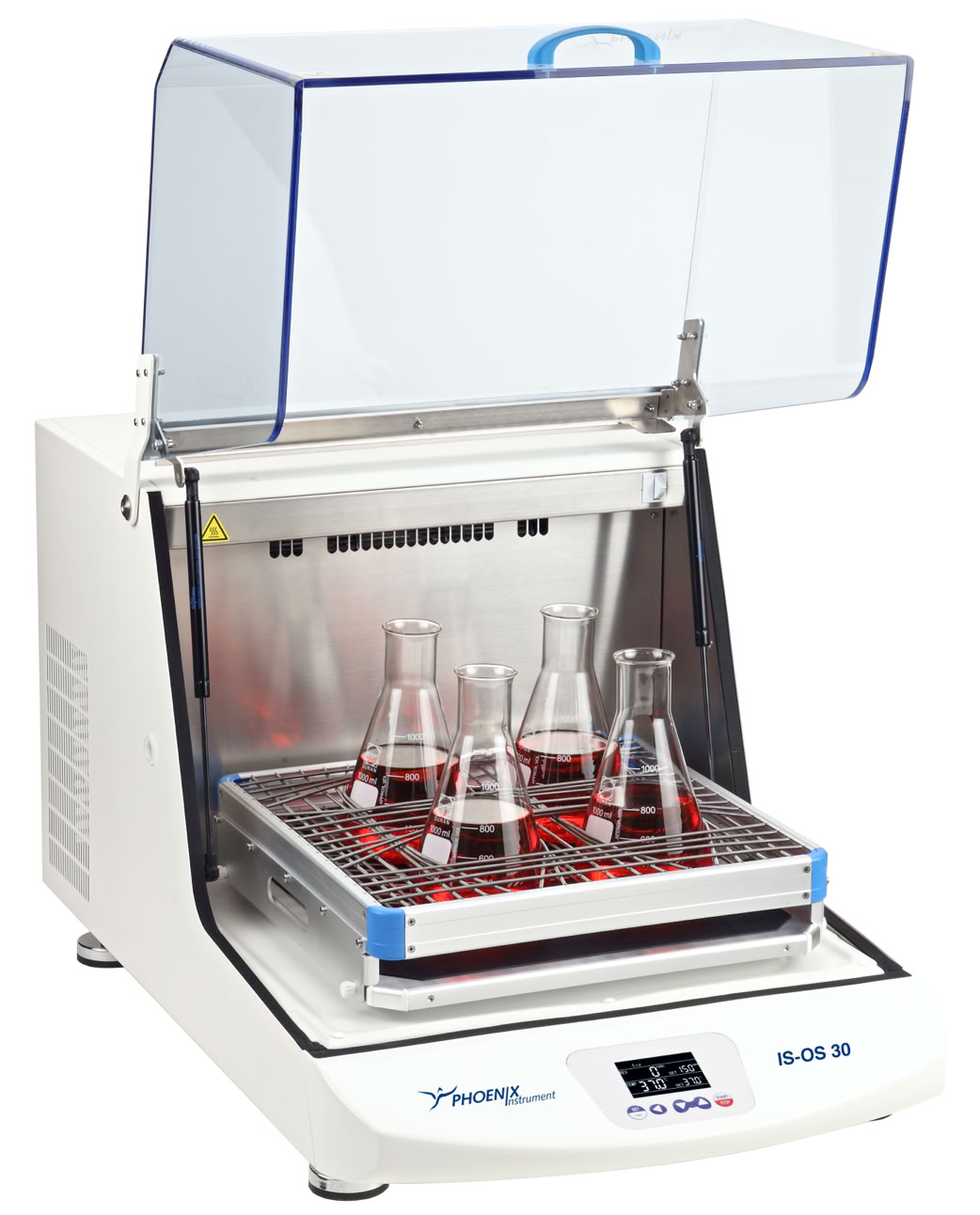

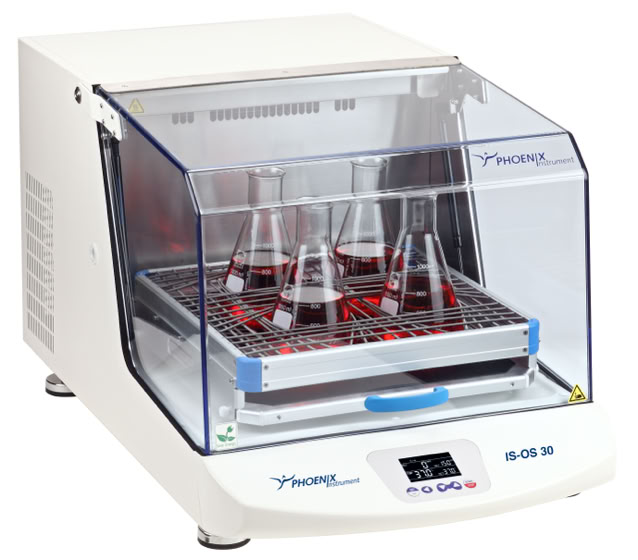

Refrigerated Shaking Incubator IS-OS 30

• forced recirculation

• spring-loaded shelf included

• adjustable safety temperature

• cover made of 8 mm acrylic glass

• extensive range of accessories

Technical data

Temperature range / Resolution

Tem. homogeneity at 37 °C

Tem. variation at 37 °C

Adjustable safety temp. protection

Timer

Shaking speed

Amplitude of platform movement

Capacity

Dimension platform (WxD)

Ext. dimension (WxHxD)

Material hood / thickness

Weight

Adjustable safety temperature

Recognition hood open

Voltage / Power

IS-OS 30

4 - 60 °C / 0.1 °C

± 0.5 °C

± 0.1 °C

yes

Timer / continous

40 … 300 rpm

20 mm

12 x 500 ml Erlenmeyer flasks

450 x 450 mm

1,300 W

610 x 950 x 540 mm

Plexiglass / 8 mm

90 kg

yes

yes

230 VAC / 50/60 Hz

Possible Load Steel Wire Shelf

Possible Load of Plate

12 Erlenmeyer flasks 250 ml

25 50 ml Flacon Tubes

49 Erlenmeyer flasks 50 ml

36 Erlenmeyer flasks 100 ml

18 Erlenmeyer flasks 250 ml

16 Erlenmeyer flasks 500 ml

   9 Erlenmeyer flasks 1,000 ml

   4 Erlenmeyer flasks 2,000 ml

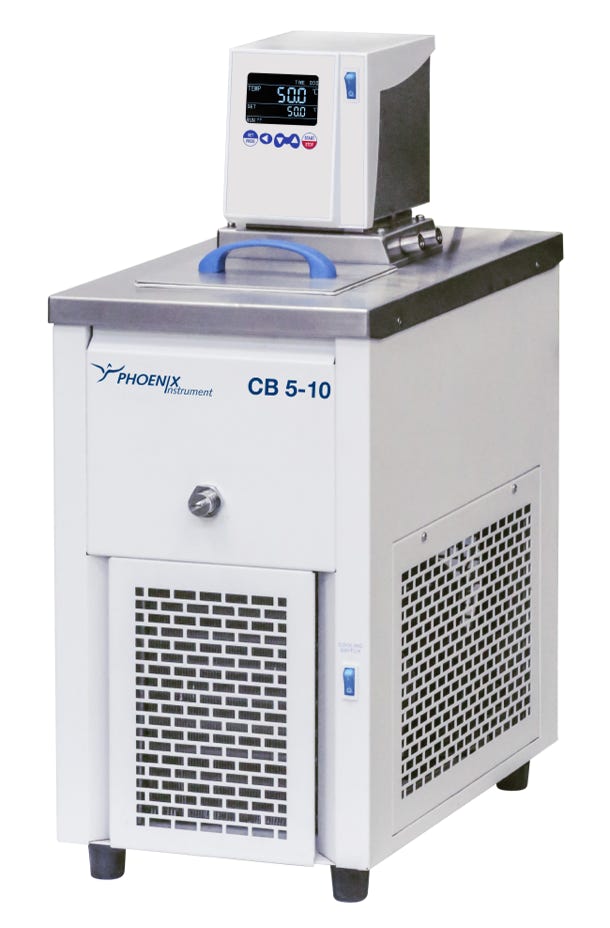

Circulation Bath CB-5-10, CB-5-20 and CB-5-30

from -30 to +99,5 °C

The new refrigerated/heating circulating baths are suitable for temperature controlling of samples in a wide range of temperatures.

All the models are designed for external and internal applications, usable for tests in laboratories and industries.

Each instrument is standard equipped with a PT100 probe for

temperature control in an external circuit.

The controller automatically recognizes the presence of the probe

and determines the type of work inside or outside the tank.

Technical data

Temperature range

Temperature resolution / setting

Temperature stability at 20 °C

Timer

Cooling capacity

(20 °C)

(10 °C)

(0 °C)

(-10 °C)

(-20 °C)

(-30 °C)

Max. pump pressure

Max. pump flow rate

Bath volume

Bath opening depth

External dimension (WxHxD)

Voltage / Power

Weight

CB 5-10

-10 to 99.5 °C

0.1 °C

±0.3 °C

99:59/continous

0.37 KW

0.33 KW

0.30 KW

0.22 KW

0.35 bar

3.2 L/min

5 Liters

150 x 160 x 150 mm

290 x 570 x 710 mm

230V/50Hz

34 kg

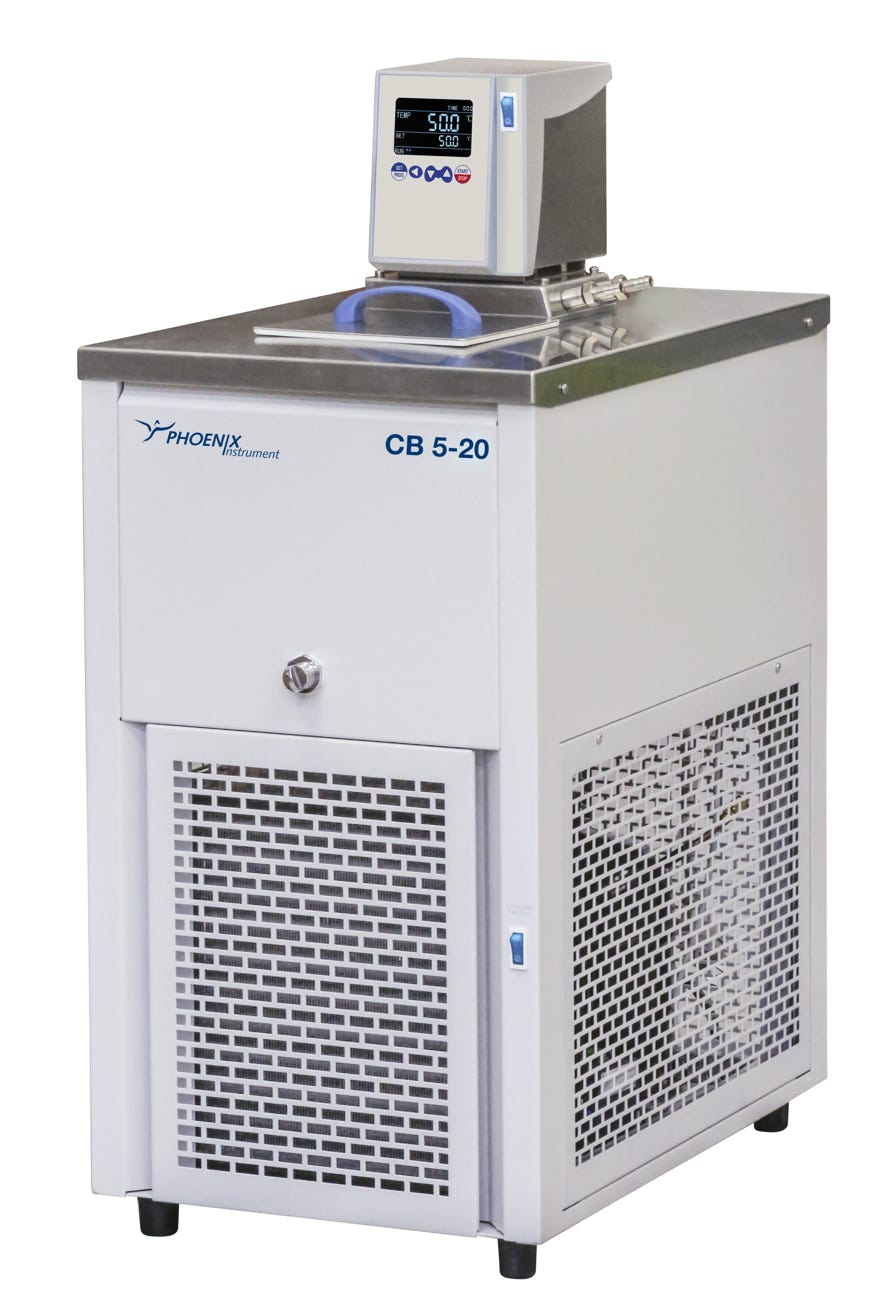

CB 5-20

-20 to 99.5 °C

0.1 °C

±0.2 °C

99:59/continous

0.41 KW

0.37 KW

0.33 KW

0.28 KW

0.16 KW

0.35 bar

6.5 L/min

5 Liters

150 x 160 x 150 mm

380 x 670 x 840 mm

230V/50Hz

54 kg

CB 5-20

-20 to 99.5 °C

0.1 °C

±0.2 °C

99:59/continous

0.44 KW

0.40 KW

0.37 KW

0.32 KW

0.20 KW

0.15 KW

0.35 bar

6.5 L/min

5 Liters

150 x 160 x 150 mm

380 x 670 x 840 mm

230V/50Hz

54 kg

Technical data

Usable Volume

Temperature range

Temperature resolution

Temp. homogeneity in chamber

Temp. variation on a point

Humidity range

Humidity variation at a point

Timer / programs

Safety class

Voltage / Power

Internal dimension (WxHxD)

No. of shelves (standard/max.)

Useful min. distance between shelves

Max. load of shelves

External dimension (WxHxD)

External dimension waster tank (WxHxD)

Weight

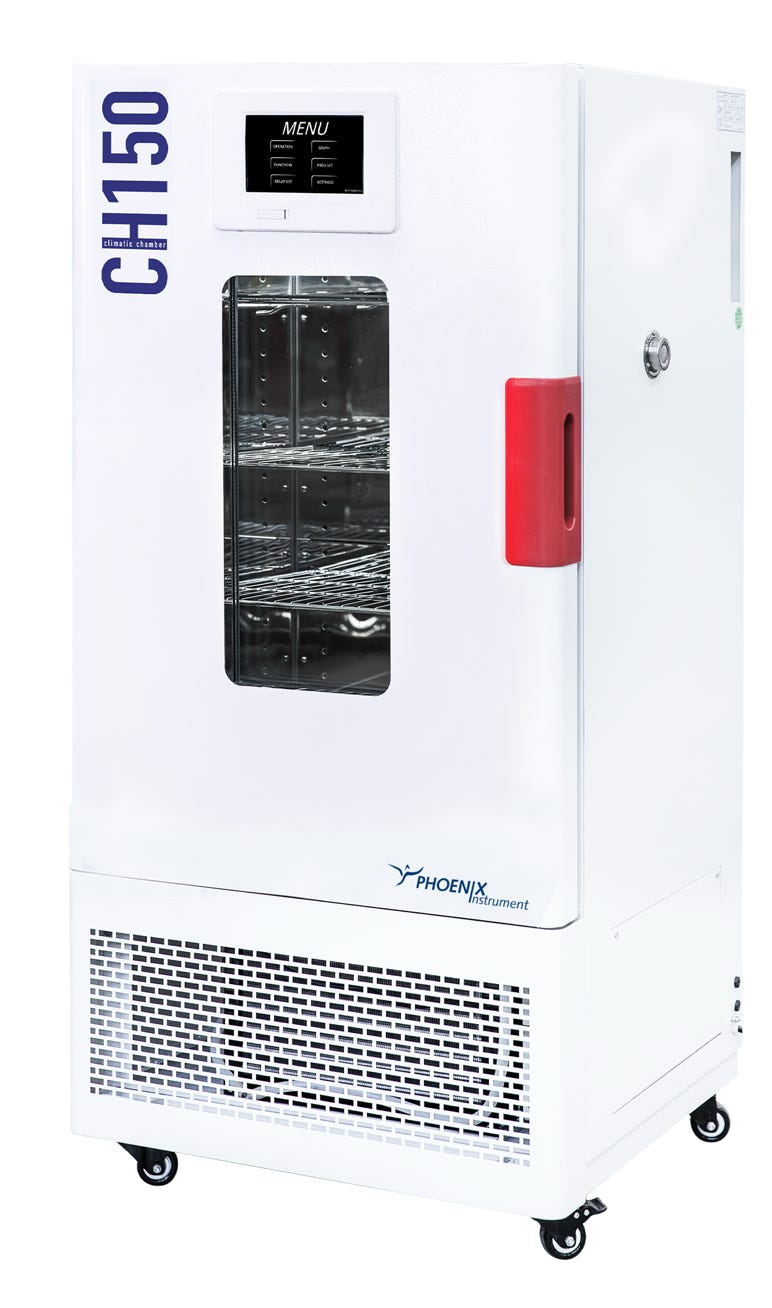

CH-150

150 Liters

-10 - 85 °C (without humidity)   +10 - 70 °C (with humidity)

0.1 °C

± 0.5 °C (without humidity)  ± 1,5 °C (10 ÷ 70 °C / 45 ÷ 95% RH)

± 0.2 °C (without humidity)  ± 0,5 °C (10 ÷ 70 °C / 45 ÷ 95% RH)

45 % - 95 %

≤ 2% RH (10 ÷ 70 °C / 45 ÷ 95% RH

Continous  /  1-100 steps

3.1

230V / 2,200 W

550 x 670 x 405 mm

3/10

45 mm

10 kg

690 x 1,520 x 790 mm

370 x 340 x 560 mm

145 kg

CH-250

250 Liters

0.1 °C

45 % - 95 %

3.1

230V / 2,200 W

600 x 830 x 500 mm

3/12

45 mm

10 kg

690 x 1,520 x 790 mm

370 x 340 x 560 mm

185 kg

Accessories

CH-1001462

CH-1001472

CH-1000152

CH-1000142

 Steel wire shelf for climatic chamber CH 150

Steel wire shelf for climatic chamber CH 250

Hole Ø 25 mm complete with sealing caps for

climate chambers CH 150/CH 250

Hole Ø 50 mm complete with sealing caps for

climate chambers CH 150/CH 250

Technical data

Usable Volume

Temperature range

Temperature resolution

Temp. homogeneity at 25 °C

Temp. variation at 25 °C

Recovery time at 25 °C

Timer

Safety class

Voltage / Power

Internal dimension (WxHxD)

No. of shelves (standard/max.)

Useful min. distance between shelves

Max. load of shelves

External dimension (WxHxD)

Weight

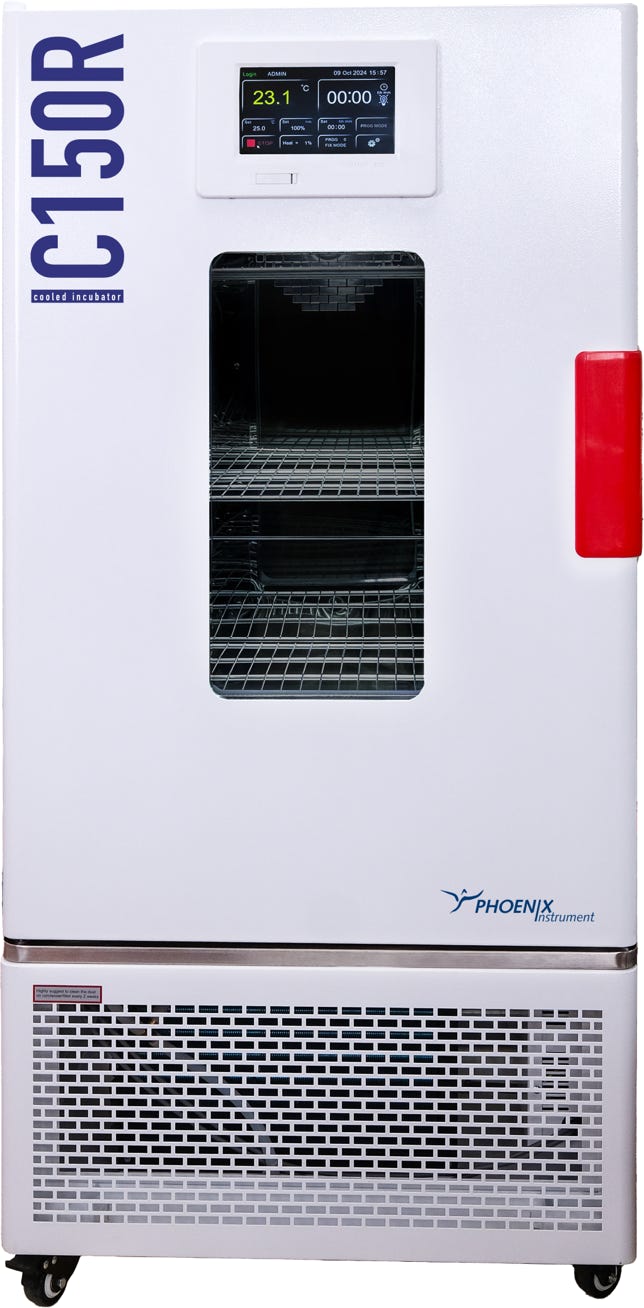

IC-150-R

150 Liters

0 to 60 °C

0.1 °C

± 0.5 °C

± 0.1 °C

4 minutes

99:59 min / continous

3.1

230 V / 700 W

500 x 800 x 360 mm

3/9

50 mm

10 kg

650 x 1,350 x 620 mm

100 kg

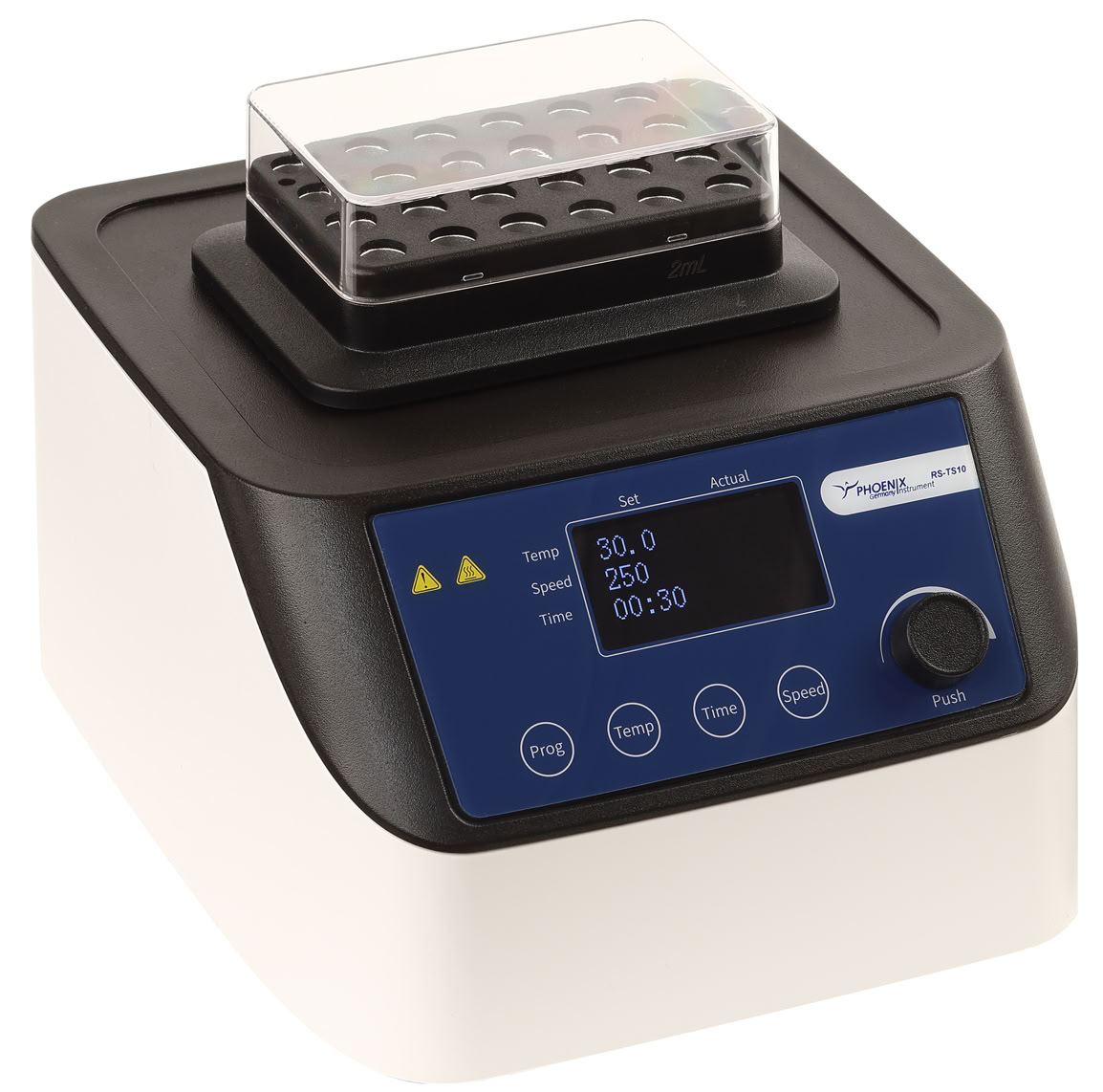

Digital Thermo Shaker RS-TS 5 / RS-TS 10

• Fully programmable (9 programs)

• Precise temperature control

     for heating and cooling

• Real-time display of speed,

     temperature and time

• Excellent mixing (200-1,500 rpm)

• Quick interchange of blocks without tools

     and automatic block recognition

• Block equipped with a lid for

    heat preservation

• Temperature self-calibration

RS-TS 10

Technical data

Movement

Amplitude

Temperature range / resolution

Temp. accuracy

Max. heating speed

Max. cooling speed

Speed

Motor

Programs

Display

Adjustment

Power

Dimension

Weight

Voltage • Frequency

RS-TS 5

orbital

4 mm

RT+5 to 99.9 °C

0.5 °C

5.5 °C/min

5 °C/min (100 °C-RT)

200 - 1,500

DC, brushless

9

TFT

digital

200 W

200 x 235 x 120 mm

7.3 kg

200 - 240 V • 50/60 Hz

RS-TS 10

orbital

4 mm

RT+5 to 99.9 °C

0.5 °C

5.5 °C/min

5 °C/min (100 °C-RT)

0,5 °C/min (below RT)

200 - 1,500

DC, brushless

9

TFT

digital

200 W

200 x 235 x 120 mm

7.3 kg

200 - 240 V • 50/60 Hz

Accessories Thermo Shaker RS-TS 5 and RS-TS 10

Hole (d x h)

8.1 x 26 mm

10.9 x 30.8 mm

10.9 x 30.8 mm

13.6 x 42 mm

17 x 51.5 mm

16.9 x 80 mm

29.6 x 80 mm

Max. speed

1,500 rpm

1,500 rpm

1,500 rpm

1,500 rpm

1,400 rpm

800 rpm

600 rpm

1,500 rpm

1,500 rpm

Lid

yes

yes

yes

no

yes

no

no

yes

yes

TSB-10

TSB-15

TSB-20

TSB-25

TSB-30

TSB-35

TSB-40

TSB-45

TSB-50

TSB-10

TSB-15

TSB-20

TSB-25

TSB-30

TSB-35

TSB-40

TSB-45

TSB-50

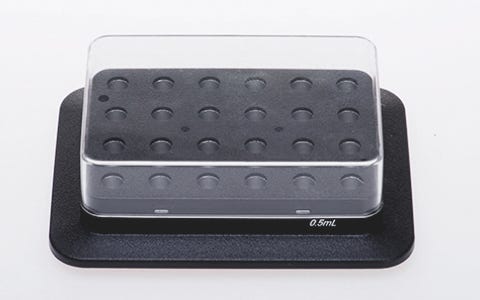

Heating block 24 x 0.5 ml

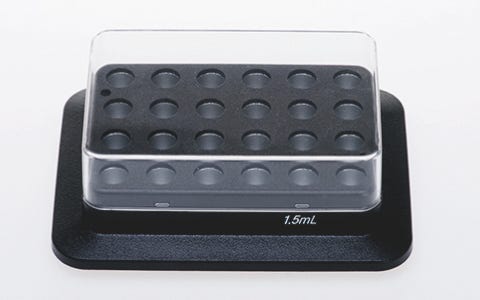

Heating block 24 x 1,5 ml

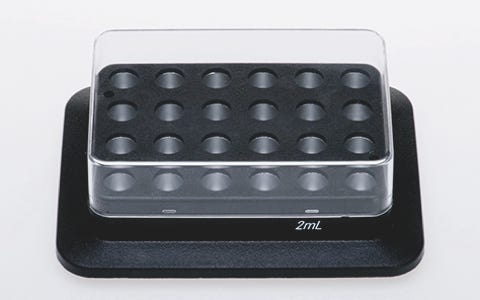

Heating block 24 x 2 ml

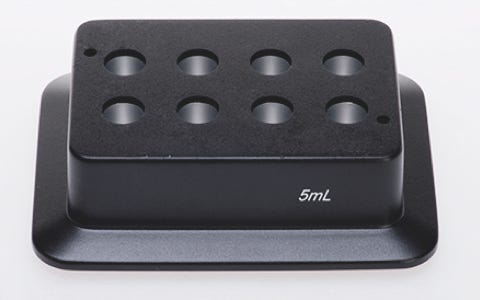

Heating block 8 x 5 ml

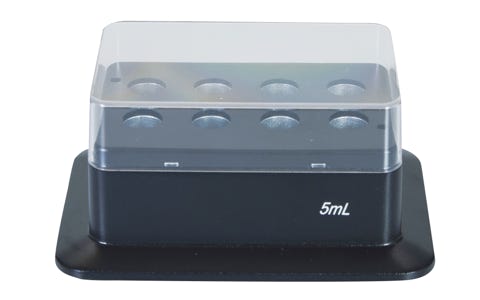

Heating block 8 x 5 ml, konical

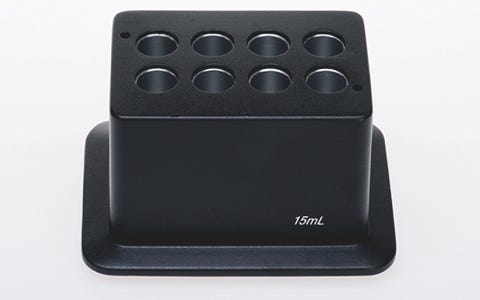

Heating block 8 x 15 ml

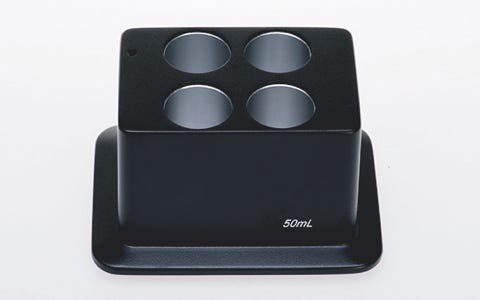

Heating block 4 x 50 ml

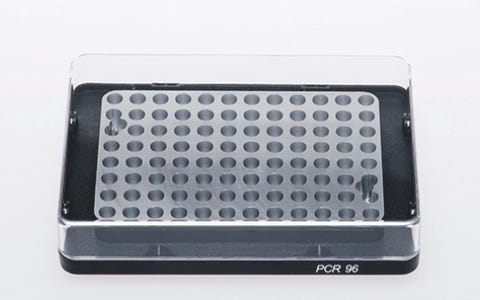

Heating block 96 well PCR plate borderless

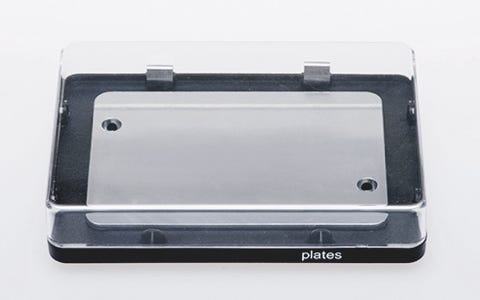

Heating block 96/384 mikrotiterplate

Digital Dry Bath HB-100

Digital Dry Bath HB100 with various interchangeable heating blocks is ideal for molecular biology, histology, clinical, environmental and industrial laboratories, including melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and insitu hybridizations.

• A broad temperature range to 120 °C,

    for a variety of applications

• Continuous and time operation

• Various types of optional block are available

• Over temperature protection

Technical data

Temperature range

Temperature Setting range

Temperature control accuracy

Temperature display accuracy

Temperature uniformity@37 ℃

Time setting range

Power

Display

Voltage • Frequency

Dimension (WxDxH)

Weight

Permissible ambient temp.

Permissible ambient humidity

HB-100

RT+5 to 120 ℃

25 - 120 ℃

±0.5℃

0.1 ℃

±0.5 ℃

0 min …99h 59min

160 W

LED

110/220 V • 50/60 Hz

175 x 290 x 85 mm

3 kg

10 - 40 ℃

<80% RH

Accessories

HB-E100

HB-E105

HB-E108

HB-E110

HB-E115

HB-E120

HB-E125

HB-E130

Heating Block HB-100

54 x 0,2 ml tubes conical

40 x 0,5 ml tubes conical

40 x 1,5 ml tubes conical

40 x 2 ml tubes round

28 x 5/15 ml tubes conical

8 x 50 ml tubes conical

18 x 0.2 ml, 0.5 ml x 1.5/2 ml

96 or 384 well plate

Ø (mm)

5.4

8.2

11

11

17

29.8

Depht (mm)

15

26.4

34.7

34.7

48

48

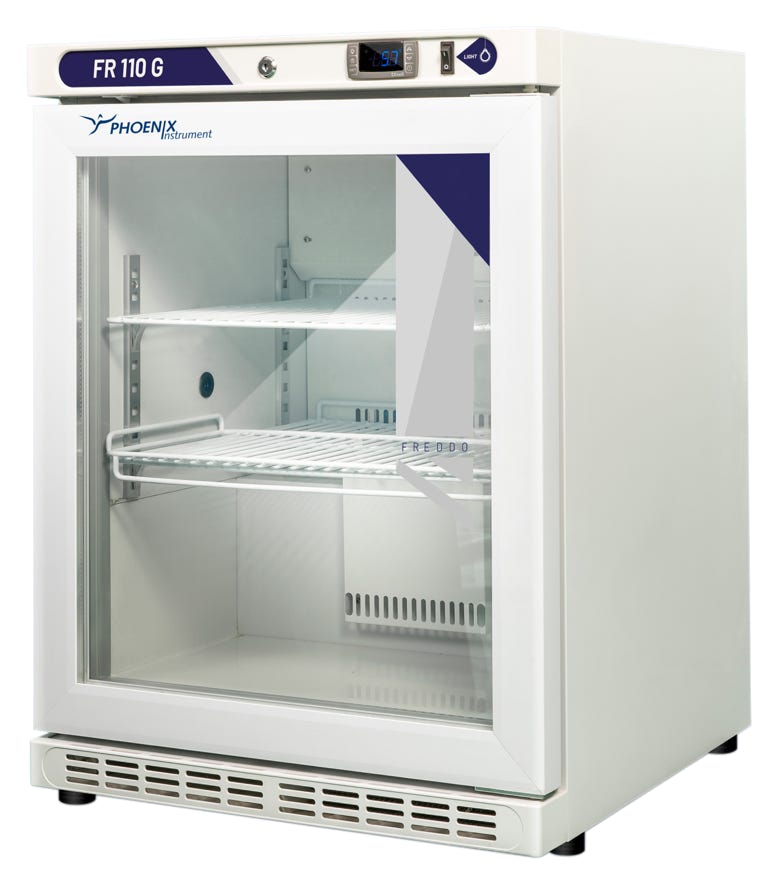

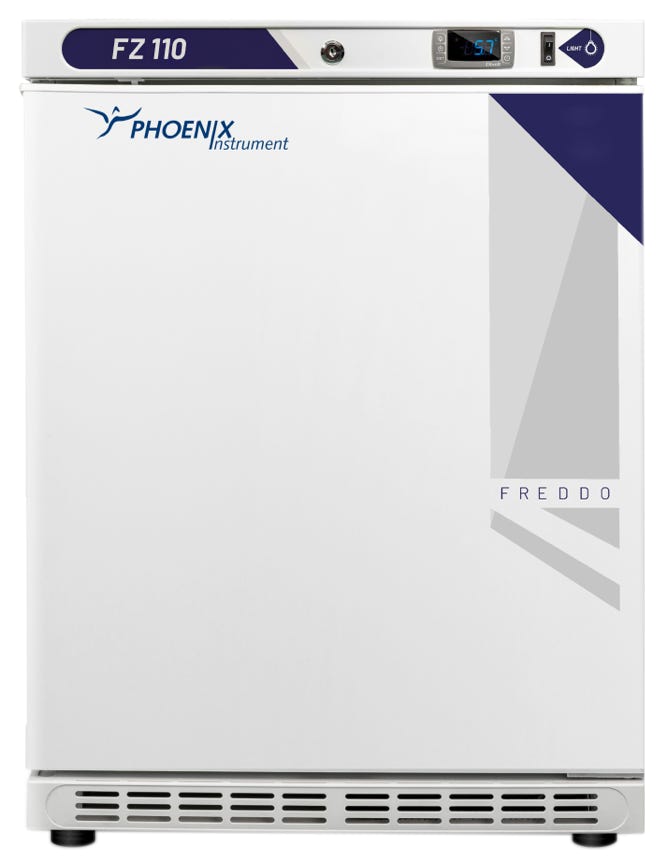

Refrigerator and Freezer TIN-FR / FZ

Professional laboratory refrigerators and freezers, with digital display and electronic control, temperature alarms, door sensor and manual/automatic defrost (automatic only on FR series). Smart refrigerated instruments, the internal parameters can be adjusted according to customers demands.

The highly efficient compressors contain “environment friendly” ecological gases, free of CFCs and HCFCs, in compliance with the directive 2014/68 / EU.

The internal dynamic ventilation system guarantees the best conditions for the storage of even the most sensitive materials, in compliance with the EN 60068-3 standard.

Three levels of alarms: acoustic, visual and remote with 0 potential contact. The small-sized models (110 liters internal useful volume) are suitable for environments with limited spaces and can be placed under the counter. 3 years warranty.

All models are equipped with internal Full-LED light and reversible door, blind or glass (only in the FR- G versions) and with key lock. Models with a volume of 260 L are equipped with wheels.

Technical data

Volume

Temperature range

Resolution

Defrost function

Temperature variation in space

Gradient

Refrigreration

Door

Int. dimension

No. of shelves (standard/max)

Min. space between shelves

Max. load shelves

Ext. dimension

Weight

Voltage / Power

Warranty

TIN-FR110 / TIN-FR110G

110 L

+2.0 ... +8.0 °C

0.1 °C

Auto and manual

1.3 °C / 1.7 °C at 5 °C

1.3 °C / 1.7 °C at 5 °C

Dynamic (force ventilation)

closed / glass

500 x 570 x 420 mm

3/3

13 mm

15 kg

600 x 805 x 560 mm

50 kg

220-240 V / 120 W

3 years

TIN-FR260 / TIN-FR260G

260 L

+2.0 ... +8.0 °C

0.1 °C

Auto and manual

1.9 °C / 2.2 °C at 5 °C

1.5 °C / 2.6 °C at 5 °C

Dynamic (force ventilation)

closed / glass

500 x 1,290 x 420 mm

6/7

13 mm

15 kg

600 x 1,525 x 560 mm

75 kg

220-240 V / 120 W

3 Jahre

Technical data

Volume

Temperature range

Resolution

Defrost function

Temperature variation in space

Gradient

Refrigreration

Door

Int. dimension

No. of shelves (standard/max)

Min. space between shelves

Max. load shelves

Ext. dimension

Weight

Voltage / Power

Warranty

TIN-FZ110

110 L

-25 ... -10 °C

0.1 °C

manual

2.5 °C at 5 °C

1.5 °C at -20 °C

Dynamic (force ventilation)

closed

500 x 570 x 420 mm

3/3

13 mm

15 kg

600 x 805 x 560 mm

50 kg

220-240 V / 120 W

3 years

TIN-FZ260

260 l

-25 ... -10 °C

0.1 °C

manual

2,1 °C at 5 °C

1,4 °C at -20 °C

Static (natural convection)

closed

500 x 1.290 x 420 mm

6/7

13 mm

15 kg

600 x 1,525 x 560 mm

75 kg

220-240 V / 120 W

3 years
