Magnetic Stirrer
The magnetic stirrers from Phoenix Instrument offer the right device for all areas of daily laboratory routine.
You have the choice between digital or analogue devices. Both variants are available with or without heating function. Most of the stirrers with heating function have an integrated control function.
When the external temperature sensor PT-1000 is connected, the temperature in the sample can be very precisely adjusted and stirred.
The stirrer plates are either made of stainless steel, stainless steel with porcelain surface, ceramic or plastic.
The comprehensive extensive range of accessories extends from the stand rod and temperature sensor to protective covers and reactor attachments.
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Dimension
Protection class
Weight
Voltage • Power
RSM-ECO
1.5 L H2O
40 mm
1
120 mm
ABS
DC, brushless
300 - 2,000 rpm
analog
150 x 145 x 50 mm
IP 21
0.3 kg
100 - 240 V • 7.2 W
Magnetic Stirrer RSM-ECO
• analog magnetic stirrer
• stepless speed regulation from 300 to 2,000 rpm
• chemical resistant surface
• compact, sealed housing
• silent, vibration free use
• maintenance-free motor
• includes holder for pH-electrodes
Magnetic Stirrer RSM-10A
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Dimension
Protection class
Weight
Voltage • Power
RSM-10A
3 L H2O
50 mm
1
135 mm
ABS
DC, brushless
50 - 1,500
analog
155 x 215 x 75 mm
IP 41
0.9 kg
100-240 V • 15 W
• analog Magnetic stirrer
• compact construction
• sealed housing (IP42)
• Screw mount for holder

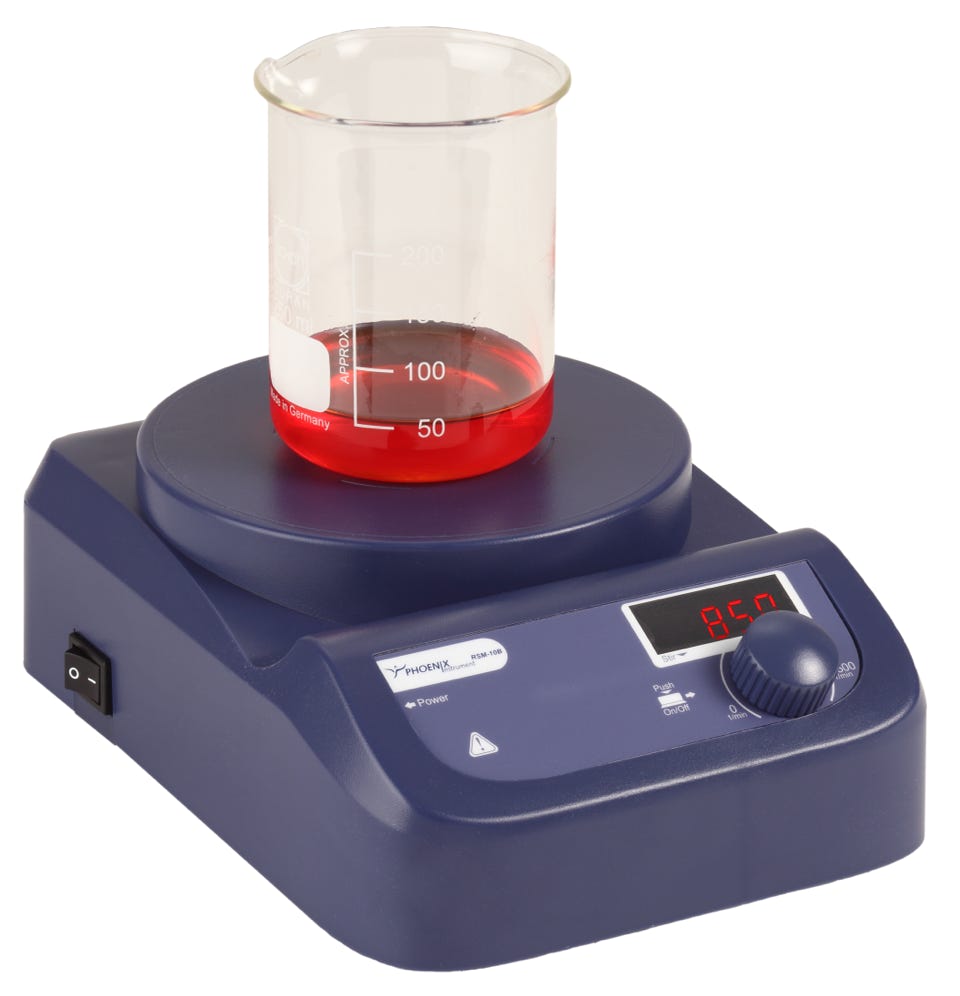

Magnetic Stirrer RSM-10B
• digital Magnetic stirrer
• compact construction
• sealed housing (IP42)
• Screw mount for holder
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Dimension
Protection class
Weight
Voltage • Power
RSM-10B
3 L H2O
50 mm
1
135 mm
ABS
DC, brushless
200 - 1,500
digital
155 x 215 x 75 mm
IP 41
0.9 kg
100-240 V • 10 W

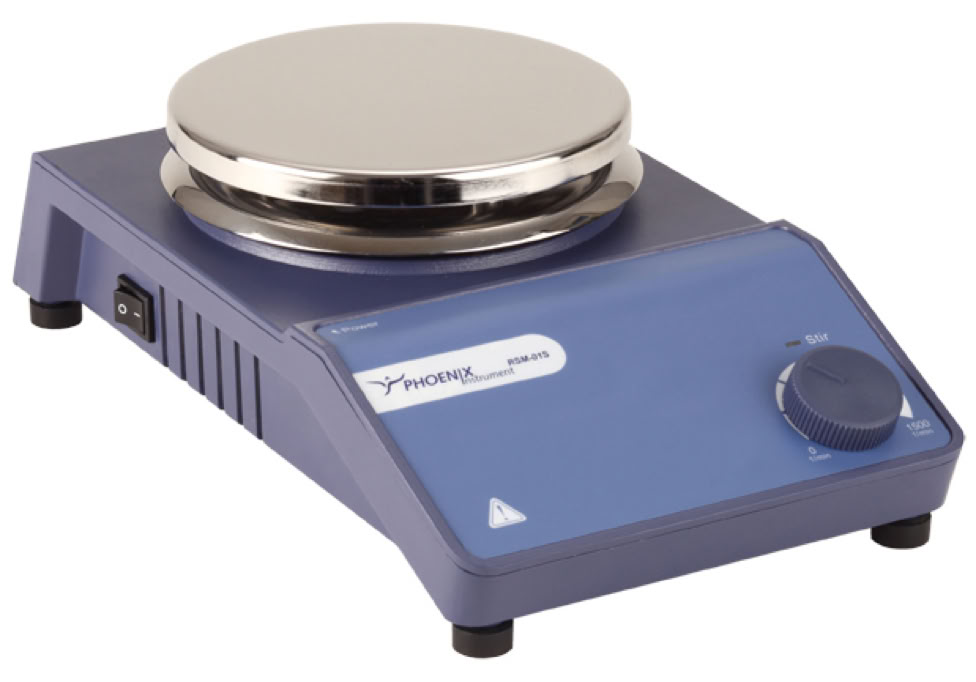

Magnetic Stirrer RSM-01S
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Dimension
Protection class
Weight
Voltage • Power
RSM-01S
20 L H2O
80 mm
1
135 mm
Stainless steel
DC, brushless
50 - 1,500
analog
160 x 280 x 85 mm
IP 42
2.8 kg
100-240 V •30 W
• Typical magnetic stirrer in a modern design
• sturdy metal housing IP 42
• high stirring power and volume (20 L)
• Screw mount for holder
Magnetic Stirrer with heating function RSM-01HS and RSM 01HP
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Temperature range
Temperature adjustment
Dimension
Protection class
Weight
Voltage • Power
RSM-01HS
20 L H2O
80 mm
1
135 mm
Stainless steel
DC, brushless
50 - 1,500
analog
RT+5 to 340 °C
analog
160 x 280 x 85 mm
IP 42
2.8 kg
200-240 V • 550 W
RSM-01HP
20 L H2O
80 mm
1
135 mm
Stainless steel with porcelain surface
DC, brushless
50 - 1,500
analog
RT+5 to 340 °C
analog
160 x 280 x 85 mm
IP 42
2.8 kg
200-240 V • 550 W
• classic, analogue magnetic stirrer
• stirring plate in stainless steel or covered with porcelain
• sturdy design (metal housing, IP 42)
• high stirring volume (20 L)
• Screw mount for holder
Magnetic Stirrer with heating function RSM-02HS+ and RSM-02HP+
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Temperature range
Temperature adjustment
RS-232 Interface
Dimension
Protection class
Weight
Voltage • Power
RSM-02HS+
20 L H2O
80 mm
1
135 mm
Stainless steel
DC, brushless
100 - 1,500
digital
RT+5 to 340 °C
digital
yes
60 x 280 x 85 mm
IP 42
2.8 kg
200-240 V • 530 W
RSM-02HP+
20 L H2O
80 mm
1
135 mm
Stainless steel with porcelain surface
DC, brushless
100 - 1,500
digital
RT+5 to 340 °C
digital
yes
160 x 280 x 85 mm
IP 42
2.8 kg
200-240 V • 530 W
• magnetic stirrer of the latest generation
• connector for PT-1000, integrated control function
• digital adjustment with backlit Display
• RS 232 to control the stirrer and to transfer data
• indicator for hot surface, even when stirrer is shut-off
• comprehensive range of accessories
• high stirring volume (20 L)
• Screw mount for holder
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Temperature range
Temperature adjustment
Dimension
Protection class
Weight
Voltage • Power
Magnetic Stirrer with heating function RSM-04H
• analog Magnetic stirrer with integrated control function
• Temperature sensor PT-1000 included
• sturdy full metal housing
• backlit digital display or LED
• glass ceramic hotplate (180 x 180 mm)
• hot plate warning, even when the stirrer is shut-off
RSM-04H
10 L H2O
80 mm
1
184 x 184 mm
Glas ceramic
DC, brushless
100 - 1,500
digital
RT +5 to 550 °C
analog
215 x 340 x 110 mm
IP 21
4.6 kg
200-240 V • 1,050 W
Magnetic Stirrer with heating function RSM-05H
• digital Magnetic stirrer with integrated control function
• temperature sensor PT-1000 included
• sturdy full metal housing with large glass ceramic hot plate (180x180mm)
• hot plate warning, even when the stirrer is shut-off
• high stirring volume (20 L)
Technical data
Stirring volume
Max. stirring bar length
Stirring points
Plate dimension ø
Material plate
Motor
Speed
Adjustment speed
Temperature range
Temperature adjustment
RS-232 interface
Dimension
Protection class
Weight
Voltage • Power
RSM-05H
20 L H2O
80 mm
1
184 x 184 mm
Glass ceramic
DC, brushless
100 - 1,500 rpm
digital
RT+5 bis 550 °C
digital
yes
215 x 340 x 110 mm
IP 41
4.4 kg
200-240 V • 1,050 W

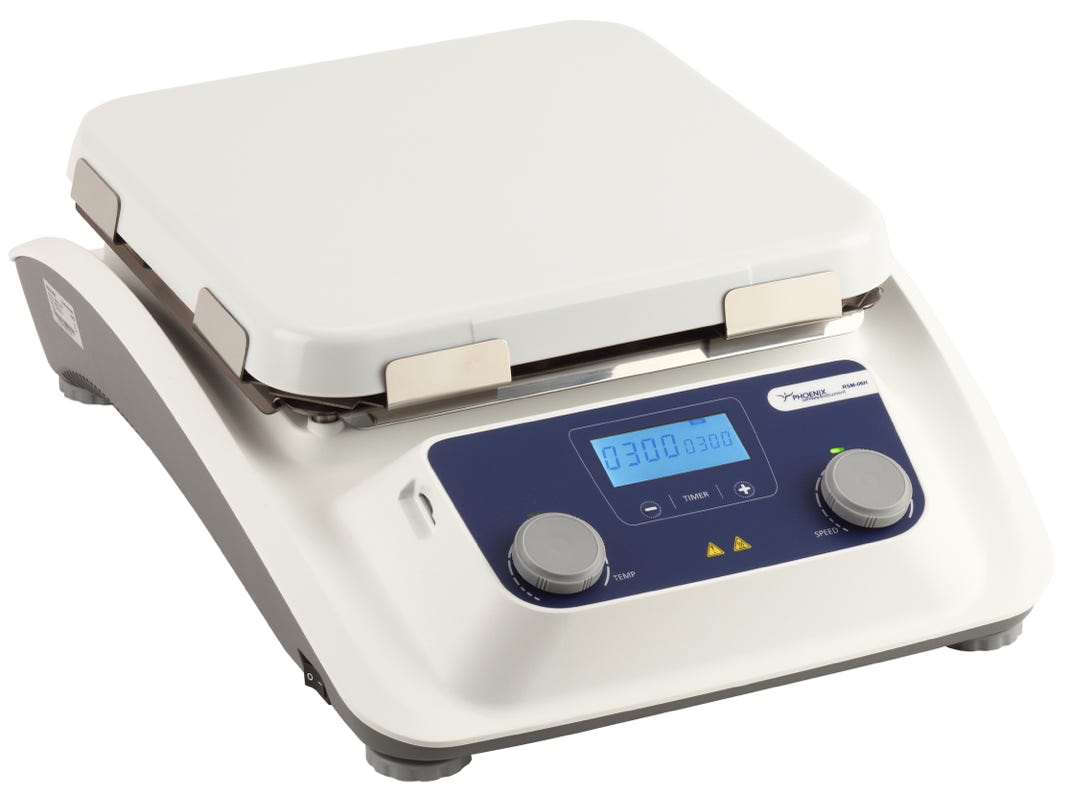

Magnetic Stirrer with heating function RSM-06H
• large glass ceramic plate for excellent chemical
resistant performance and efficient heat transfer
• up to 30 L stirring volume, Powerful brushless motor
• LCD display for precise monitoring of speed
and temperature
• connector for external temperature sensor PT-1000
• digital speed control of 100 - 1,500 rpm
• max. heating plate temperature 500 ℃
• hotplate warning even when the stirrer is off
• data connector: SD card records instrument‘s
running data in real time
• timing function: set running time
• high stirring volume (30 L)
Technical data
Stirring volume
Speed
Temperature
Power
Stirring points
Plate dimension
Material plate
Motor
Display
Interface
Max. stirring bar length
Connector for temp. sensor
Safety Temperature
Power
Dimension
Protection class acc. EN60529
Voltage • Frequency
RSM-06H
30 L H₂O
100 - 1,500
RT+5 bis 500 °C
1,350 W
1
254 mm x 254 mm
Glass ceramic
DC, brushless
LCD
SD-Card
80 mm
yes
540 °C
1,400 W
330 x 425 x 140 mm
IP 21
200 - 240 VAC • 50/60 Hz
Technical data
Stirring volume
Speed
Temperature
Heating power
Temp. accuracy
Plate dimension ø
Plate material
Motor
Display
Max. stirring bar length
Connector for temp. sensor
Safety Temperature
Dimension
Protection class acc. EN60529
Voltage • Frequency
Power
Magnetic Stirrer with Heating Function RSM-10 HS / 10 HP
RSM-10HS
3 L H2O
200 - 1,500 rpm
RT+5 to 280 °C
500 W
2 °C
135 mm
Stainless steel
DC, brushless
LED
50 mm
yes
320 °C
155 x 215 x100 mm
IP 21
200 - 240 • 50/60 Hz
515 W
RSM-10HP
3 L H2O
200 - 1,500 rpm
RT+5 to 280 °C
500 W
2 °C
135 mm
Stainless steel with porcelain surface
DC, brushless
LED
50 mm
yes
320 °C
155 x 215 x100 mm
IP 21
200 - 240 • 50/60 Hz
515 W
• LED-Display for accurate regulation of speed and temperature
• digital controled speed and temperature
• indicator for hot surface, even when stirrer is shut-off
• connector for PT-1000
• hotplate made of stainless steel or with porcelain surface
• compact construction, sealed housing (IP42)
Technical data
Stirring volume
Speed
Temperature range
Heating power
Temp. accuracy
Plate dimension
Plate material
Motor
Display
Max. stirring bar length
Connector for temp. sensor
Safety Temperature
Dimension
Protection class acc. EN60529
Safety Temperature
Voltage • Frequency
RSM-14HP
5 L H2O
200 - 1,500 rpm
RT+5 to 380 °C
500 W
1 °C
140 x 140 mm
Aluminum with porcelain surface
DC, brushless
LED
50 mm
yes
510 W
180 x 320 x 108 mm
IP 21
420 °C
200 - 240 VAC • 50/60 Hz
Magnetic Stirrer with heating function RSM-14HP
• LCD-Display for accurate regulation and digital control
of speed and temperature
• indicator for hot surface, even when the stirrer is shut-off
• connector for PT-1000
• hotplate made of Aluminum
• integrated temperature control function
• compact construction, sealed housing (IP42)
4 Place Magnetic Stirrer with heating function RSM-03-4KH
• digital 4-position magnetic stirrer with integrated controller function
• connection for external PT-1000
• each stirring point can be controlled separately
• temperature sensors and columns are included in delivery
• hotplate made of stainless steel with porcelain surface
• hotplate warning even when the stirrer is turned off
• maintenance-free, brushless DC Motor
Technical data
Stirring points
Stirring volume
Speed
Temperature range
Heating power
Temp. accuracy
Plate dimension ø
Plate material
Motor
Display
Max. stirring bar length
Connector for temp. sensor
Safety Temperature
Protection class acc. EN60529
Dimension
Weight
Voltage • Frequency
Power
RSM-03-4KH
4
4 x 10 L H2O
200 - 1,500 rpm
RT+5 bis 340 °C
4 x 500 W
1 °C
4 x 135 mm
Aluminum with porcelain surface
DC, brushless
digital
40 mm
yes
420 °C
IP 21
700 x 320 x 130 mm
9.5 kg
200 - 240 VAC • 50/60 Hz
4 x 515 W

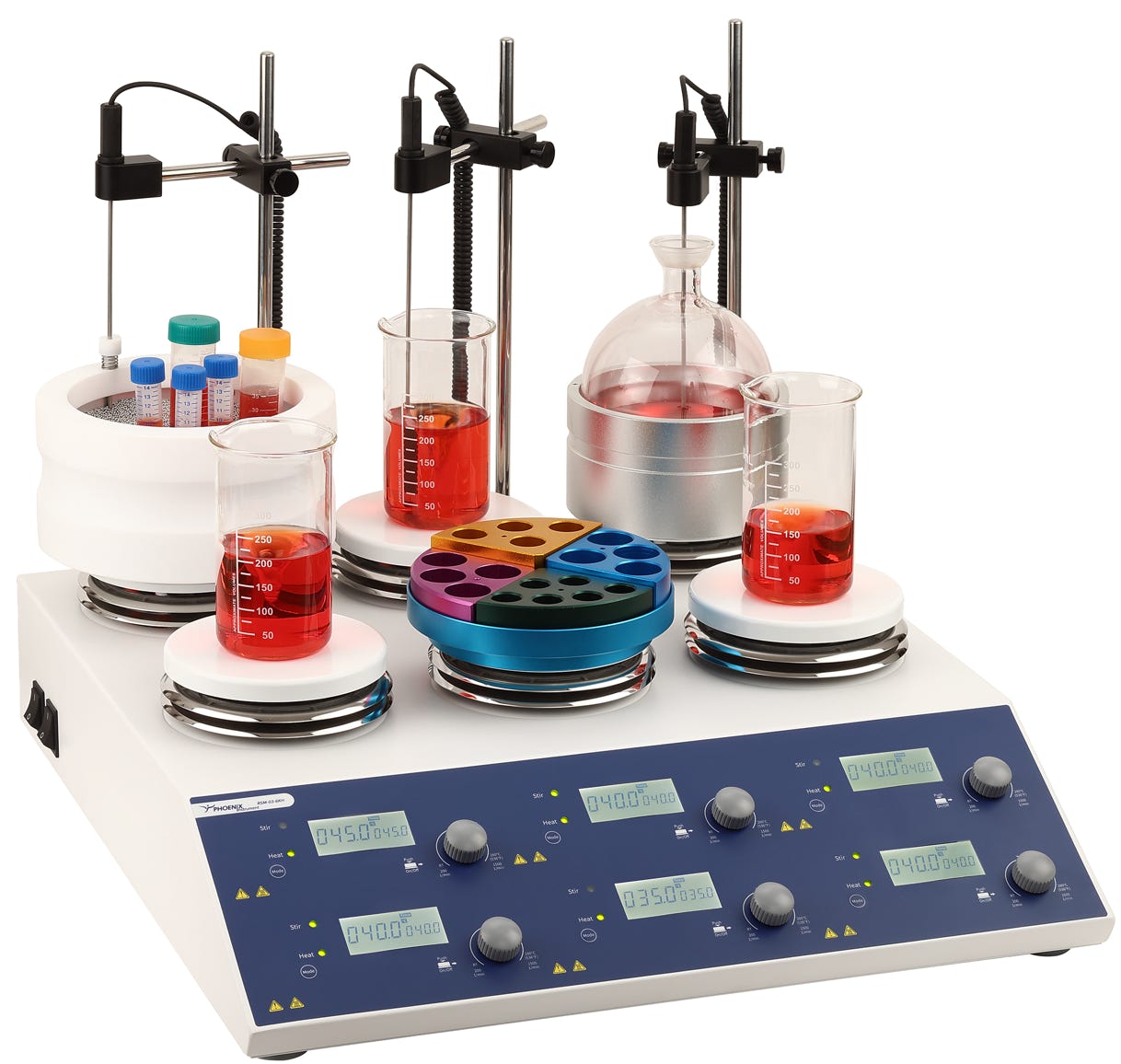

6-Place Stierer with Heating RSM-03-6KH
The 6-place magnetic stirrer with heating function is designed for parallel experiment and multiple parameter
optimization, thus can serve as handy tools for Kjeldahl nitrogen determination, Soxhlet extraction and parallel
synthesis, etc.
It is the ideal choice for test laboratories in food, animal feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum products, resin and plastic sectors. The user can handle various tests at the same time with stable performance, good reproducibility, high accuracy and easy operation.
• Each stirring point can be controlled separately
• LCD displays show the current temperatures or speeds
• PID controller ensures precise and even heating process
• Maintenance-free, brushless DC motor
• external temperature sensor (PT1000) with an accuracy of 1 ℃
• Stainless steel worktop with ceramic coating provides good chemical resistant performance
• Stands and temperature probe are included in the delivery
• Compatible with various heating block or reaction vessels for many different application
• Two independent safety circuits are monitoring the instrument.
• Space-saving design with 6 places integrated in one instrument
New 2024
Technical Data
Voltage • Frequency
Power
Stirring points
Max. stirring volume (Water)
Max. length of stirring bar
Motortype
Speed Range / Accuracy
Display
Plate dimension (Ø)
Temperature range
Safety temperature
Temperature Sensor External
Control Accuracy (PT-1000)
Weight
Ambient Temperature
Relative Humidity
Safety class acc. DIN 60529
Dimension (W x D x H)
RSM-03-6KH
100 - 240 V • 50/60 Hz
6 x 600 W w Heating; 6 x 5 W w/o Heating
6
6 x 3 l
40 mm
Brushless DC-motor
200 - 1,500 / 20 rpm
LCD
134 mm
RT - 280 °C, 1 °C Steps
420 °C
PT-1000
1 °C
12.7 kg
5 - 40 °C
80 %
IP 21
564 x 523 x 127 mm
Technical data
Stirring points
Stirring volume
Speed
Temperature range
Heating power
Plate dimension ø
Material plate
Motor
Display
Max. stirring bar length
Safety Temperature
Dimension
Protection class acc. EN60529
Voltage • Frequency
Power
Analog Multiposition Stirrer RSM-03-10K
• analog 10-place Magnetic stirrer
• stepless speed control from 50 to 1100 rpm
• stainless steel plate with silicone films, anti-slip and anti-corrosion
Multiposition Stirrer with heating function RSM-03-10KH
• additional with heating
RSM-03-10K
10
10 x 0.4 l H2O
50 - 1,100 rpm
-
-
180 x 450 mm
Stainless steel with
silicon film
DC, brushless
analog
40 mm
-
185 x 555 x 65 mm
IP 21
200 - 240 VAC • 50/60 Hz
20 W
RSM-03-10KH
10
10 x 0,4 l H2O
50 - 1,100 rpm
RT+5 to 120 °C
470 W
180 x 450 mm
Stainless steel with
silicon film
DC, brushless
analog
40 mm
140 °C
185 x 555 x 65 mm
IP 21
200 - 240 VAC • 50/60 Hz
490 W
15-Place Stirrer RSM-03-15K
Newly developed 15-place magnetic stirrer is designed for series tests under reproducible conditions with stable
performance, good reproducibility, high accuracy and easy operation.
New 2024
Technical Data
Voltage • Frequency
Power (Watt) 54
Stirring points 15
Max. stirring volume (Water)
Max. length of stirring bar
Motortype
Speed range / Accuracy
Display
Plate dimension
Timer function
Weight
Ambient Temperature Relative Humidity
Safety class acc. DIN 60529
Dimension (W x D x H)
• 15 stirring positions are divided into 3 independent groups and each group can be controlled respectively at
different speeds and time settings
• LCD displays show the current speeds and time
• Maintenance-free, brushless DC motor
• Aluminum laser engraving work plate surface, anti-abrasive, skid and corrosion proof
• Buzzer function - when the time countdown ends, the buzzer will remind the user by sound
RSM-03-10K
100 - 240 V • 50/60 Hz
54 W
15
15 x 0,4 l
40 mm
Brushless DC-motor
100 - 1,500 / 10 rpm
LCD
460 x 304 mm
1min - 99h 59min
9.2 kg
5 - 40 °C
80 %
IP 21
615 x 307 x 90 mm
Accessories Stirrer
RSM-E 100
RSM-E 110 RSM-E 120 RSM-E 130 RSM-E 140 RSM-E 150 RSM-E 160
RSM-E 165 RSM-E 166 RSM-E 167
RSM-E 170 RSM-E 172 RSM-E 174 RSM-E 176 RSM-E 178
RSM-E 200 RSM-E 205 RSM-E 210 RSM-E 215 RSM-E 220 RSM-E 225 RSM-E 230 RSM-E 235 RSM-E 240
RSM-E 310
RSM-E 320
RSM-E 320G
RSM-E 330 RSM-E 335
RSM-E 340 RSM-E 350 RSM-E 355
Carrier plate to be used for hotplate stainless steel (RSM-01/02HS)
Red quarter pie, 11-holes, Ø 15.2 mm, depth 19 mm, to be used with RSM-E 100/105
Purple quarter pie, 4-holes, Ø 28 mm, depth 24 mm, to be used with RSM-E 100/105
Blue quarter pie, 4-holes, Ø 28 mm, depth 30 mm, to be used with RSM-E 100/105
Black quarter pie, 4-holes, Ø 28 mm, depth 42.8 mm, to be used with RSM-E 100/105
Green quarter pie, 8-holes, Ø 17.75 mm, depth 25.5 mm, to be used with RSM-E 100/105
Golden quarter pie, 4-holes, Ø 21.6 mm, depth 31.7 mm, to be used with RSM-E 100/105
Aluminum alloy bead bath block 500 ml, with 500 ml beads for RSM-02HSP
Aluminum alloy bead bath block 1,000 ml, with 1,000 ml beads for RSM-02HSP
Aluminum alloy beads 1kg (500 ml)

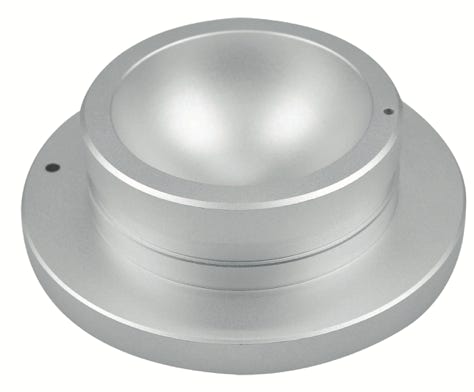

Reaction block for round flasks 50 ml
Reaction block for round flasks 100 ml
Reaction block for round flasks 250 ml
Reaction block for round flasks 500 ml
Reaction block for round flasks 1,000 ml
Stirrer bar, 10 x 6 mm, 1 pc
Stirrer bar, 15 x 8 mm, 1 pc
Stirrer bar, 20 x 8 mm, 1 pc
Stirrer bar, 25 x 8 mm, 1 pc
Stirrer bar, 30 x 8 mm, 1 pc
Stirrer bar, 40 x 8 mm, 1 pc
Stirrer bar, 50 x 8 mm, 1 pc
Stirrer bar, 65 x 8 mm, 1 pc
Stirrer bar, 80 x 13 mm, 1 pc
Stirrer bar remover
Reaction block
Temperature sensor PT-1000 for RSM-02H, -03 -04, -05, 06, -10
Temperature sensor PT-1000, for RSM-02H, -03 -04, -05, 06, -10, glass coated

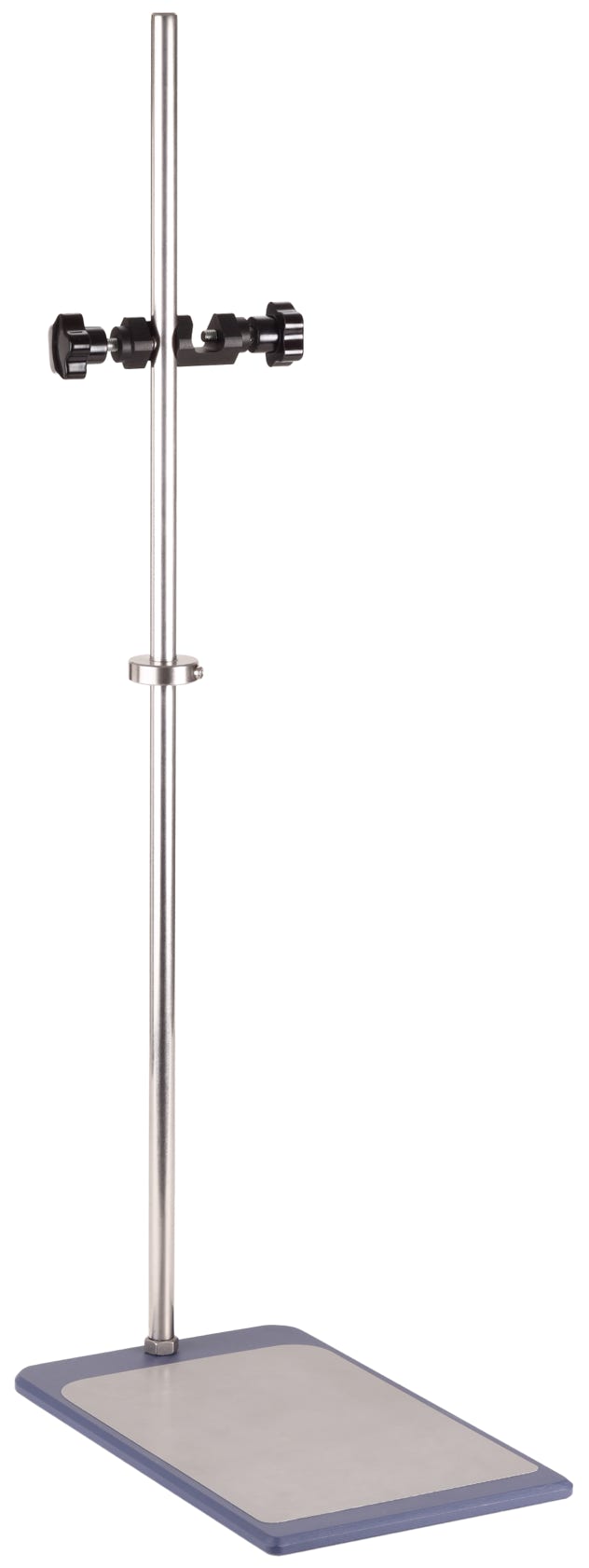

Stand holder for PT-1000 for RSM 01/02/04/05
Stand holder for PT-1000 for RSM-10
Protection cover for RSM01/02 without hotplate
Protection cover for RSM01/02 with hotplate
Protection cover for RSM10 with hotplate

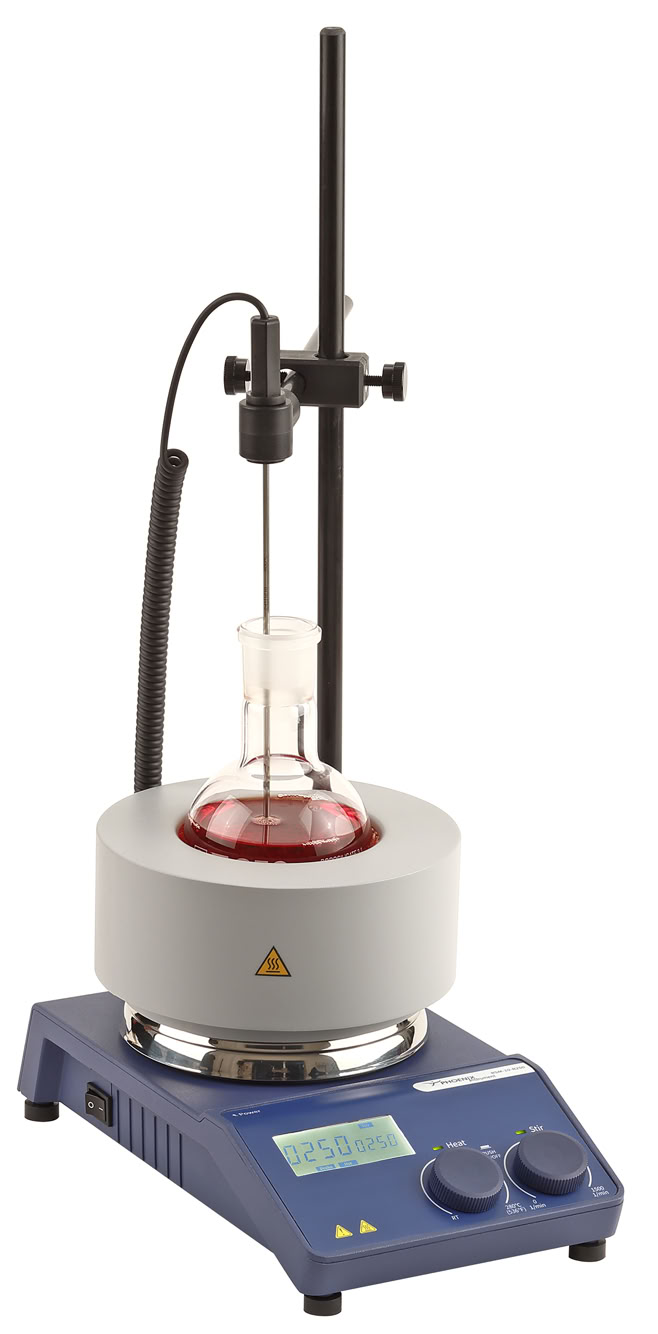

Bath block

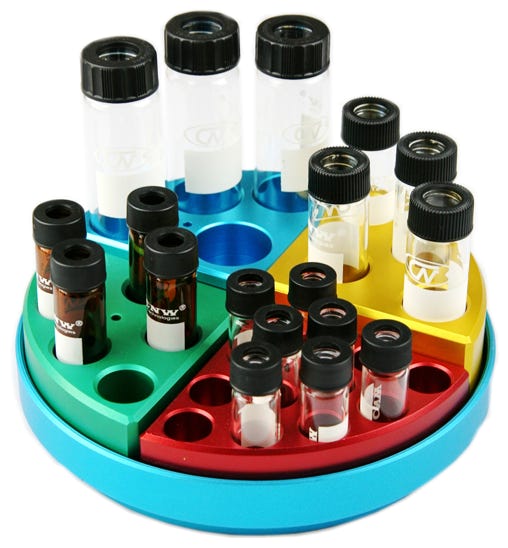

Quarter pies on carrier plate
Shaker
Whether gentle agitation, horizontal or orbital shaking or the intensive mixing of media, the laboratory shakers and mixers from Phoenix Instrument offer the right device for all application and areas of daily laboratory routine.
Thanks to the extensive range of accessories, the shakers and mixers can be configured individually for every task.
Digital Orbital Shaker RS-OS 6 and RS-OS 6M
Newly developed compact shaker, designed for time-dependent and low speed-sensitive shaking applications
such as ELISA washes, enzyme immunoassays, protein synthesis, hybridization staining/destaining gels, immune
precipitation and Western blots, cell culture, pharmaceutical profiling, etc.
• Double LED`s for separate display of speed and time
• Compact shaker with a max. capacity of 2 kg
• Continuous or timer operation mode.
• Including fix work plate (RS-OS6) or flexible work plate (RS-OS6M)
• Interchangeable attachments for various applications (RS-OS 6M only)
• Maintenance-free, brushless DC motor
• Easy operation
RS-OS 6
Second platform RSS-E170
not included
RS-OS 6M
Technical Data
Voltage
Power
Shaking Movement
Max. shaking weight
Speed
Timer
Adjustment Speed/Time
Dimension
Platform size
Protection class
Weight
RS-OS 6
100 - 240 V
20 W
Orbital
2 kg
40 - 200 rpm
1 min - 19 h 59 min
Digital
295 × 350 × 125 mm
268 x 268 mm
IP 21
3.1 kg
RS-OS 6M
100 - 240 V
20 W
Orbital
2 kg
40 - 200 rpm
1 min - 19 h 59 min
Digital
295 × 350 × 125 mm
268 x 268 mm
IP 21
3.1 kg
Digital Orbital and Linear Shaker RS-OS • RS-LS
• compact shaker with a maximum capacity of 2.5/ 7.5 kg
• backlit display for easy adjustment of time and speed
• fix stand with anti-slipping feet
• adjustable safety speed
• RS 232-interface to control the shaker and
to transfer data
• comprehensive range of accessories
Technical data
Shaking movement
Shaking diameter
Max. load
Speed
Timer
Operation
Display speed / time
Adjustment speed / time
RS-232
Dimension
Dimension plattform
Protection class
Voltage / Frequency
RS-OS 10
orbital
4 mm
2.5 kg
100 - 800
yes, 1 - 1,199 min
Timer / continous
LCD
digital
yes
300 x 340 x 100 mm
240 x 240 mm
IP 21
100 - 240 VAC / 50/60 Hz

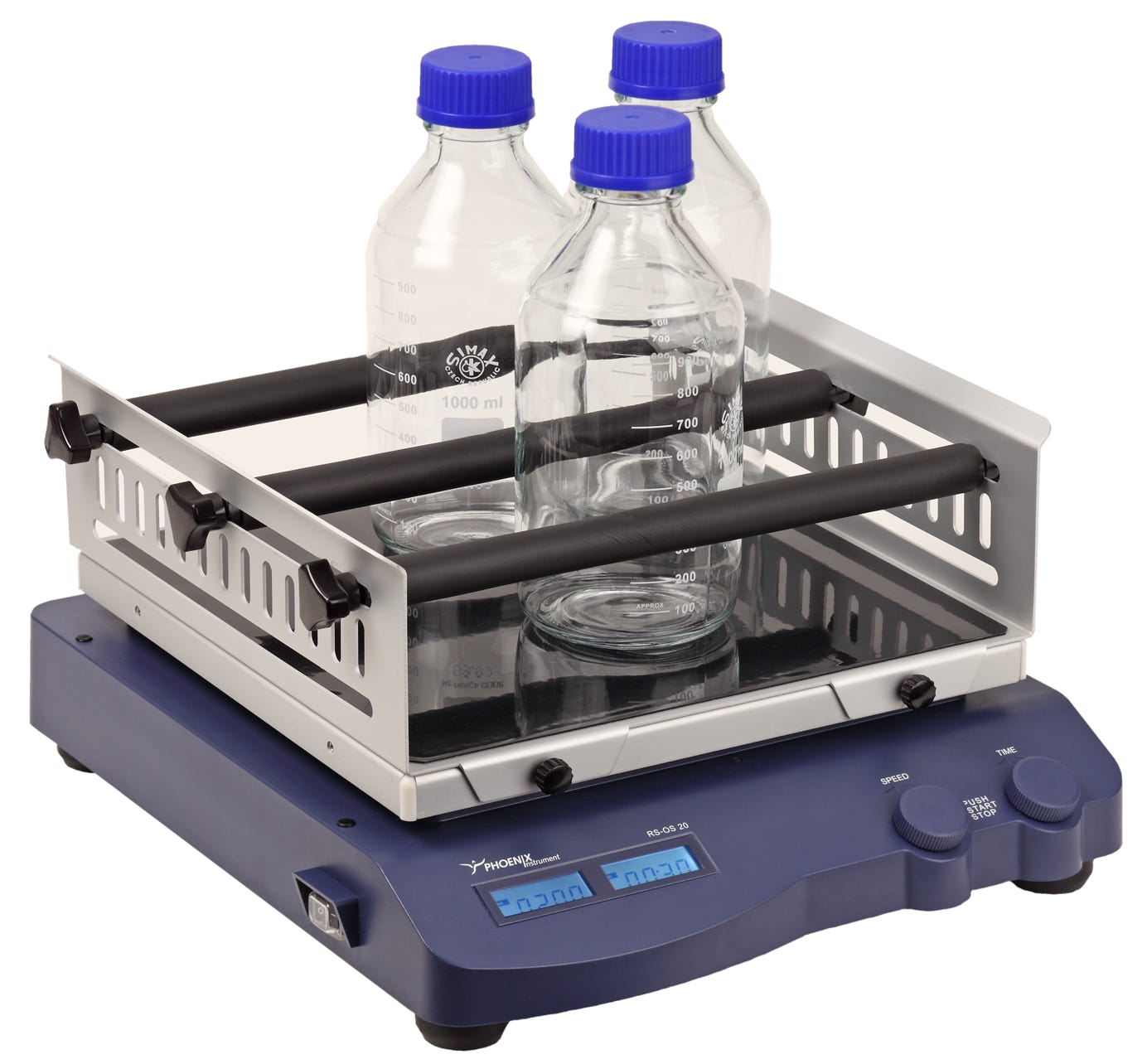

RS-OS 20
orbital
10 mm
7.5 kg
100 - 500
yes, 1 - 1,199 min
Timer / continous
LCD
digital
yes
370 x 420 x 100 mm
320 x 320 mm
IP 21
100 - 240 VAC / 50/60 Hz
Technical data
Shaking movement
Shaking diameter
Max. load
Speed
Timer
Operation
Display speed / time
Adjustment speed / time
RS-232
Dimension
Dimension plattform
Protection class
Voltage / Frequency
RS-LS 10
linear
4 mm
2.5 kg
100 - 800
yes, 1 - 1,199 min
Timer / continous
LCD
digital
yes
300 x 340 x100 mm
240 x 240 mm
IP 21
100 - 240 VAC / 50/60 Hz
RS-LS 20
linear
10 mm
7.5 kg
100 - 500
yes, 1 - 1,199 min
Timer / continous
LCD
digital
yes
370 x 420 x 100 mm
320 x 320 mm
IP 21
100 - 240 VAC / 50/60 Hz
Rocking Shaker RS-RS 6 and 3D-Shaker RS-DS 6
Newly developed compact shaker, designed for time-dependent and low speed-sensitive shaking applications such as ELISA washes, enzyme immunoassays, protein synthesis, hybridization staining/destaining gels, immune precipitation and Western blots, cell culture, pharmaceutical profiling, etc.
• Double LED`s for separate display of speed and time
• compact shaker with a max. capacity of 2 kg
• Continuous or timer operation mode
• Fixed work plate
• Maintenance-free, brushless DC motor
• Easy operation
New 2024
RS-RS 6
RS-DS 6
Technical Data
Voltage
Power
Shaking movement
Shaking Angle
Max. shaking weight
Speed
Timer
Adjustment Speed / Time
Dimension
Platform size
Protection class
Weight
RS-RS 6
100 - 240 V
0 20 W
Sea-Saw
7 °
2 kg
10 - 80 rpm
1 min - 19 h 59 min
Digital
295 × 350 × 125 mm
268 x 268 mm
IP 21
3.1 kg
RS-DS 6
100 - 240 V
0 20 W
3D—Motion
10 °
2 kg
10 - 80 rpm
1 min - 19 h 59 min
Digital
295 × 350 × 170 mm
268 x 268 mm
IP 21
3.7 kg

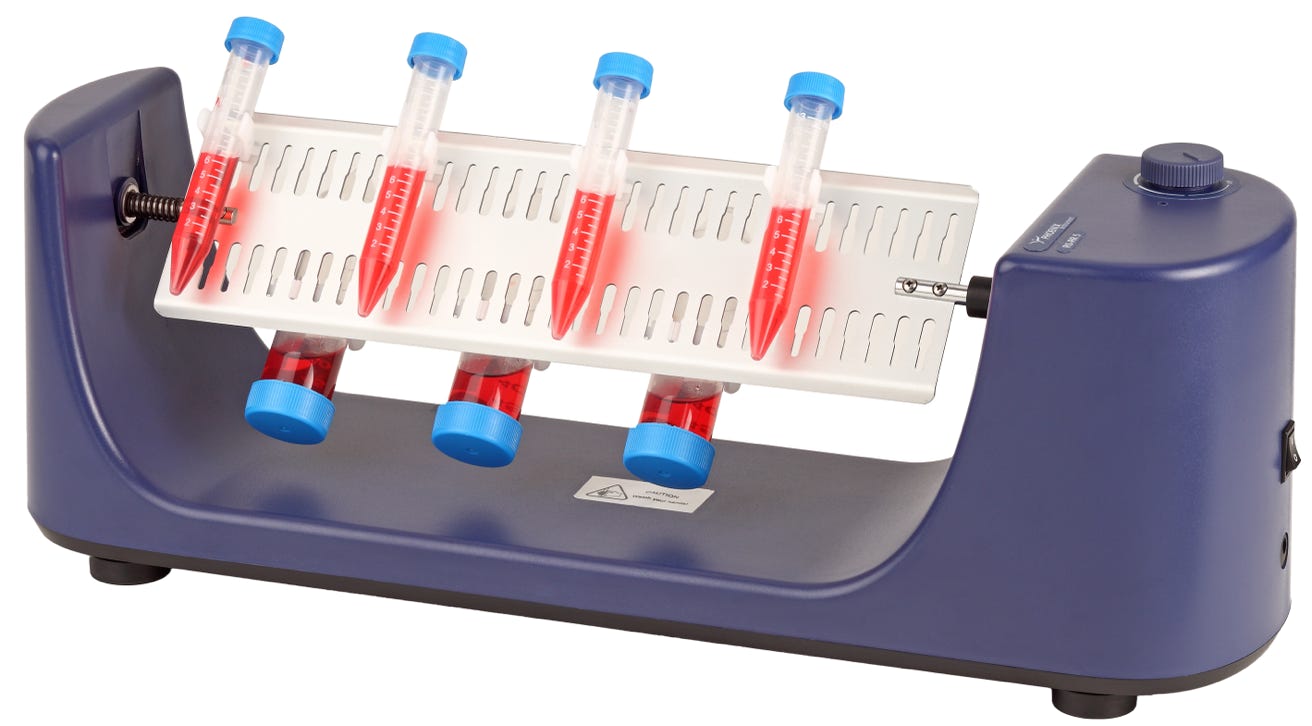

Digital Sea-Saw Shaker RS-RR 10
Digital 3D Shaker RS-RD 10
RS-RR 10
• gentle sample mixing
• sturdy construction
• backlit display
• simultaneous display of speed and time
• fix stand with anti-slipping feet
• attachment included
• comprehensive range of accessories
RS-RD 10
Technical data
Shaking movement
Shaking angle
Speed
Display
Timer
Operation
Max. shaking weight
Dimension
Dimension plattform
Ambient temperature
Protection class
Voltage • Frequency
RS-RR 10
Sea-Saw
±9 °
10 - 70 rpm
LCD
yes, 1 - 1,199 min
Timer / continous
10 kg
370 x 420 x 106 mm
320 x 320 mm
5 - 40 °C
IP 21
100 - 240 VAC • 50/60 Hz
RS-RD 10
3D orbital
±9 °
10 - 70 rpm
LCD
yes, 1 - 1,199 min
Timer / continous
5 kg
370 x 420 x 200 mm
320 x 320 mm
5 - 40 °C
IP 21
100 - 240 VAC • 50/60 Hz
RSS-E 120 RSS-E 125 RSS-E 130 RSS-E 135 RSS-E 140
RSS-E 145 RSS-E 245
RSS-E 180 RSS-E 181
RSS-E 250 RSS-E 251 RSS-E 252
RSS-E 253 RSS-E 254 RSS-E 255
RSS-E 100
RSS-E 105
RSS-E 110
RSS-E 115
RSS-E 160
RSS-E 165
RSS-E 168
RSS-E 200
RSS-E 205
RSS-E 210
RSS-E 220
Accessories Shaker
RSS-E 105/205
RSS-E 100/200
Fixing clip for Erlenmeyer flask 25ml volume
Fixing clip for Erlenmeyer flask 50ml volume
Fixing clip for Erlenmeyer flask 100ml volume
Fixing clip for Erlenmeyer flask 200/250ml volume
Fixing clip for Erlenmeyer flask 500ml volume
Clamping rolls for RSS-E 100
Clamping rolls for RSS-E 200
Silikonfilm for dish 10 x 5 - 15 ml Tubes
Silikonfilm for dish RSS-E 115 for 4 x 50 ml Tubes
Erlenmeyer flask with baffle 100 ml volume
Erlenmeyer flask with baffle 250 ml volume
Erlenmeyer flask with baffle 500 ml volume
Cultur flask with baffle 100 ml volume
Cultur flask with baffle 250 ml volume
Cultur flask with baffle 500 ml volume
Universal attachment with clamping rolls OS/LS 5, 10, RS-RS 5 and RS-DS 5
Base plate for OS/LS 5, 10, RS-RS 5, RS-DS 5 to be used with Erlenmeyer fixing clips
Universal attachment with vertical adjustable clamping rolls OS/LS 10
Dish attachment for OS/LS 5, 10, RS-RS 5 and RS-DS 5, incl. fixing belts
Dish attachment for OS/LS 5, 10, RS-RS 5 and RS-DS 5, 20 x 30 cm, incl. fixing belts
Dish attachment for OS/LS 5, 10, RS-RS 5 and RS-DS 5, 28 x 28 cm, incl. fixing belts
Connector to use 2 disk modules / 4 pcs
Universal attachment with clamping rolls OS/LS 20
Base plate for OS/LS 20 to be used with Erlenmeyer fixing clips
Universal attachment with vertical adjustable clamping rolls OS/LS 20
Dish for OS/LS 20 incl. fixing belts
Dish RSS-E 220
Fixing clip for Erlenmeyer flasks
Maximum load for attatchment RSS-E 105/205 with fixing clips for Erlenmeyer flasks
Fixing clips
RSS-E 105
RSS-E 205
25 ml
18
28
50 ml
18
28
100 ml
9 (8)*
16
250 ml
6 (8)*
9 (12)*
500 ml
4 (5)*
9
* Erlenmeyer flasks overlapping

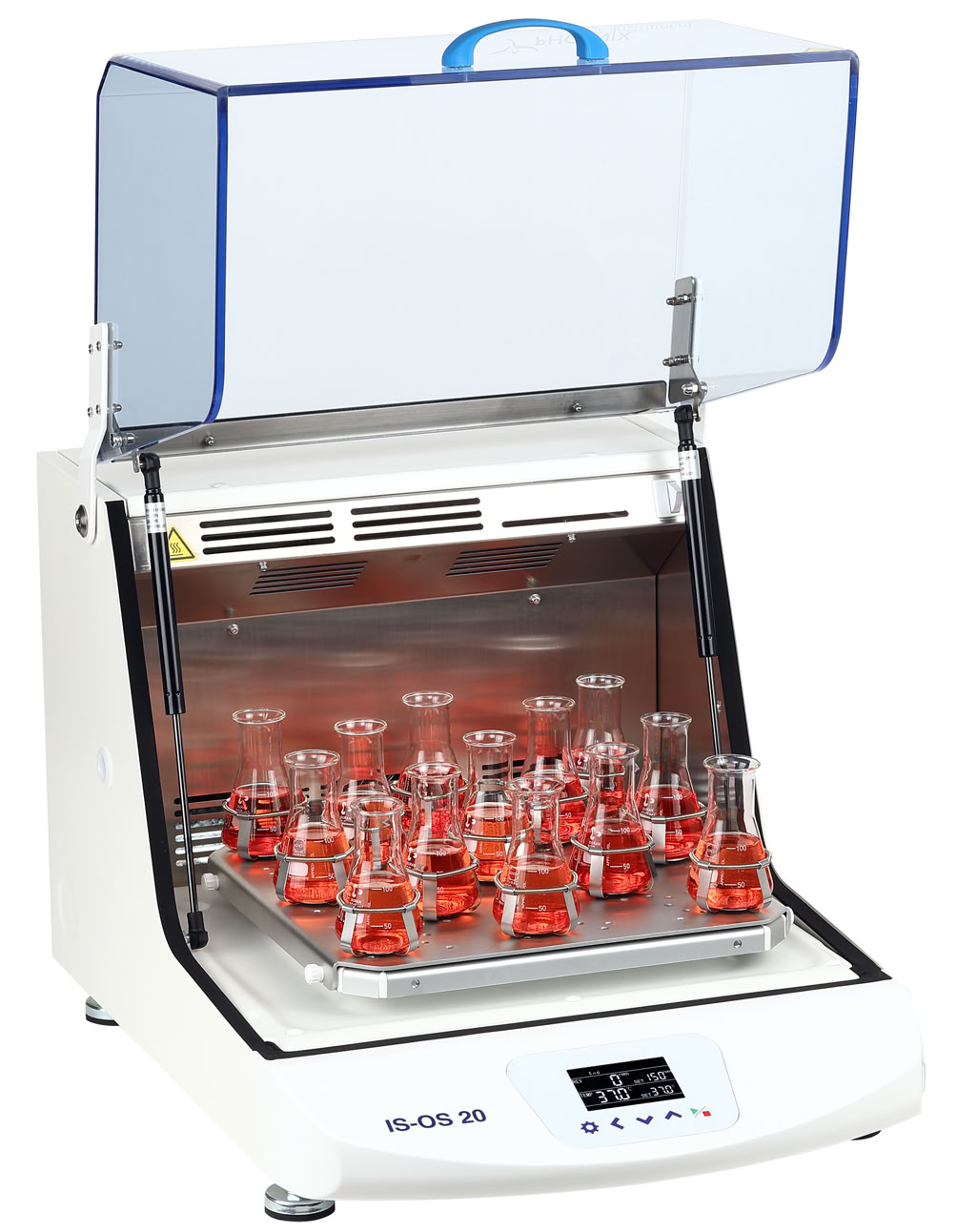

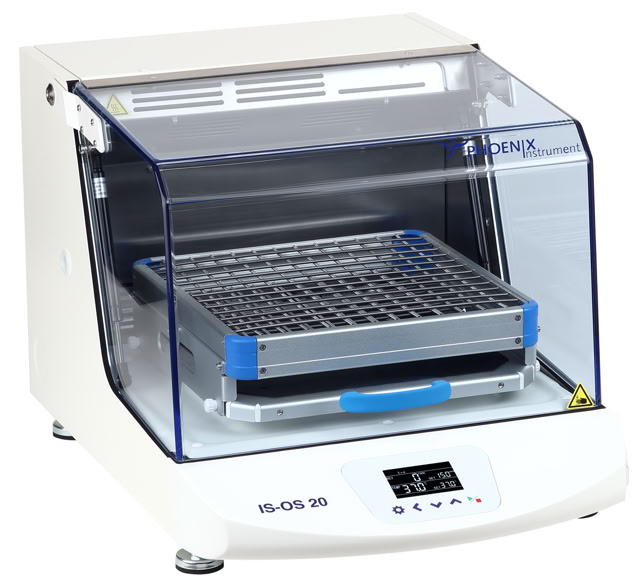

Incubation Shaker IS-OS 20
• forced recirculation
• spring-loaded shelf included
• adjustable safety temperature
• cover made of 8 mm acrylic glass
• extensive range of accessories
Technical data
Temperature range / resolution
Temperature homogeneity at 37 °C
Temperature variation at 37 °C
Operation
Circulation air
Speed
Amplitude of platform movement
Capacity
Dimension plattform
Power
Dimension
Material of hood / thickness
Weight
Adjustable safety temperature
Recognition open hood
Voltage • Frequency
IS-OS 20
RT+5 … 60 °C / 0.1 °C
± 0.5 °C
± 0.1 °C
Timer / continous
forced
40 to 300 rpm
20 mm
7 x 500 ml Erlenmeyer Flasks
4 x 1,000 ml Erlenmeyer Flasks
320 x 320 mm
500 W
500 x 610 x 470 mm
Plexiglass / 8 mm
40 kg
yes
yes
230 VAC • 50/60 Hz
Incubation Shaker IS-OS 30
• forced recirculation
• spring-loaded shelf included
• adjustable safety temperature
• cover made of 8 mm acrylic glass
• extensive range of accessories
Technical data
Temperature range / resolution
Temperature homogeneity at 37 °C
Temperature variation at 37 °C
Operation
Circulation air
Speed
Amplitude of platform movement
Capacity
Dimension plattform
Power
Dimension
Material of hood / thickness
Weight
Adjustable safety temperature
Recognition open hood
Voltage • Frequency
IS-OS 30
4 to 60 °C / 0.1 °C
± 0.5 °C
± 0.1 °C
Timer / continous
forced
40 to 300 rpm
20 mm
12 x 500 ml Erlenmeyer Flasks
450 x 450 mm
1,300 W
610 x 950 x 540 mm
Plexiglass / 8 mm
90 kg
yes
yes
230 VAC • 50/60 Hz
12 Erlenmeyer Flasks 250 ml
25 50 ml Flacon Tubes
Max. load for the spring-loaded shelf
Max. load of base plate
49 Erlenmeyer Flasks 50 ml
36 Erlenmeyer Flasks 100 ml
18 Erlenmeyer Flasks 250 ml
16 Erlenmeyer Flasks 500 ml
9 Erlenmeyer Flasks 1,000 ml
4 Erlenmeyer Flasks 2,000 ml
Accessories for IS-OS 20 and IS-OS 30
ISS-E 200 ISS-E 205
ISS-E 220 ISS-E 300
ISS-E 305
ISS-E 320
ISS-E 130 ISS-E 135 ISS-E 140 ISS-E 145 ISS-E 150
Attachment with 4 clamping rolls for IS-OS20
Base plate to be used with fixing clips for IS-OS20
Dish attachment with non-slip mat for IS-OS20
Atachment with 4 clamping rolls for IS-OS30
Base plate to be used with fixing clips for IS-OS30
Dish attachment with non-slip mat for IS-OS30
Fxing clip for Erlenmeyer flask 100 ml volume
Fixing clip for Erlenmeyer flask 200/250 ml volume
Fixing clip for Erlenmeyer flask 500 ml volume
Fixing clip for Erlenmeyer flask 1,000 ml volume
Fixing clip for Erlenmeyer flask 2,000 ml volume
Max. assembling RS-RR 5 and RS-RD 5
Fixing clips
RS-RR 5
RS - RD 5

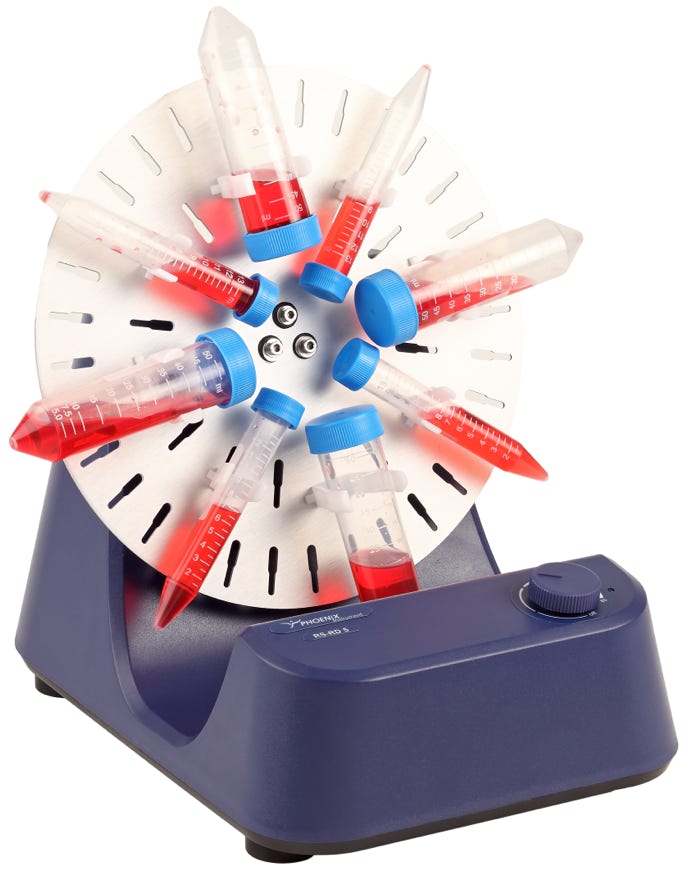

Analog Rotator RS-RR 5 and Disk-Mixer RS-RD 5
• variable speed
• compact construction
• adjustable feet
• easy to clean
• accessories for 3.5 / 2 ml, 15 ml and 50 ml tubes are included
1.5 / 2 ml
34
48
15 ml
20
8
50 ml
12
8
RS-RR 5
RS-RD 5
Technical data
Movement
Rotation angle
Speed
Operation
Adjustment speed
Dimension
Safety class
Power
Voltage • Frequency
RS-RR 5
Rotation
-
5 - 80 rpm
continous
analog
530 x 150 x 190 mm
IP 21
20 W
100 - 240 V • 50/60 Hz
RS-RD 5
Rotation Disk
Fix angle
5 - 80 rpm
continous
analog
220 x 300 x 310 mm
IP 21
20 W
100 - 240 V • 50/60 Hz

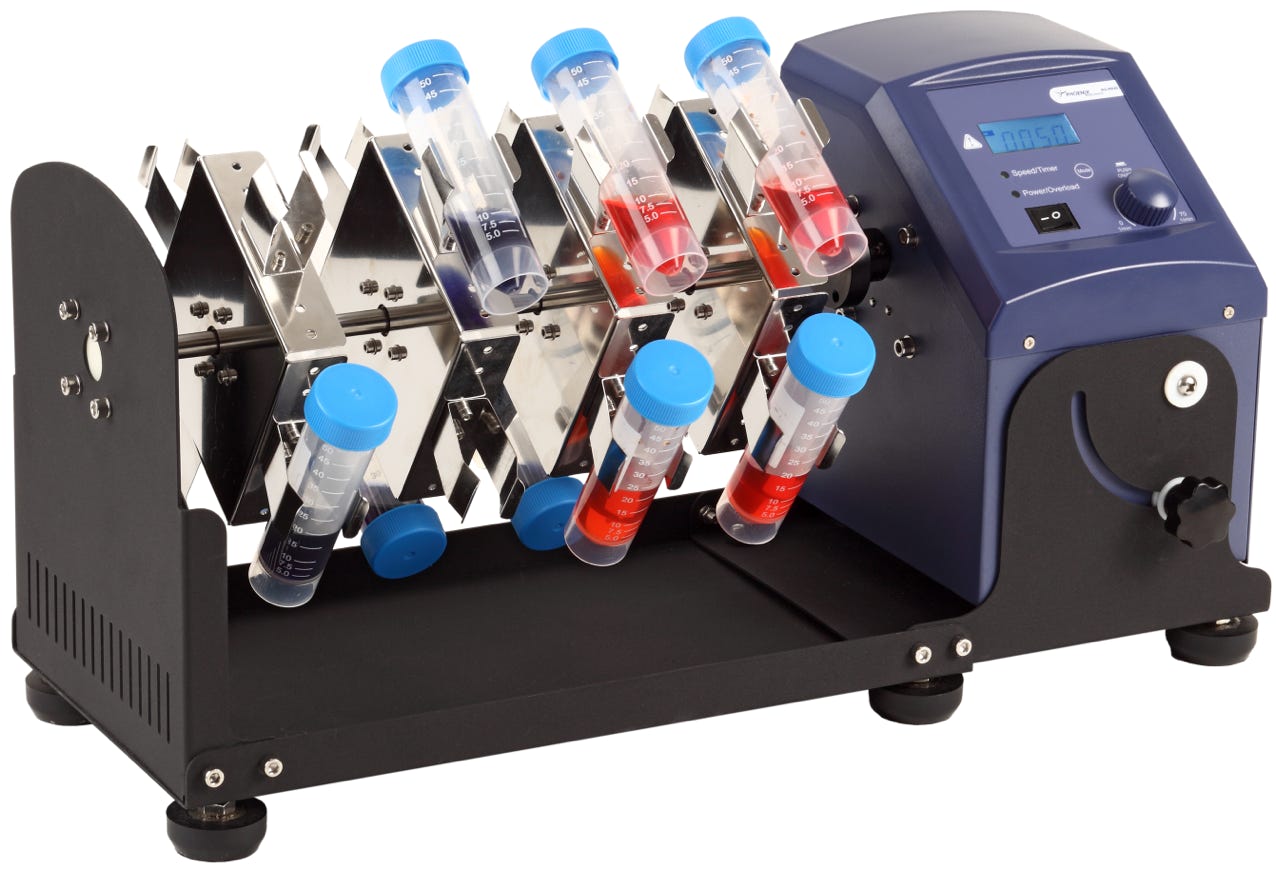

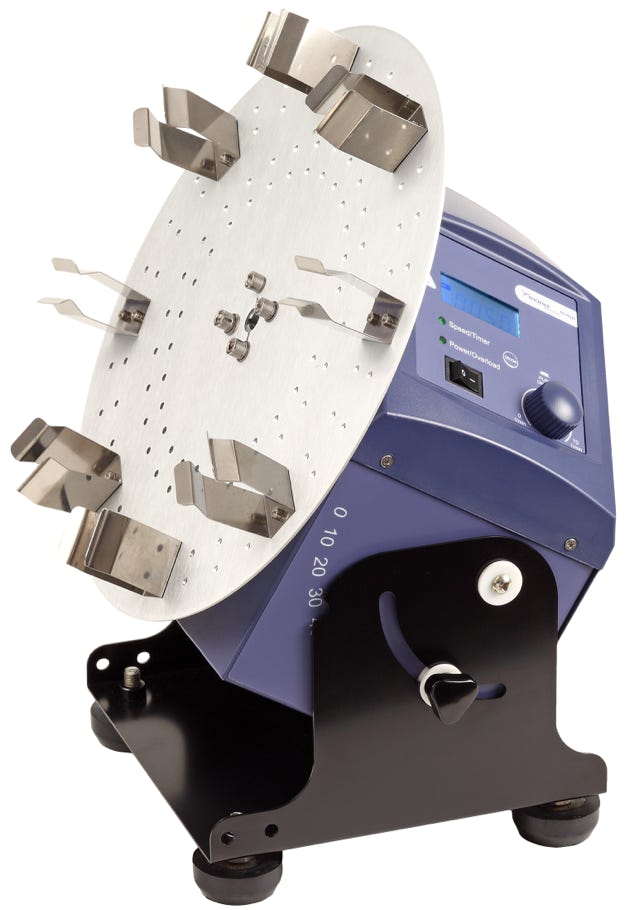

Digital Rotator RS-RR 20 and Digital Disk-Mixer RS-RD 20
• instrument will be supplied incl. tube holder (RS-RR20) or disk mixer (RS-RD 20)
• dual-Use - rotator RS-RR 20 can also be used as disk mixer
• fix stand with anti-slipping feet
• backlit display to adjust speed and time
• comprehensive range of accessories
RS-RR 20
RS-RD 20
Technical data
Movement
Rotation angle
Speed
Timer
Operation
Display speed / time
Adjustment speed / time
Dimension
Safety class
Power
Voltage • Frequency
RS-RR 20
Rotation
-
10 - 70 rpm
yes
Timer / continous
LCD / LCD
digital / digital
510 x 190 x 260 mm
IP 21
40 W
100 - 240 V • 50/60 Hz
RS-RD 20
Rotation Disk
0 - 90 °
10 - 70 rpm
yes
Timer / continous
LCD / LCD
digital / digital
250 x 190 x 260 mm
IP 21
40 W
100 - 240 V • 50/60 Hz
Accessories Rotators and Disk Mixers

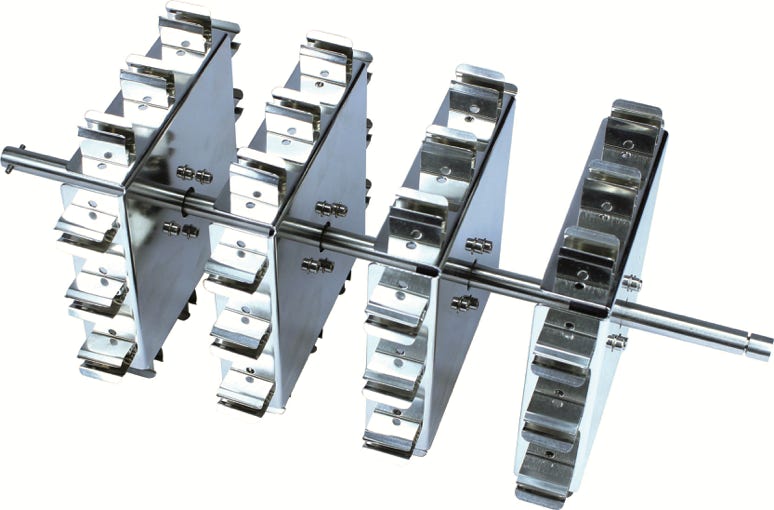

RSE-RR 05
RSE-RR 10
RSE-RR 15
RSE-RR 25
RSE-RR 30
RSE-RR 35

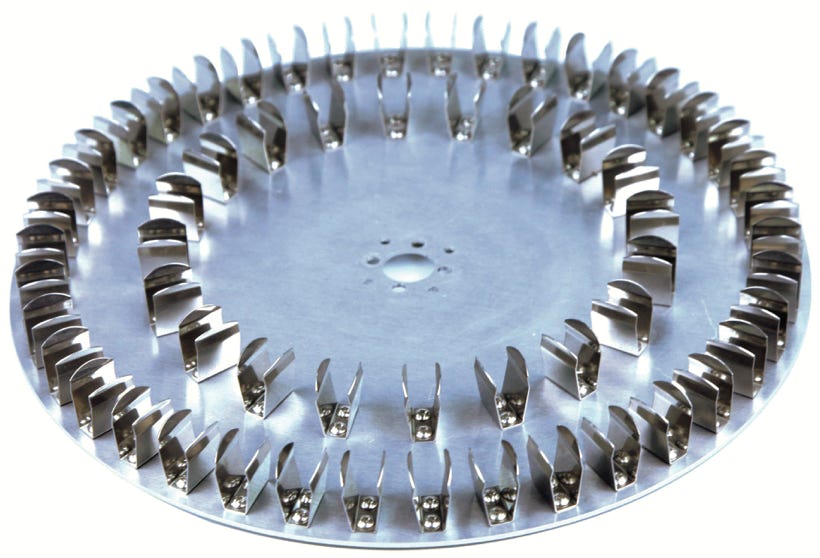

RSE-RD 05
RSE-RD 10
RSE-RD 15
RSE-RD 50
RSE-RD 20
RSE-RD 22
RSE-RD 24
RSE-RD 05
Rotator module for RS-RR 20, 48 x 1.5 ml tubes, horizontal mixing
Rotator module for RS-RR 20, 24 x 15 ml tubes, horizontal mixing
Rotator modul for RS-RR 20, 24 x 50 ml tubes, horizontal mixing
Rotator modul for RS-RR 20, 32 x 1,5 ml tubes, vertical mixing
Rotator modul for RS-RR 20, 16 x 15 ml tubes, vertical mixing
Rotator modul for RS-RR 20, 16 x 50 ml tubes, vertical mixing
Disk modul for RS-RD 20, 60 x 1,5 ml tubes
Disk modul for RS-RD 20, 16 x 15 ml tubes
Disk modul for RS-RD 20, 8 x 50 ml tubes

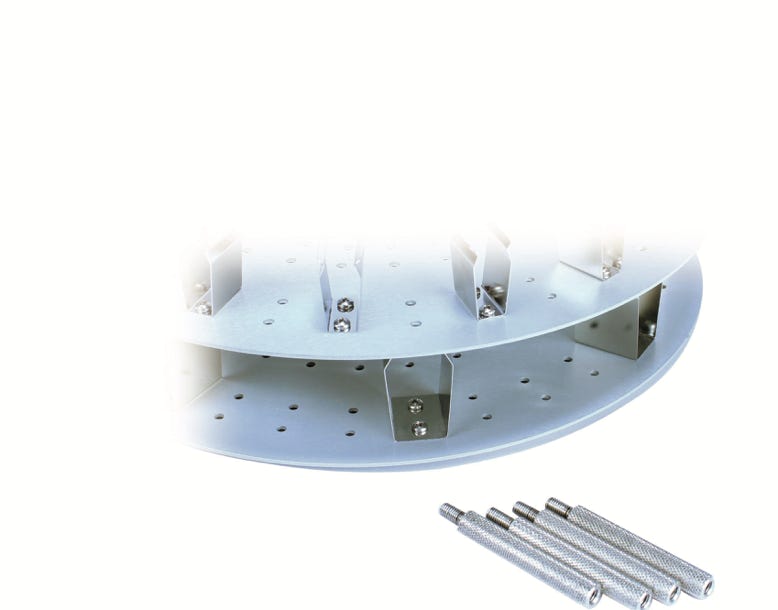

Adapter to use several disk modules
12 x 1,5/2 ml holding clips for RS-RR 5 and RS-RD 5
12 x 15 ml holding clips for RS-RR 5 and RS-RD 5
12 x 50 ml holding clips for RS-RR 5 and RS-RD 5
RSE-RD 50
RSE-RR 5

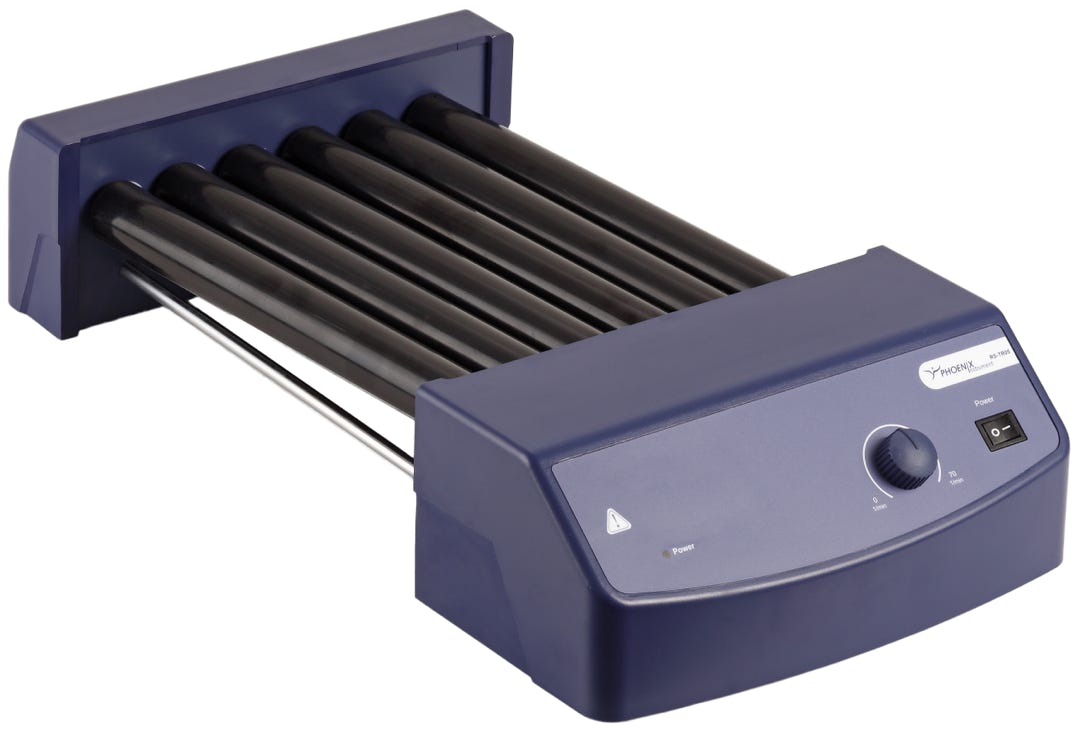

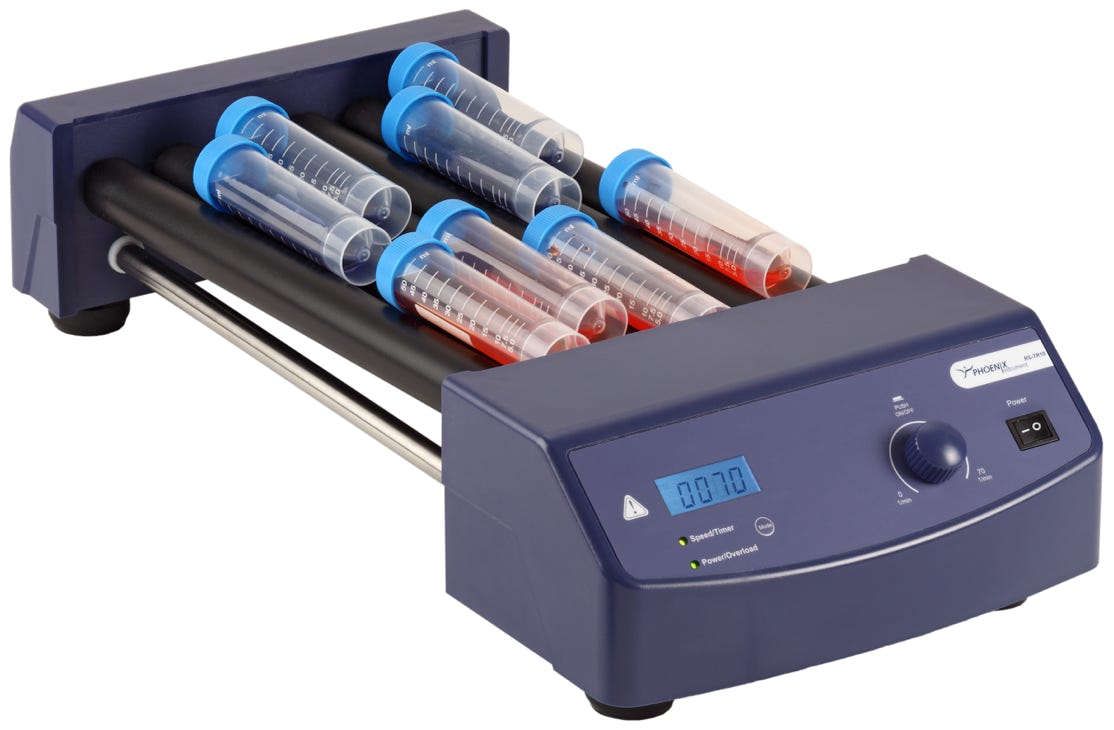

Tube Roller RS-TR 5 and RS-TR 10
• gentle mixing
• easy to use
• easy cleaning
• timer function (RS-TR 10 only)
• LCD display (RS-TR 10 only)
RS-TR 5
RS-TR 10
Technical data
Movement
No. of rolls / lenght
Amplitude
Speed
Timer
Operation
Display Speed / Time
Adjustment Speed / Time
Dimension
Protection class
Power
Voltage • Frequency
RS-TR 5
Rocking and Rolling
6 / 280 mm
24 mm
20 - 70 rpm
-
Contionous
scale / -
analog / -
260 x 490 x 110 mm
IP 21
25 W
100 - 240 V • 50/60 Hz
RS-TR 10
Rocking and Rolling
6 / 280 mm
24 mm
10 - 70 rpm
yes
Timer / continous
LCD / LCD
digital / digital
260 x 490 x 110 mm
IP 21
30 W
100 - 240 V • 50/60 Hz
Technical data
Movement
Amplitude
Speed
Display speed
Abmessungen
Protection class acc. EN60529
Voltage • Frequency

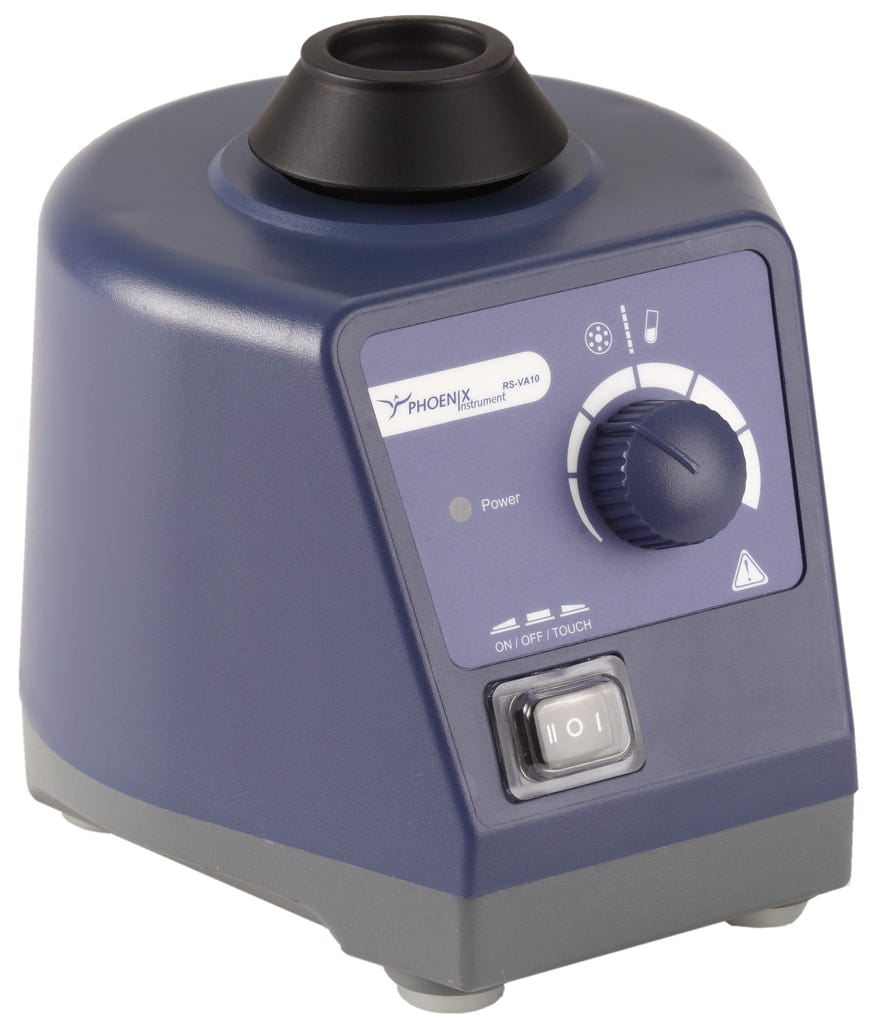

Vortexer RS-VF 10 and RS-VA 10
• touch- or continuous
• variable speed 100 to 2,500 rpm (RS-VA 10)
• anti-slipping feet
• various top frames available for RS-VA 10
• sturdy cast housing
RS-VF 10
orbital
4 mm
100 - 2,500 rpm
-
127 x 160 x 130 mm
IP 21
200 - 240 V • 50/60 Hz
RS-VA 10
RS-VA 10
orbital
4 mm
100 - 1,500 rpm
knob
127 x 160 x 130 mm
IP 21
200 - 240 V • 50/60 Hz

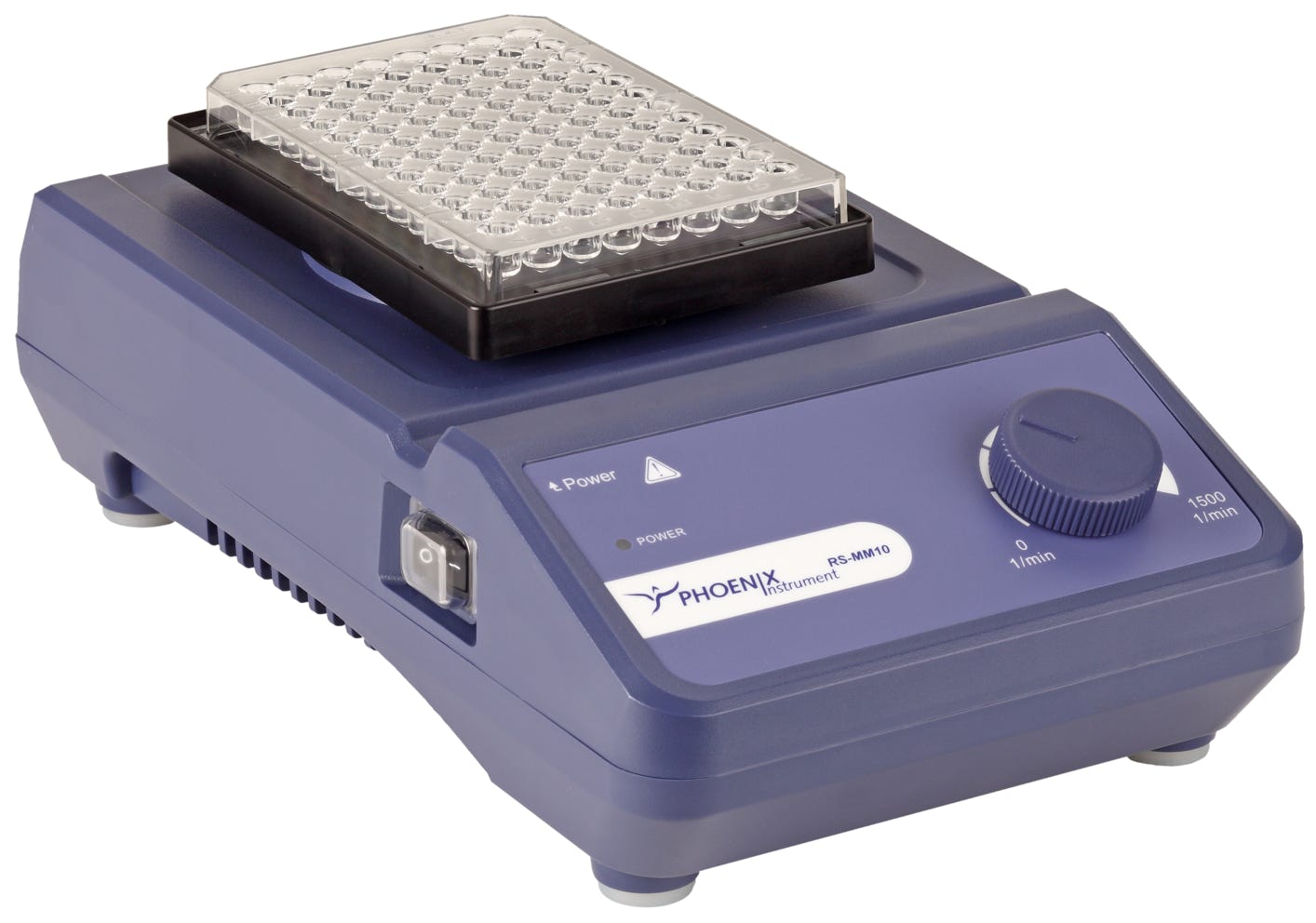

Micro Plate Mixer RS-MM 10
• compact mixer suitable for 96er micro titer plates
• adjustable speed
• various top frames available for RS-MM 10
RS-MM 10
Technical data
Movement
Amplitude
Speed
Display speed
max. load
Dimension
Protection class acc. EN60529
Dimension
Voltage • Frequency
RS-MM 10
orbital
4.5 mm
50 - 1,500 rpm
Knob
0.5 kg
150 x 80 x 260 mm
IP 21
260 x 490 x 110 mm
100 - 240 V • 50/60 Hz
Accessories for Micro Plate Mixer and Vortexer
RSV-E 10
RSV-E 12
RSV-E 15
RSV-E 18
RSV-E 20
RSV-E 25
RSV-E 30
RSV-E 35
RSV-E 40
RSV-E 44
RSV-E 50
RSV-E 55
RSV-E 57
RSV-E 60
RSV-E 65
Universal top plate for tubes and vessels up to 30 mm Ø for Vortexer
Holding bar for RSV-E 20 - 40

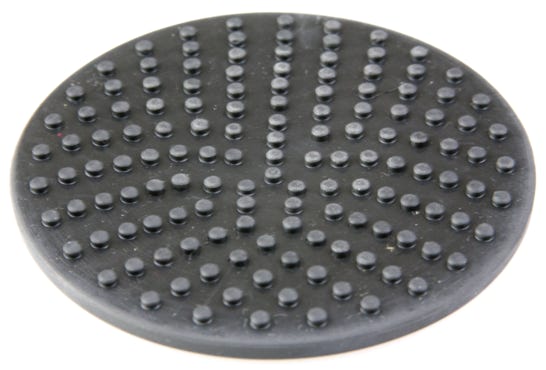

100 mm plate with rubber mat for RSV-E 20-40, RSV-E 44

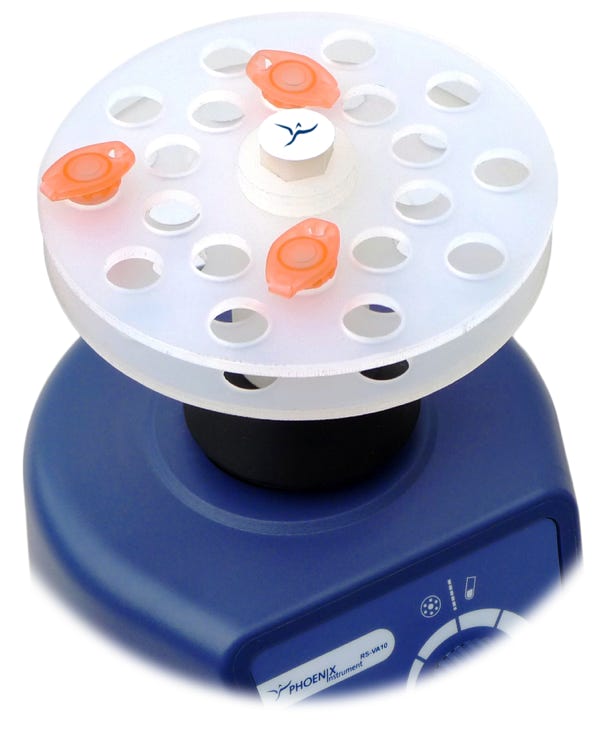

DNA -attachment 20 Tubes 10,5 mm Ø, Material PP
Adapter for 48 Tubes 6 mm Ø, to be used with RSV-E 15
Adapter for 15 Tubes 10 mm Ø, to be used with RSV-E 15
Adapter for 12 Tubes 12 mm Ø, to be used with RSV-E 15

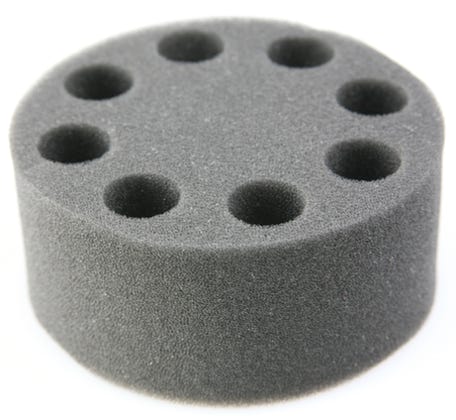

Adapter for 8 Tubes 16 mm Ø, to be used with RSV-E 15
Adapter for 8 Tubes 20 mm Ø, to be used with RSV-E 15
Universal top plate for tubes and vessels up
to 99 mm Ø for Vortexer
Attachment for micro plate mixer to be used with
RSV-E20-40, RSV-E44
Microtiterplate-attachment for one plate for RS-MM
Microtiterplate-attachment for two plates for RS-MM 10
Vortexer universal attachment for tubes and vessels up
to 99 mm Ø incl. RSV-E 15
Vortexer attachment with Microtiterplate RSV-E55
DNA - Aufsatz RSV-E 18

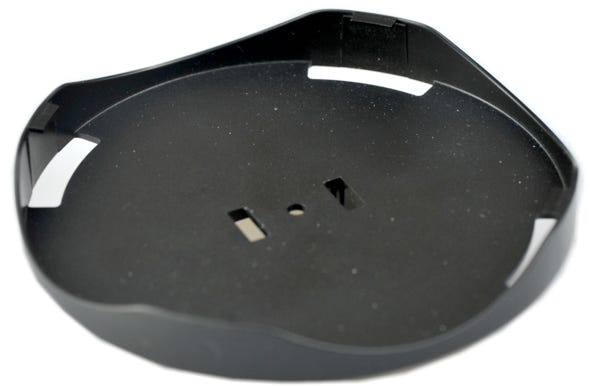

RSV-E 15
RSV-E 20-40
RSV-E 44

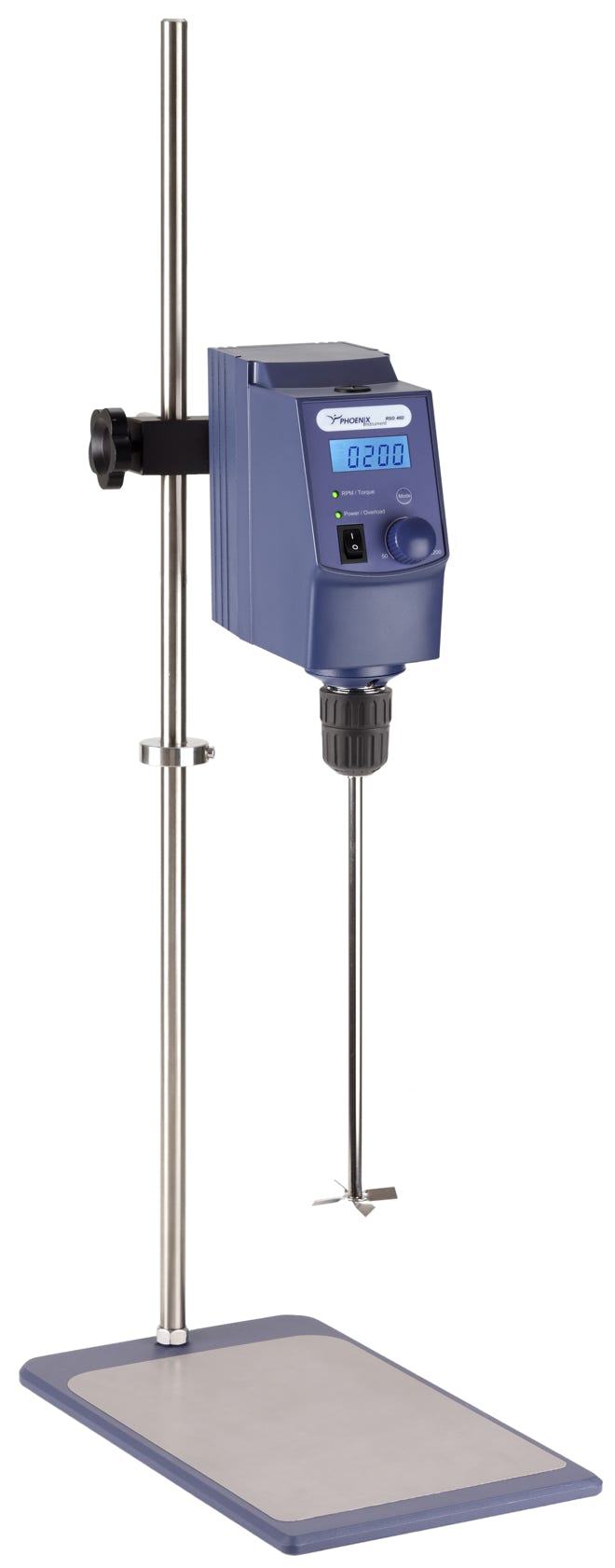

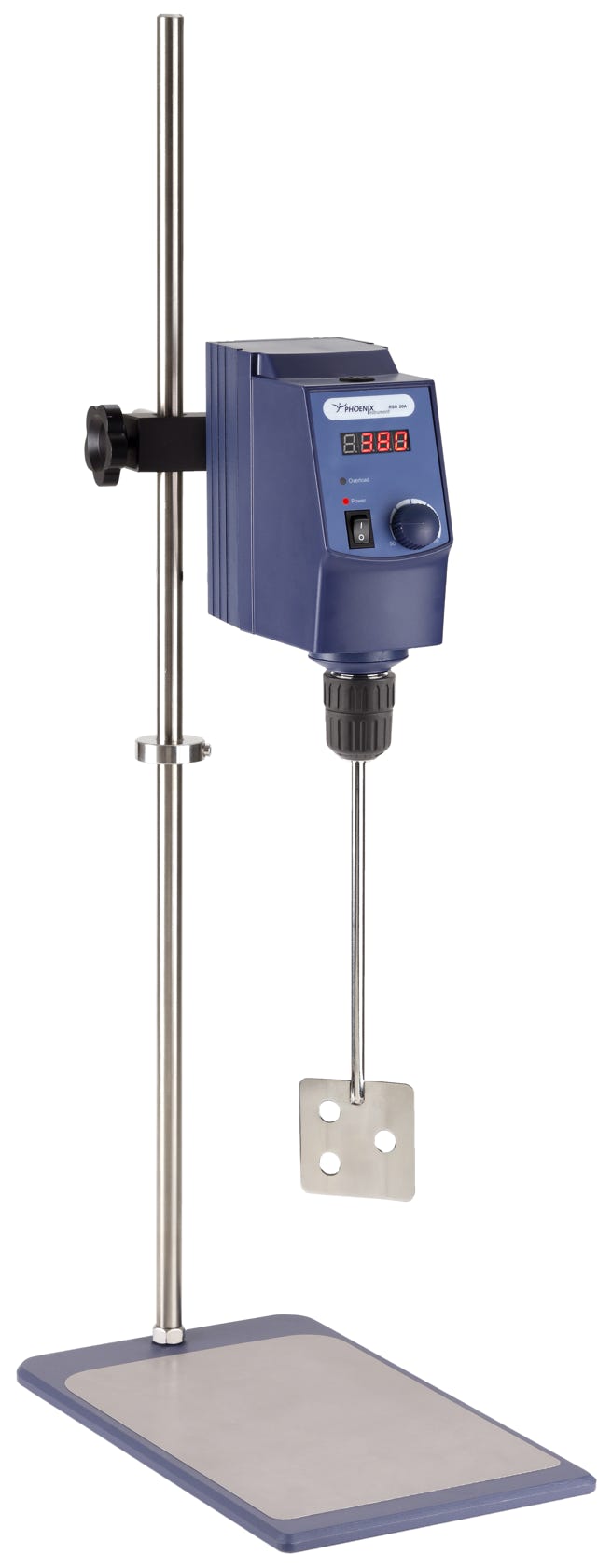

Overhead Stirrer RSO-20 (analog) and RSO-40 (digital)
RSO 20A / 40A
• digital speed readout
• stepless speed adjustment
• sturdy construction
• very quiet operation
• safety circuit
RSO 20D / 40D
(additional to analog version)
• digital stirrer with LCD-display
• microprocessor-controlled speed accuracy
• smooth start procedure
• selectable display of speed/torque
• RS 232 Interface
RSO-20A
RSO-40D
Technical data
Max. stirring quantity
Speed
Speed accuracy
Speed display
Max. Viskosity
Max. torque
Chuck range ø
Push trough shaft
Fastening on stand
Torque display
Dimension
Weight
Protection class
Motor rating input
Motor rating output
Voltage • Frequency
RSO-20A
20 L H2O
50 - 2,200 rpm
-
LED
10,000 mPas
30 Ncm
0.5 - 10 mm
yes
Boom 16 mm
no
82 x 220 x 186 mm
2.5 kg
IP 42
70 W
50 W
100 - 240 V • 50/60 Hz
RSO-40A
40 L H2O
50 - 2,200 rpm
-
LED
50,000 mPas
60 Ncm
0.5 - 10 mm
yes
Boom 16 mm
yes
82 x 220 x 186 mm
3.5 kg
IP 42
130 W
100 W
100 - 240 V • 50/60 Hz
RSO-20D
20 L H2O
50 - 2,200 rpm
±3
LCD
10,000 mPas
30 Ncm
0.5 - 10 mm
yes
Boom 16 mm
no
82 x 220 x 186 mm
2.5 kg
IP 42
70 W
50 W
100 - 240 V • 50/60 Hz
RSO-40D
40 L H2O
50 - 2,200 rpm
±3
LCD
50,000 mPas
60 Ncm
0.5 - 10 mm
yes
Boom 16 mm
jyes
82 x 220 x 186 mm
3.5 kg
IP 42
130 W
100 W
100 - 240 V • 50/60 Hz
Accessories Overhead Stirrer
RSO-E 07
RSO-E 10
RSO-E 11
RSO-E 12
RSO-E 13
RSO-E 20
RSO-E 21
RSO-E 22
RSO-E 23
RSO-E07
Plate stand

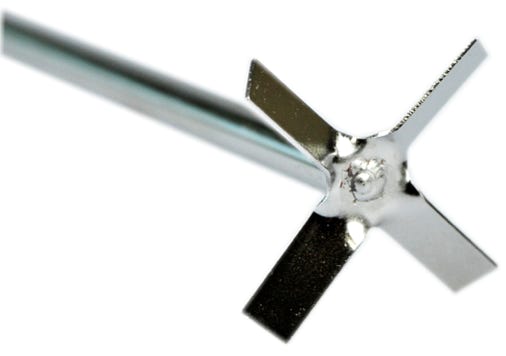

Propeller stirrer with 4 blades, stirrer diameter 50 mm,
shaft diameter 8 mm, shaft length 400 mm

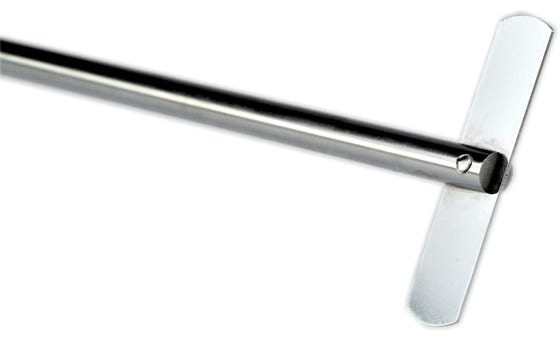

Paddle stirrer, stirrer diameter 70 mm, shaft diameter 8 mm,
shaft length 400 mm
Propeller stirrer with a flexible blade, stirrer diameter 60 mm,
shaft diameter 8 mm, shaft length 400 mm
Centrifugal stirrer, stirrer diameter 90 mm, shaft diameter 8 mm,
shaft length 400 mm
Propeller stirrer PTFE-coated with 4 blades, stirrer diameter 65 mm,
shaft diameter 6 mm, length 350 mm
Propeller stirrer PTFE-coated with 2 blades, stirrer diameter 70 mm,
shaft diameter 6 mm, length 350 mm
Paddle stirrer PTFE-coated, stirrer diameter 70 mm,
shaft diameter 6 mm, length 350 mm
Centrifugal stirrer PTFE-coated, stirrer diameter 90 mm,
shaft diameter 6 mm, length 350 mm
RSO-E10
RSO-E11
RSO-E12
RSO-E13
Thermo Shaker RS-TS 5 / 10
The new Thermo Shaker RS-TS10 and RS-TS5 combines precise and efficient heating & cooling and the mixing function.
These instruments are applicable for many applications such as Gene synthesis, gene purification, gene and protein denaturation, enzymatic reaction, bacterial growth, and others.
• Fully programmable (9 programs)
• Precise temperature control
for heating and cooling
• Real-time display of speed,
temperature and time
• Excellent mixing (200-1500rpm)
• Quick interchange of blocks without tools
and automatic block recognition
• Block equipped with a lid for
heat preservation
• Temperature self-calibration
RS-TS 10
Technical data
Movement
Amplitude
Temperature range / resolution
Temp. accuracy
Max. heating speed
Max. cooling speed
Speed
Motor
Programs
Display
Adjustment
Power
Dimension
Weight
Voltage • Frequency
RS-TS 5
orbital
4 mm
RT+5 to 99.9 °C
0.5 °C
5.5 °C/min
5 °C/min (100 °C-RT)
200 - 1,500
DC, brushless
9
TFT
digital
200 W
200 x 235 x 120 mm
7.3 kg
200 - 240 V • 50/60 Hz
RS-TS 10
orbital
4 mm
RT+5 to 99.9 °C
0.5 °C
5.5 °C/min
5 °C/min (100 °C-RT)
0,5 °C/min (below RT)
200 - 1,500
DC, brushless
9
TFT
digital
200 W
200 x 235 x 120 mm
7.3 kg
200 - 240 V • 50/60 Hz
Accessories Thermo Shaker RS-TS 5 and RS-TS 10
TSB-10
TSB-15
TSB-20
TSB-25
TSB-30
TSB-35
TSB-40
TSB-45
TSB-50
Heating block 24 x 0.5 ml
Heating block 24 x 1,5 ml
Heating block 24 x 2 ml
Heating block 8 x 5 ml
Heating block 8 x 5 ml, konical
Heating block 8 x 15 ml
Heating block 4 x 50 ml
Heating block 96 well PCR plate borderless
Heating block 96/384 mikrotiterplate
Hole (d x h)
8.1 x 26 mm
10.9 x 30.8 mm
10.9 x 30.8 mm
13.6 x 42 mm
17 x 51.5 mm
16.9 x 80 mm
29.6 x 80 mm
Max. speed
1,500 rpm
1,500 rpm
1,500 rpm
1,500 rpm
1,400 rpm
800 rpm
600 rpm
1,500 rpm
1,500 rpm
Lid
yes
yes
yes
no
yes
no
no
yes
yes
TSB-10
TSB-25
TSB-40
TSB-15
TSB-30
TSB-45
TSB-20
TSB-35
TSB-50
Phoenix Instrument GmbH
Tel.: +49 5131 / 90 818 -30 • Fax: +49 5131 / 90 818 -39
Heinkelstraße 4 • D-30827 Garbsen, Germany
