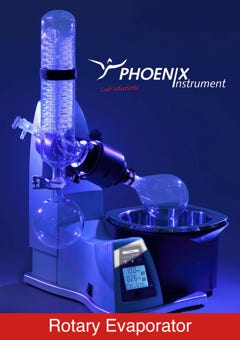

Rotatory Evaporator RE-100D

• Huge, easy-to-read LCD display, indicates temperature, speed and time

• Speed range from 20 to 280 rpm

• Large 5 l water/oil heating bath with heating temperature range of RT to 180 °C

• Heating bath with precise temperature control and adjustable safety circuit

• Patented condenser cooling surface 1,500 cm² with excellent cooling effect

• Motorized lift with quick-action, automatic release evaporating flask

‍ to top position in case of power failure

• Adjustable final position recognition to protect operator and sample against breakage

• Evaporating flask with an ejector, convenient to remove

• Available with timer function to precise control processing

• Interval operation left/right

Technical Data

Voltage • Frequency

Power

Motor

Speed

Speed display

Temperature

Accuracy Heating

Heating power

Temperature display

Lift

Stroke

Timer control

Time display

Operation time

Dimension

Weight

Ambient temperature

Relative humidiy

Protection class

RE-100D

100-240 V • 50/60 Hz

1,400 W

brushless DC

20 - 280 rpm

LCD

RT to 180 °C

± 1 °C

1,300 W

LCD

Motor

150 mm

Yes

LCD

1-999 min

600 x 450 x 820 mm

19 kg

5 - 40 °C

80 %

IP20

Accessories for RE-100D

RE-P 100

Vacuum membran pump, ultimate vacuum 8 mbar

RE-P 110

Vacuum-dosing block

with manometer

RE-P 100

Pressure controlled vacuum-system,

ultimate vacuum 2 mbar

Additional accessoires for RE-100D

RE-S 100

RE-S 110

RE-S 200

RE-S 250

RE-S 300

RE-S 310

RE-S 320

RE-S 350

RE-S 360

RE-S 370

RE-S 400

RE-S 410

RE-S 420

RE-S 450

RE-S 460

RE-S 470

RE-S 600

RE-S 650

Vapor tube

Seal

Vertical glass set

Vertical glass set, coated

Evaporation flask 500 ml, NS29/32

Evaporation flask 1000 ml, NS29/32

Evaporation flask 2000 ml, NS29/32

Evaporation flask 500 ml, NS29/32, coated Evaporation flask 1000 ml, NS29/32, coated Evaporation flask 2000 ml, NS29/32, coated

Receiving flask 500 ml, KS35/20

Receiving flask 1000 ml, KS35/20

Receiving flask 2000 ml, KS35/20

Receiving flask 500 ml, KS35/20, coated

Receiving flask 1000 ml, KS35/20, coated

Receiving flask 2000 ml, KS35/20, coated

Foam brake

Distilling spider with 5 flasks (100 ml)
