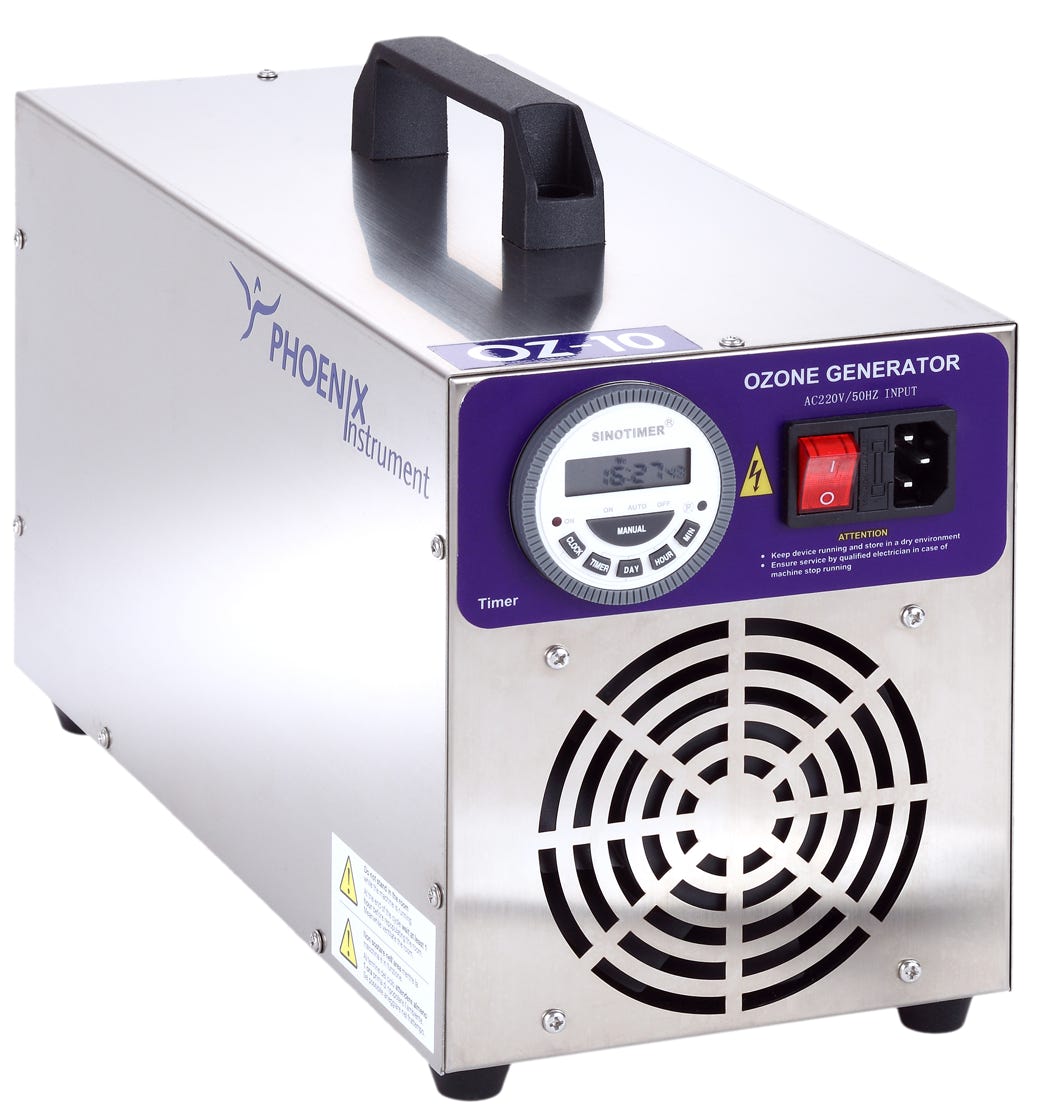

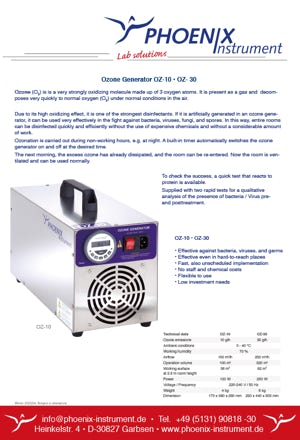

Ozone - Generator OZ-10 / OZ-30
Ozone (O3) is a very strongly oxidizing molecule made up of 3 oxygen atoms. It is present as a gas and decomposes very quickly to normal oxygen (O2) under normal conditions in the air.
Due to its high oxidizing effect, it is one of the strongest disinfectants. If it is artificially generated in an ozone generator, it can be used very effectively in the fight against bacteria, viruses, fungi, and spores.
In this way, entire rooms can be disinfected quickly and efficiently without the use of expensive chemicals and without a considerable amount of work.
Ozonation is carried out during non-working hours, e.g. at night. A built-in timer automatically switches the ozone generator on and off at the desired time.
The next morning, the excess ozone has already dissipated, and the room can be re-entered. Now the room is ventilated and can be used normally.
• Effective against bacteria, viruses, and germs
• Effective even in hard-to-reach places
• Fast, also unscheduled implementation
• No staff and chemical costs
• Flexible to use
• Low investment needs
OZ-10
Technical data
Ozone emission
Ambient condition
Working humidity
Airflow
Operation volume
Working surface
(at 2.8m room height)
Power
Voltage • Frequency
Weight
Dimension
OZ-10
10 g/h
0 - 40 °C
70 %
150 m3/h
100 m3
36 m2
130 W
220 - 240 V • 50 Hz
4 kg
120 x 380 x 260 mm
OZ-30
30 g/h
0 - 40 °C
70 %
230 m3/h
320 m3
82 m2
250 W
220 - 240 V • 50 Hz
6 kg
220 x 440 x 305 mm
