Durable tip cone with good chemical resistance
Variable and Fix Pipettes
Single Channel Pipettes LHP2
Single Channel Pipette
fix volume, autoclavable
Single- and Multichannel Pipettes
Pipetting is one of the most important tasks in the laboratory.
The new pipettes and pipette filler from PHOENIX INSTRUMENT offer a high level of ease of use at a very good price/performance ratio and the user must abstain neither from precision nor from an ergonomic design.
Model
LHP2-F5
LHP2-F10
LHP2-F20
LHP2-F25
LHP2-F50
LHP2-F100
LHP2-F200
LHP2-F250
LHP2-F500
LHP2-F1000
LHP2-F2000
LHP2-F5000
Clear readout of the volume settings via digital display
Single Channel Pipette with variable Volume LHP2-V100
Volume
(µl)
5
10
20
25
50
100
200
250
500
1.000
2.000
5.000
Inaccuracy
(+/- in %)
1.30
0.80
0.60
0.50
0.50
0.50
0.40
0.40
0.30
0.30
0.30
0.30
Finger support, for resting the pipette
in either hand
Impression
(< %)
1.20
0.80
0.50
0.30
0.30
0.30
0.20
0.20
0.20
0.20
0.15
0.15
Model
LHP2-V01
LHP2-V05
LHP2-V2
LHP2-V5
LHP2-V10
LHP2-V20
LHP2-V50
LHP2-V100
LHP2-V200
LHP2-V1000
Smooth mechanism for easy volume setting and pipetting

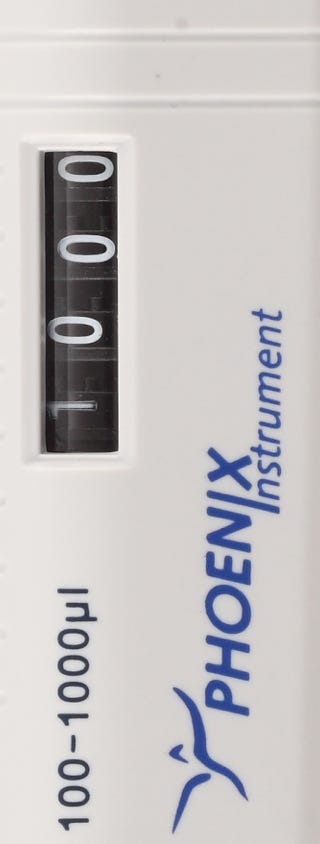

Volume Display

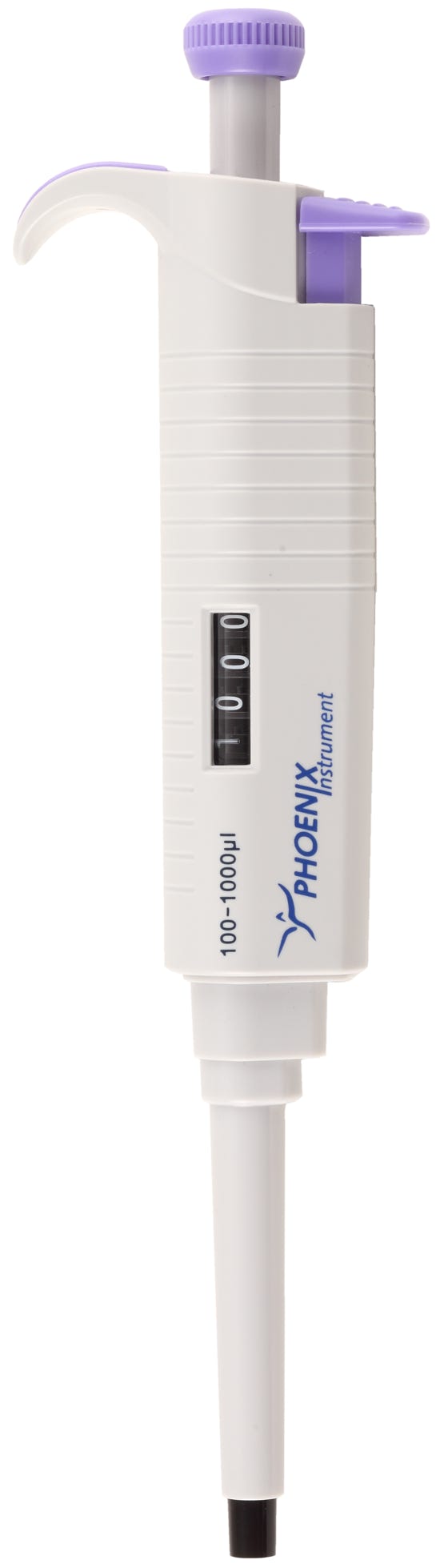

Single Channel Pipette
variable volume, autoclavable
Volume
(µl)
0.1 -2.5
0.5 - 10
2 - 20
5 - 50
10 - 100
20 - 200
50 - 200
100- 1,000
200 - 1,000
1,000 - 5,000
Inaccuracy
(+/- in %)
3.00
1.50
1.20
0.90
1.00
0.80
0.80
0.70
0.70
0.60
Impression
(< %)
3.00
1.50
1.00
0.60
0.40
0.30
0.30
0.25
0.25
0.30
Serial-no. on each Pipette for better traceability
Tip ejector for easy ejection without contamination
Measurements for all variable pipettes are made in the minimum, mean and maximum volume.
The data shown are based on the mean volume.

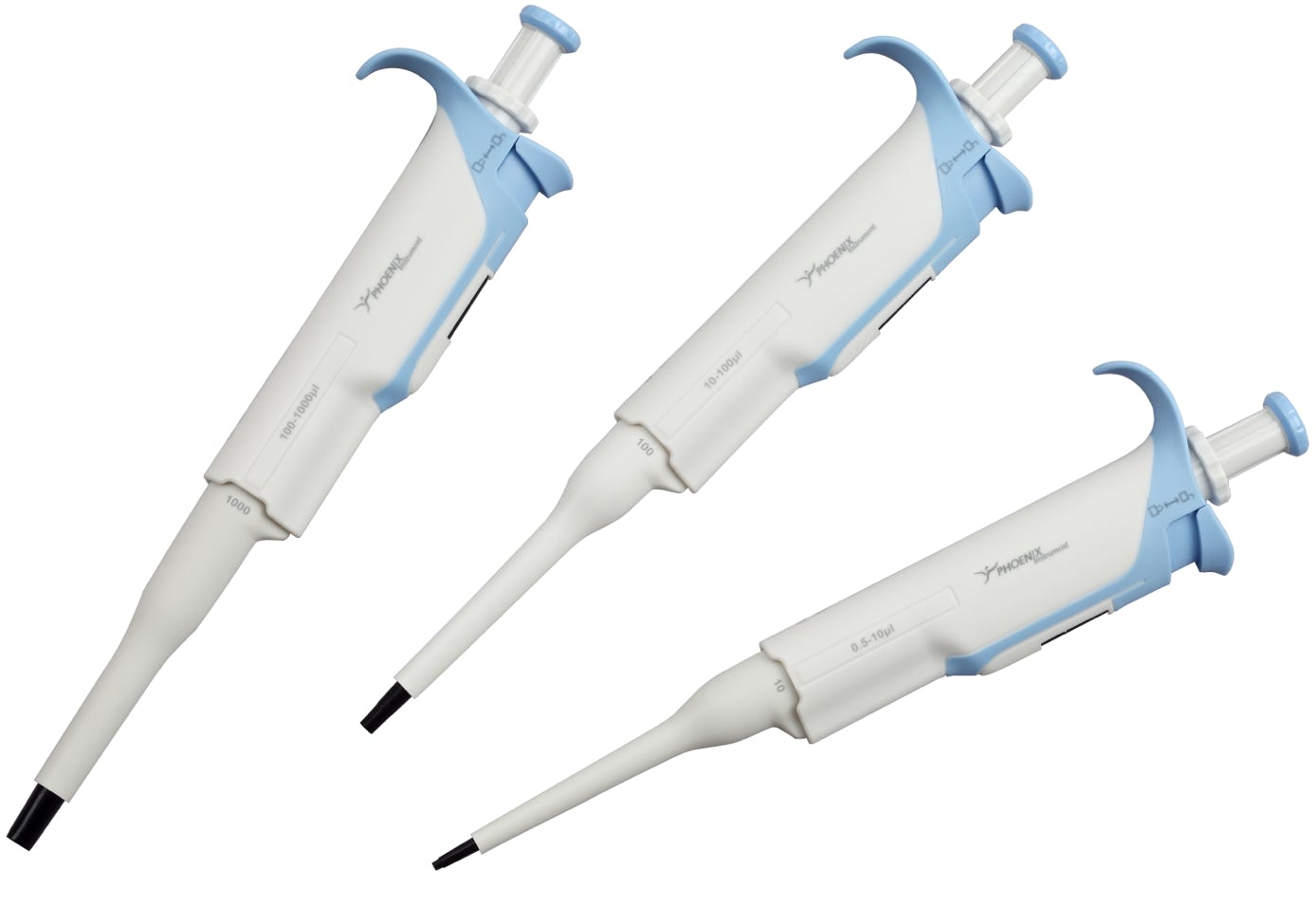

HiPette - Fully Autoclavable Mechanical Pipette
The new generation of fully autoclavable manual pipettes is lightweight, precise, stable and durable. It adopts new piston structure, metal screw structure and other technologies to reduce the pipetting resistance.
It can withstand high temperature and high-pressure sterilization, resist strong chemical corrosion and have a long service life. In addition, the volume lock helps achieve more precise pipetting operations.
• lightweight, ergonomic, low force design
• suitable for both left and right-handed users
• easy to calibrate and maintain with tool supplied
• fully autoclavable (model LHP2 only)
• calibration certificate according to DIN ISO 12650
• easy volume adjustment
• smooth tip ejection
• compatible with a wide range of tips
Single Channel Pipettes,
variable volume, autoclavable
Model
LHP3-V01
LHP3-V05
LHP3-V2
LHP3-V5
LHP3-V10
LHP3-V20
LHP3-V30
LHP3-V100
LHP3-V500
LHP3-1000
LHP3-V2000
Volume
0.1 - 2,5 µl
0.5 - 10 µl
2 - 20 µl
5 - 50 µl
10 - 100 µl
20 - 200 µl
30 - 300 µl
100 - 1.000 µl
500 - 1.000 µl
1,000 - 5,000 µl
2,000 - 10,000 µl
Inaccuracy
(+/- in %)
0.03 / 2.5
0.03 / 2.6
0.03 / 2.7
0.03 / 2.8
0.03 / 2.9
0.03 / 2.10
0.03 / 2.11
0.03 / 2.12
0.03 / 2.13
0.03 / 2.14
0.03 / 2.15
Impression
(< %)
0.02 / 1.5
0.02 / 1.6
0.02 / 1.7
0.02 / 1.8
0.02 / 1.9
0.02 / 1.10
0.02 / 1.11
0.02 / 1.12
0.02 / 1.13
0.02 / 1.14
0.02 / 1.15
Steps
(µl)
0.002
0.002
0.002
0.002
0.002
0.002
0.002
0.002
0.002
0.002
0.002

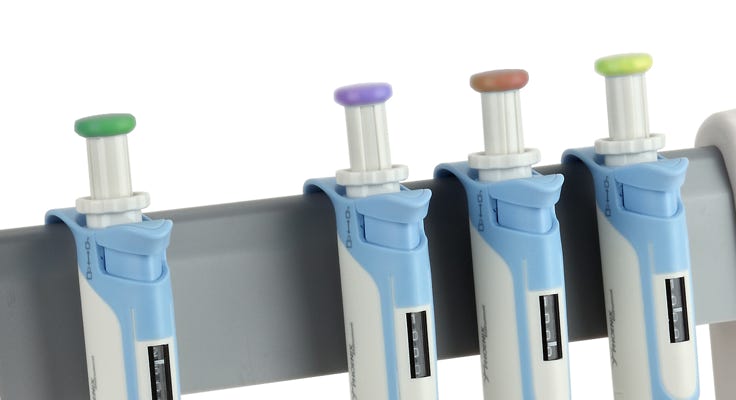

Color code avalible
2 Years
Warranty
Measurements for all variable pipettes are made in the minimum, mean and maximum volume.
The data shown are based on the mean volume.
Accessories
Pipette Stands
LHP-PS01
LHP-PS02
Pipette stand linear, for 5 Pipettes
Pipette stand round, for 6 Pipettes

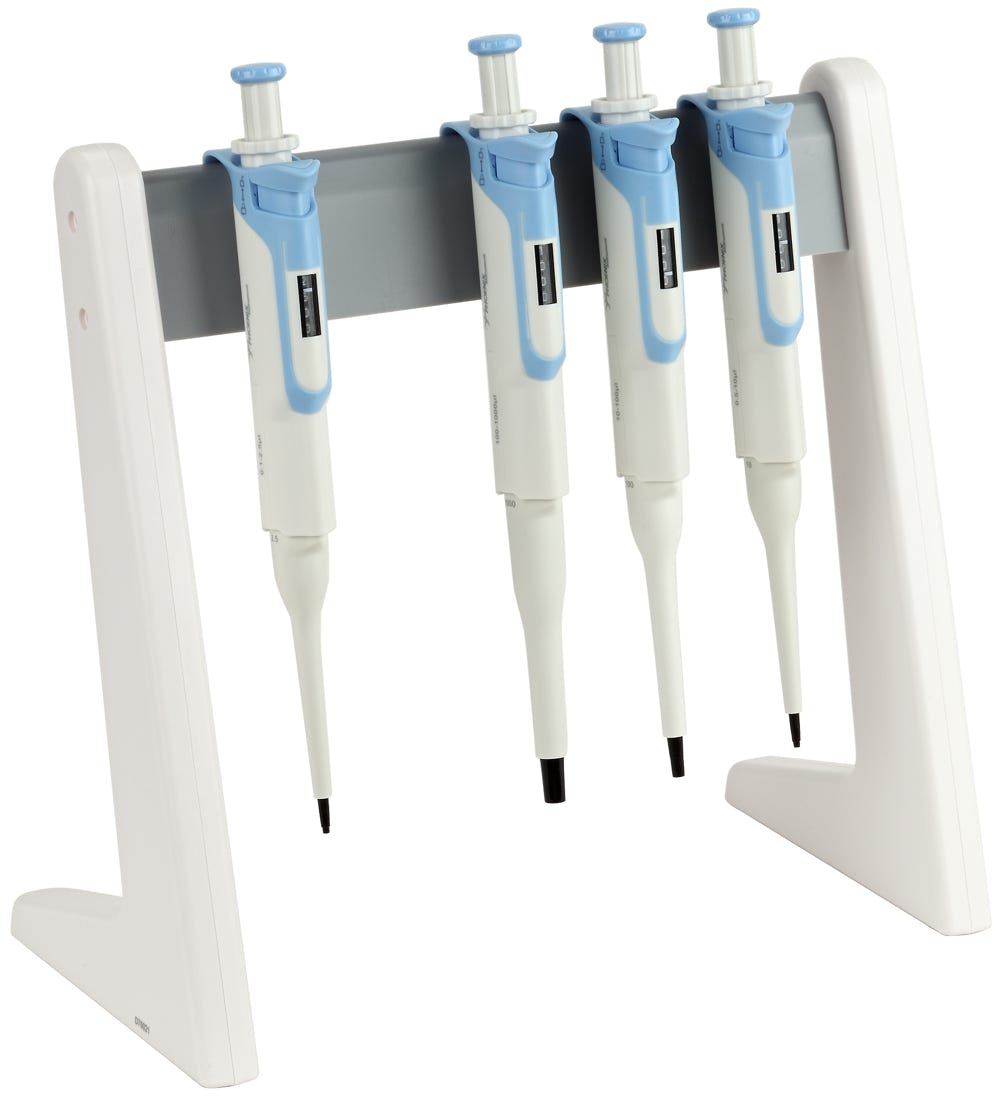

Pipette Stand linear
LHP-PS01
Pipette Tips
LHP-PS 10
LHP-PS 12
LHP-PS 14
LHP-PS 16
LHP-PS 18
Pipette tips 0.5 - 20 μl , clear, bag á 1,000 pcs
Pipette tips 1 - 200 μl yellow, bag á 1,000 pcs
Pipette tips 100 - 1000 μl blue, bag á 1,000 pcs
Pipette tips 1.0 - 5.0 ml, clear, bag á 300 pcs
Pipette tips 1.0 - 10.0 ml, clear, bag á 100 pcs
12- and 8- Channel Pipettes

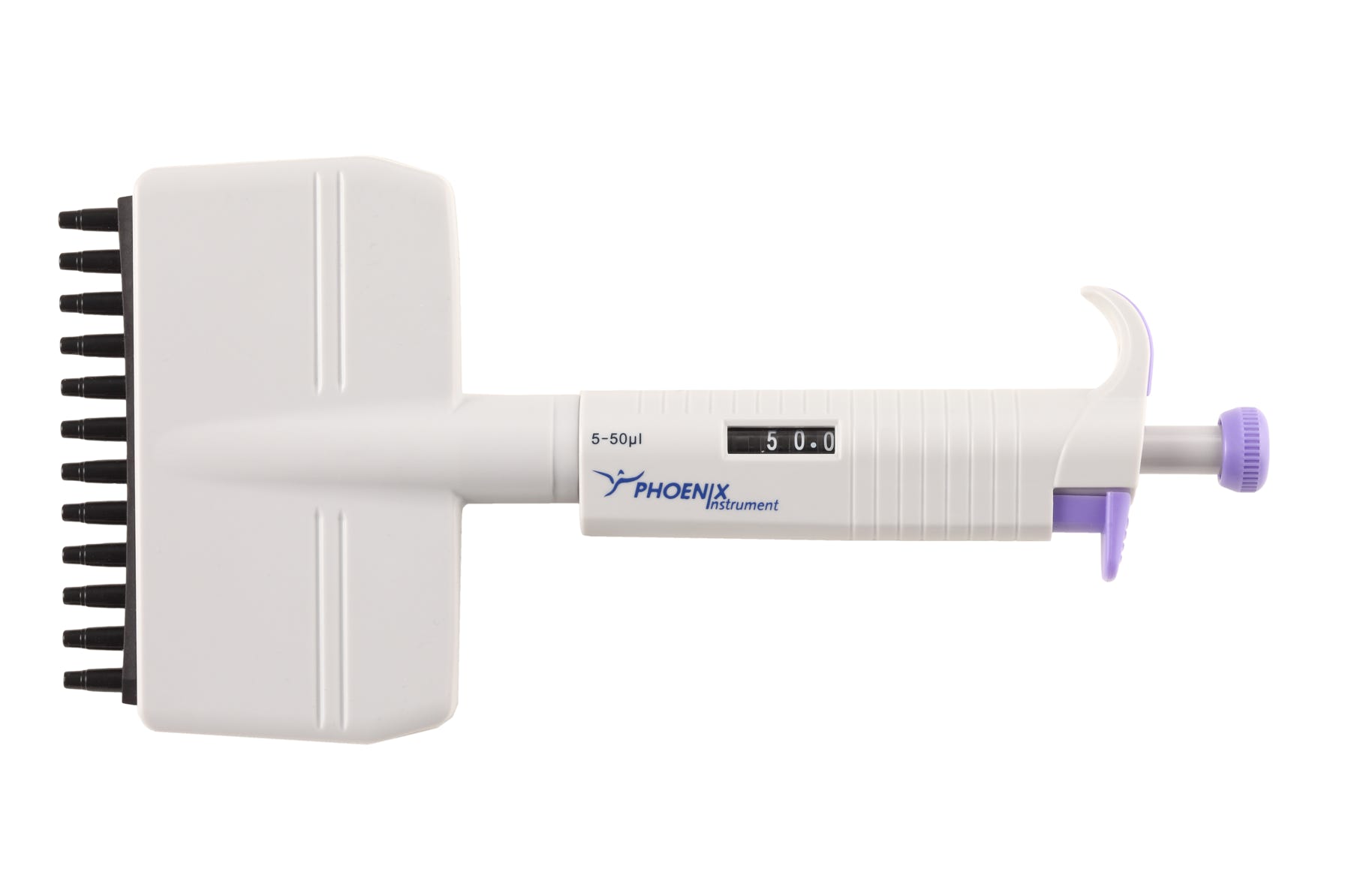

12-channel pipette with variable volume
LHP2-1220
12-Channel Pipette with variable volume, autoclavable
Model
LHP2-1210
LHP2-1220
LHP2-1230
Volume
(µl)
0.5 -10
5 - 50
50 - 300
Inaccuracy
(+/- in %)
2.50
1,50
1,00
Impression
(< %)
2.50
1,00
0,50
8-Channel Pipette with variable volume, autoclavable
Model
LHP2-810
LHP2-820
LHP2-830
Volume
(µl)
0.5 -10
5 - 50
50 - 300
Inaccuracy
(+/- in %)
2.50
1,50
1,00
Impression
(< %)
2.50
1,00
0,50

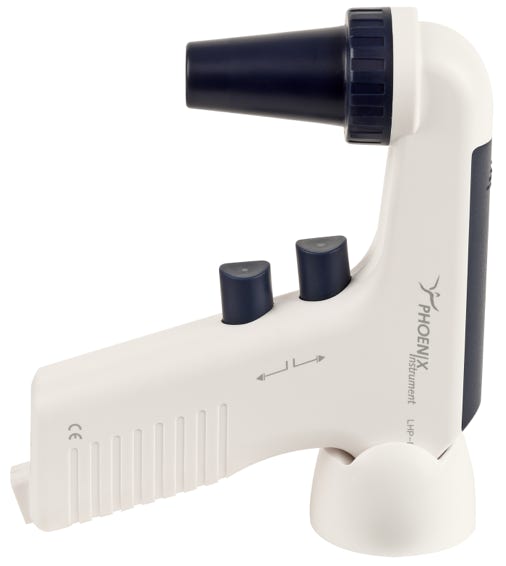

LHP-PH01 - Electonic Pipette Filler for all Pipettes up to 100ml
The strong pump of the LHP-PH 01 offers 8 different aspirate speeds. The LCD-Display indicates the speed as well as the status of the rechargeable battery.
Aspiration and discharging will be controlled by two different knobs. The capacity of
the strong accu is approx. 12 hours without
charging. The controler is equipped with a
built-in hydrophob filter which is replaceable.
A fatigue-proof over hours is not a
problem. The units are delivered with
charging cable and wall-holder.

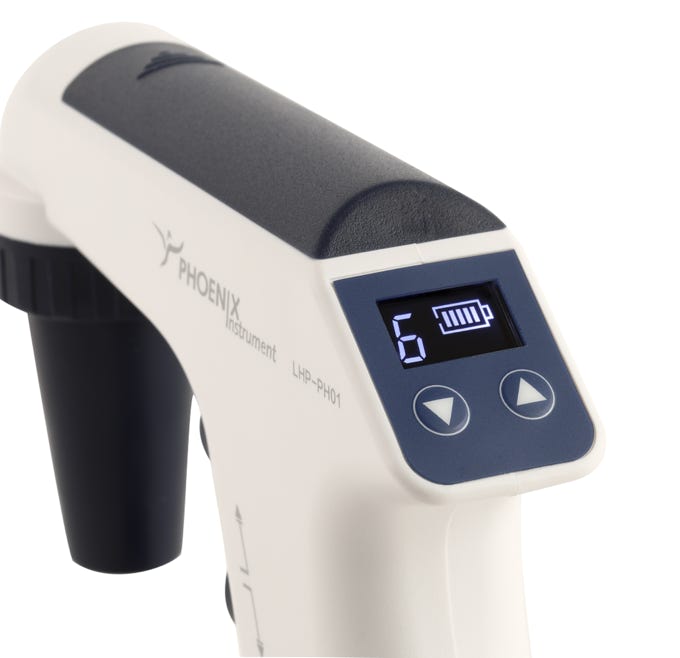

LED Display
LHP1-PH01
Technical data
Aspirate speed
Battery
Battery run time
Display
Pipettenart
Filter
LHP-PH01
8, Display via LED-Display
Li/Ion-Battery, charging 2 h
approx. 12 h (normal conditions)
LED (speed and battery status)
Glas- and plastic up to 100 ml
0.45 μm hydrophob
Accessoies Electronic Pipette Filler
LHP-PH10
LHP-PH20
LHP-PH30
LHP-PH42
3 x replaceable filter for electronic pipette filler, 0,45 μm
Replacement silicon adapter for electronic pipette filler
3 x replacement filler 3 μm
Replacement battery for electronic pipette filler
Pipette Controller for all Pipettes up to 100 ml
LHP1-PH02 / 03 / 04 / 05
The well-priced pipette controller can be used for all pipettes up to 100 ml. Robust, but lightweight, easy to use and allow comfortable and precise pipetting.
LHP1-PH05
LHP1-PH04
LHP1-PH03
LHP1-PH02
Robust, but lightweight, easy to use and allow comfortable and precise pipetting.
It has an integral and replaceable 3 μm filter.

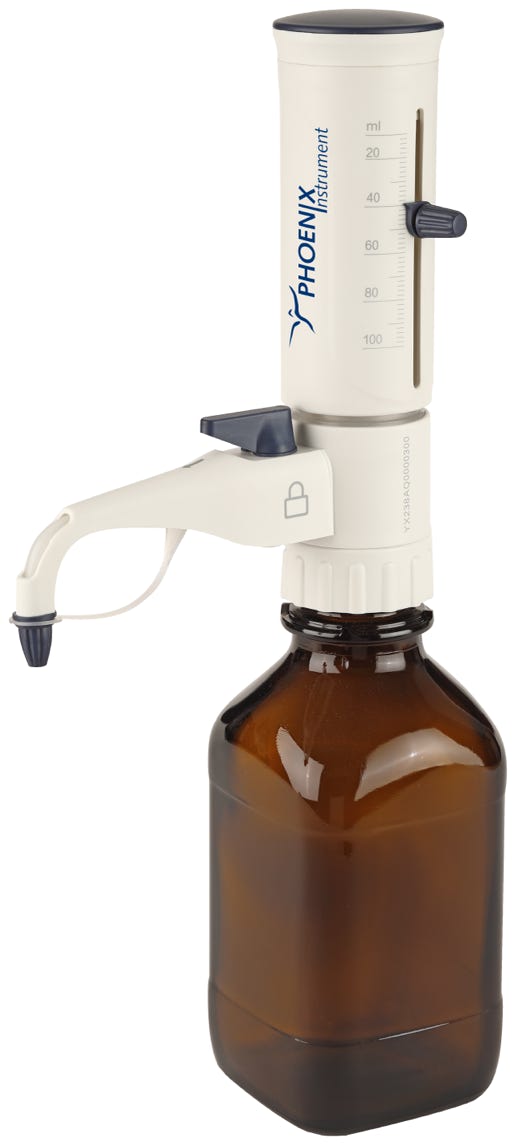

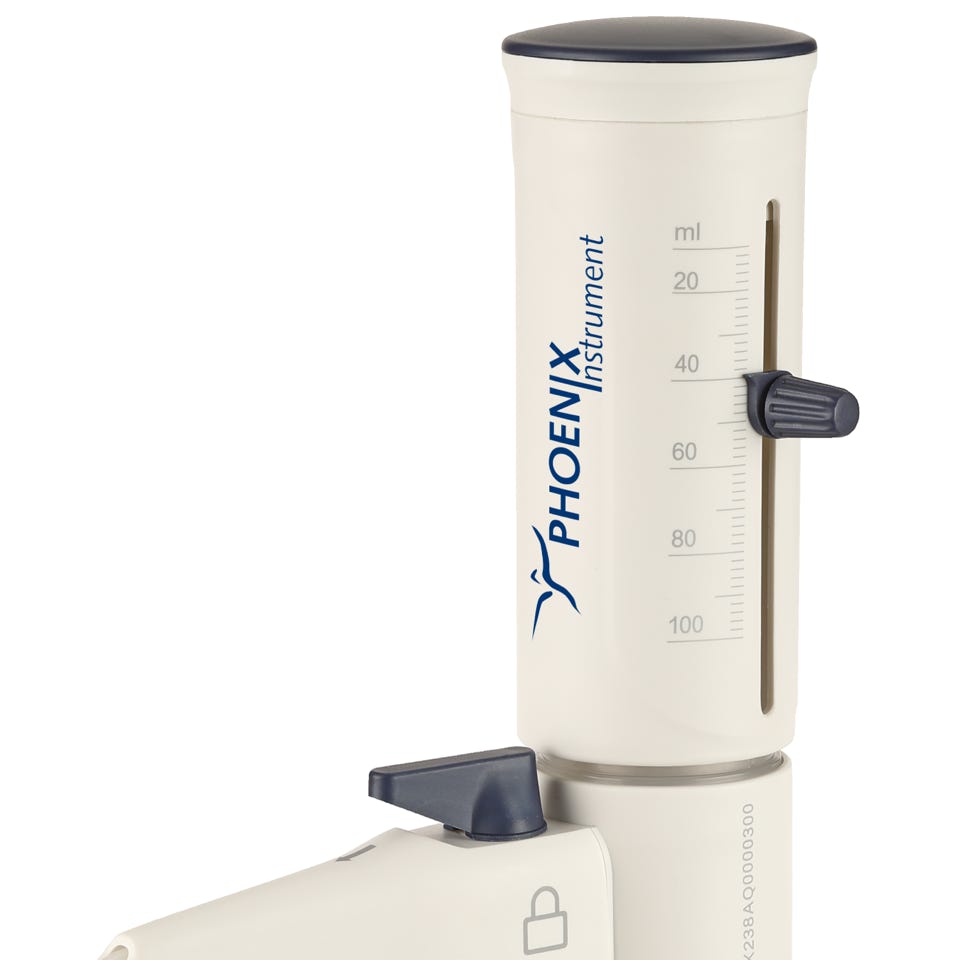

Dispenser
The dispensers covers a volume range of 0.5 - 50 ml. They have an excellent
chemical resistance and are fully autoclavable at 121 °C.
Easy to clean and maintain.
Fully
autoclavable
Modell
LHD-V05
LHD-V1
LHD-V2
LHD-V5
Dispenser
Dispenser 0.5 - 5 ml with adapter GL 25-45
Dispenser with adapter GL 25-45
Dispenser 2.5 - 25 ml with adapter GL 25-45
Dispenser 5 - 50 ml with adapter GL 25-45
• High chemical compatibility with use of inert materials and glass/PTFE piston
• Easy to disassemble and clean for periodic maintenance
• Fully autoclavable at 121 °C to ensure sterility
• Available in 5 dispensing volume ranges from 0.5mL to 100 mL
• Supplied with most popular adapters (S40, GL32, GL38, GL25, GL28)
• Fast, precise, and reproducible volume locking mechanism on a clear scale
• Reagent recovery function reduces reagent waste and prevents
dripping when not in use
• 6 adapters to comfortably fit most laboratory reagent bottles
• Adjustable aspirating tube for different bottle height

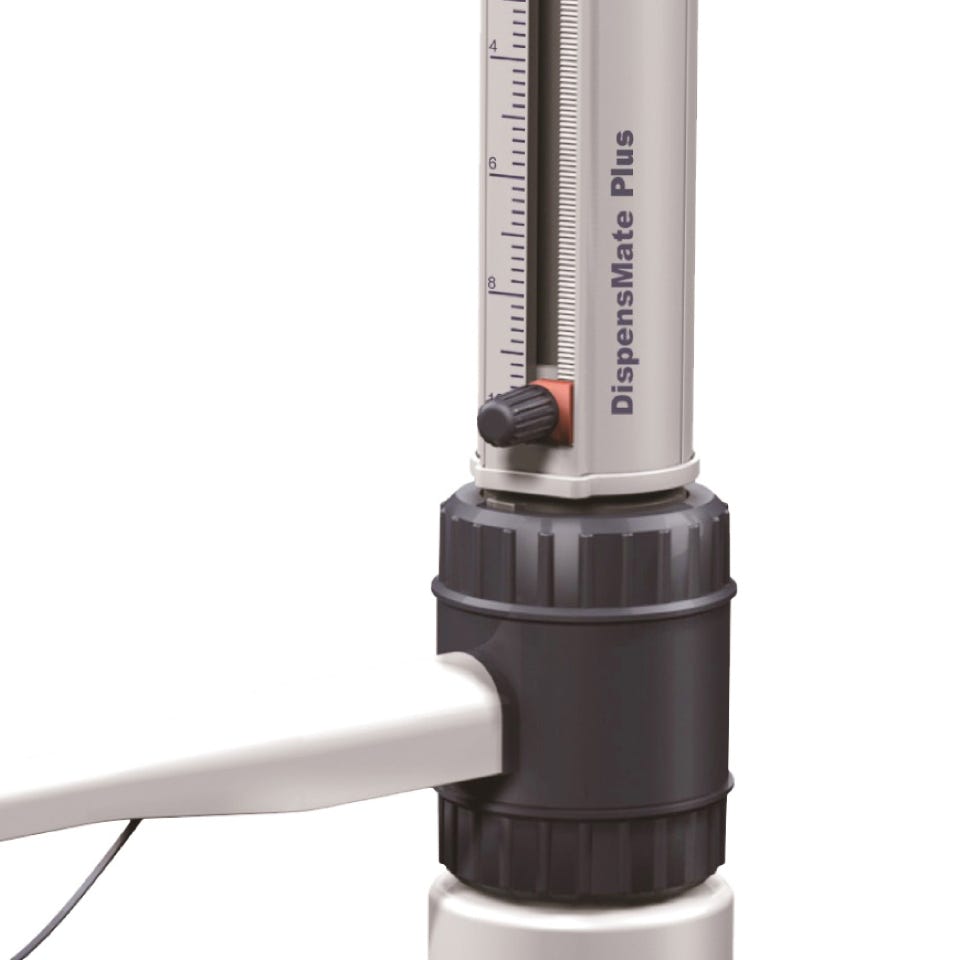

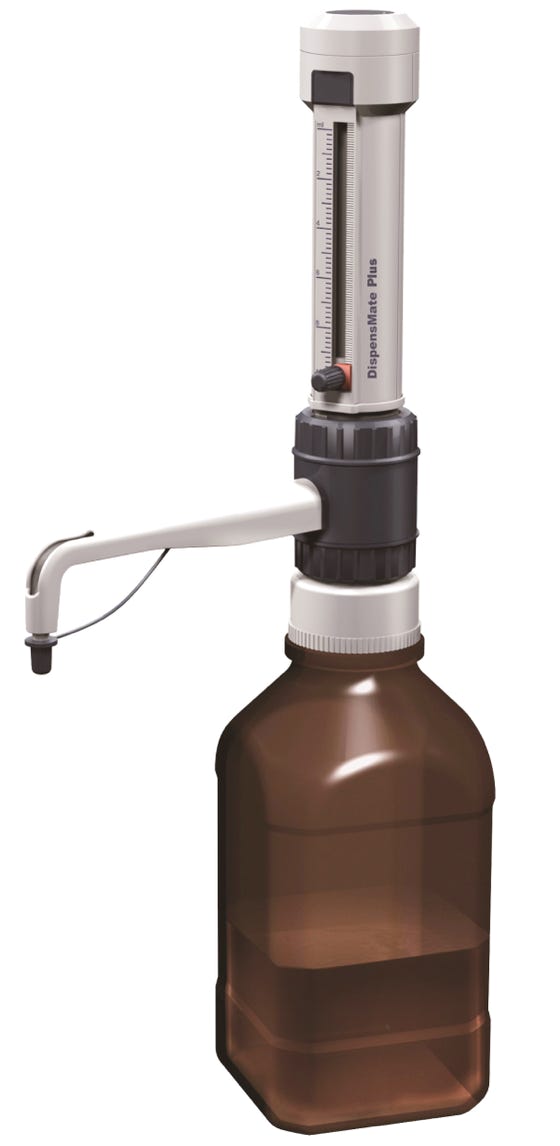

Premium Bottle-Top Dispenser LHD-Plus
New developed and designed for safe, sturdy & stable dispensing directly from
the bottle in the range of volumes up to 100 mL
Fully
autoclavable
Modell
LHD-V05 Plus
LHD-V1 Plus
LHD-V2 Plus
LHD-V5 Plus
LHD-V10 Plus
Dispenser
Dispenser 0.5 - 5 ml, with adapter GL5-45
Dispenser 1 - 10 ml with adapter GL 25-45
Dispenser 2.5 - 25 ml with adapter GL 25-45
Dispenser 5 - 50 ml with adapter GL 25-45
Dispenser 10 - 100 ml with adapter GL 25-45
Vacuum Aspiration System VAS-10
The new Vacuum Aspiration system VAS-10 is ideal for aspiration of liquids from all kind of vessels. The 4-Liter Aspiration bottle is autoclavable and can easily be removed from the system by the quick opening device.
The integrated fluid level control prevents the over ow of the bottle. The maximum vacuum pressure of 600 mbar is free adjustable and adapts the system for many application.
VAS-10

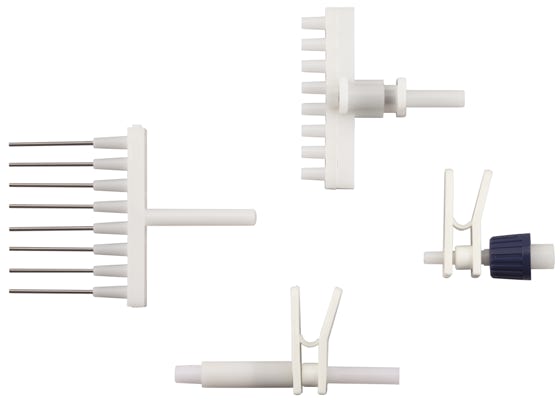

Accessories (included)
VAS-E 20
VAS-E 21
VAS-E 25
VAS-E 26
VAS-E 30
VAS-E 35
VAS-E 36
VAS-E 40
1-channel stainless tip 60 mm, Φ 1.5 mm
1-channel stainless tip 60 mm, Φ 2.5 mm
1-channel stainless tip 120 mm, Φ 1.5 mm
1-channel stainless tip 120 mm, Φ 2.5 mm
8-channel stainless tip 60 mm
200 µl tip adapter
1,000 µl tip adapter
200 µl tip adapter, 8-channel
Technical data
Vacuum (adjustable)
Aspiration volume air
Aspiration volume fluid
Dimension
Weight
Voltage
Bottle volume
VAS-10
0 to 600 mbar
15 l/min
17 ml/s
180 x 240 x 450 mm
3 kg
100-240V AC, 50/60 Hz
4 Liter PE, autoclavable

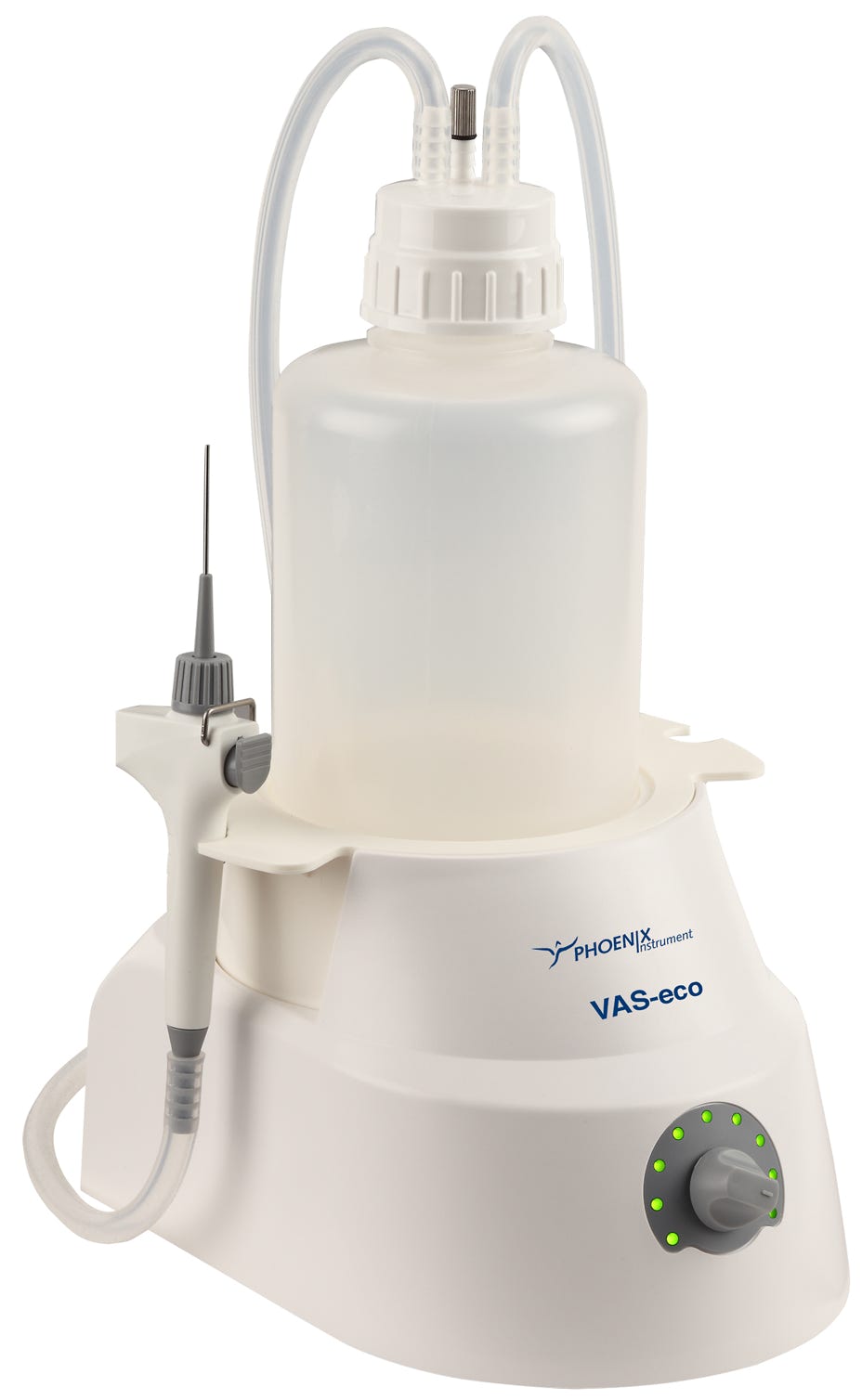

Vacuum Aspiration System VAS-ECO
The new VAS-ECO extraction system is the low-cost alternative for all laboratory applications. Thanks to its compact design, the VAS-ECO fits in any fume cupboard and on any workbench.
The manual control unit can be flexibly at the touch of a button or in 2-stage continuous operation and the maximum negative pressure of 600 mbar can be freely adjusted. This allows it to be adapted to all tasks.
VAS-ECO
• Infinitely adjustable vacuum
• Extensive range of accessories
• compact design and 2 liter autoclavable bottle
• easy switching between manual and continuous suction
• the hydrophobic filter prevents contamination
by aerosols and liquids
• Quiet, brushless motor
VAS-E 20
VAS-E 21
VAS-E 25
VAS-E 26
VAS-E 30
VAS-E 35
VAS-E 36
VAS-E 40
1-channel stainless tip 60 mm, Φ 1.5 mm
1-channel stainless tip 60 mm, Φ 2.5 mm
1-channel stainless tip 120 mm, Φ 1.5 mm
1-channel stainless tip 120 mm, Φ 2.5 mm
8-channel stainless tip 60 mm
200 µl tip adapter
1.000 µl tip adapter
200 µl tip adapter, 8-channel
Accessories included in delivery
Technical data
Vacuum (adjustable)
Aspiration volume air
Aspiration volume fluid
Dimension
Weight
Voltage
Bottle volume
VAS-ECO
0 to 500 mbar
8 l/min
17 ml/s
180 x 240 x 340 mm
2,8 kg
100-240V AC, 50/60 Hz
2 Liter PE, autoclavable

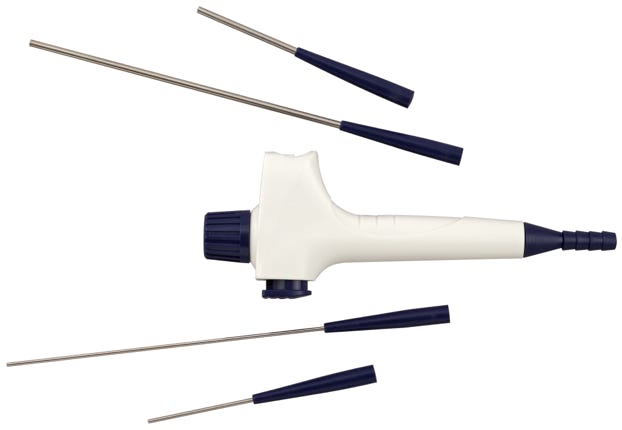

Accessories VAS-10 and VAS-ECO
VAS-E 05
VAS-E 10
VAS-E 11
VAS-E 12
VAS-E 20
VAS-E 21
VAS-E 25
VAS-E 26
VAS-E 30
VAS-E 35
VAS-E 36
VAS-E 40
VAS-E 42
Handset without accessories
Bottle for VAS-10, 4 Liter autoclavable
Cap for VAS-10 komplete
Bottle for VAS-ECO, 2 Liter autoclavable, incl. cap
1-channel stainless tip 60 mm, Φ 1.5 mm
1-channel stainless tip 60 mm, Φ 2.5
1-channel stainless tip 120 mm, Φ 1.5 mm
1-channel stainless tip 120 mm, Φ 2.5 mm
8-channel stainless tip 60 mm
200 µl tip adapter
1,000 µl tip adapter
200 µl tip adapter, 8-channel
Filter 0.45 µm, 1 pc.
