Lab Jacks
LJ-Series
Brand new line of LabJacks. Designed with a height-adjustable platform, for supporting and adjusting the height of general lab devices such as hot plates, water baths, etc. as well as glassware.
The lab jacks are provided with good corrosion resistance and resistance to many chemicals, they are mainly made of aluminum alloy materials.
• Easy adjustment with an adjusting wheel
• High stability and torsional rigidity
• stable stand
• High load carrying capacity and resilience
• Fully autoclavable at 121°C for sterile application
LJ-01
LJ-02
LJ-03
Modell
Base Size
Vertical Lift
Static Load
Dynamic Load
LJ-01
80 x 76 mm
48 x 148 mm
3,6 kg
2 kg
LJ-02
140 x 120 mm
58 x 242 mm
10 kg
5.2 kg
LJ-03
150 x 121 mm
78 x 278 mm
20 kg
8 kg

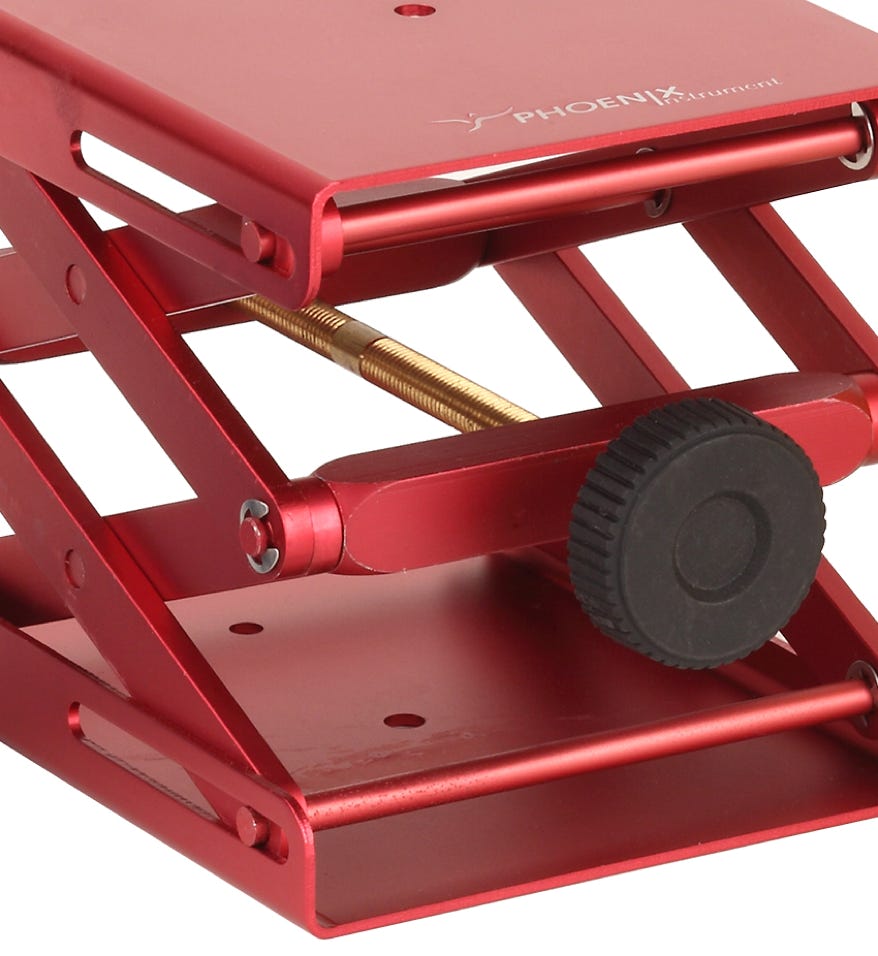

Adjusting wheel
