DHS - The Digital Revolution
DHS, Digital High Sensor, is our new pH-sensor technology. These electrodes have an internal chip and stores all relevant calibration data, date of last calibration, slope, model and production batch.
If you connect a DHS-electrode with an DHS instrument, all data will be transferred from the chip into the instrument and the user can start immediately with its measurements without any additional calibrations. The new DHS-electrodes do not need an internal battery and can be connected by a normal BNC-connector.
All instruments equipped with the new DHS technology can also be equipped with normal analog pH-electrodes. PH measurement was never easier.
Digital High Sensor pH Electrode
All electrodes can be maintained and calibrated by one central person in the lab.
In use, every electrode will be allocated
to one pH-meter
Portable pH-Meter EC-21 pH and EC-26 pH
In the development of the new EC-21/EC-26 series, a particular focus was put on easy handling during daily routine.
The high-resolution color display guides the user intuitively through all measurement and calibration processes.
3 Years
Instrument Warranty
Additional for EC-26 pH
• GLP functions
• Data logger (automatic or manual)
1000 data records
• Connection to PC via micro-USB
• free DATA LINK +
• automatic brightness adjustment
• high-resolution colour display, adjustable brightness
• DHS function, automatic recognition of DHS and analogue sensors
• Display of pH/mV and temperature values
• automatic pH calibration up to 3 points
• automatic ORP 1-point calibration
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 57

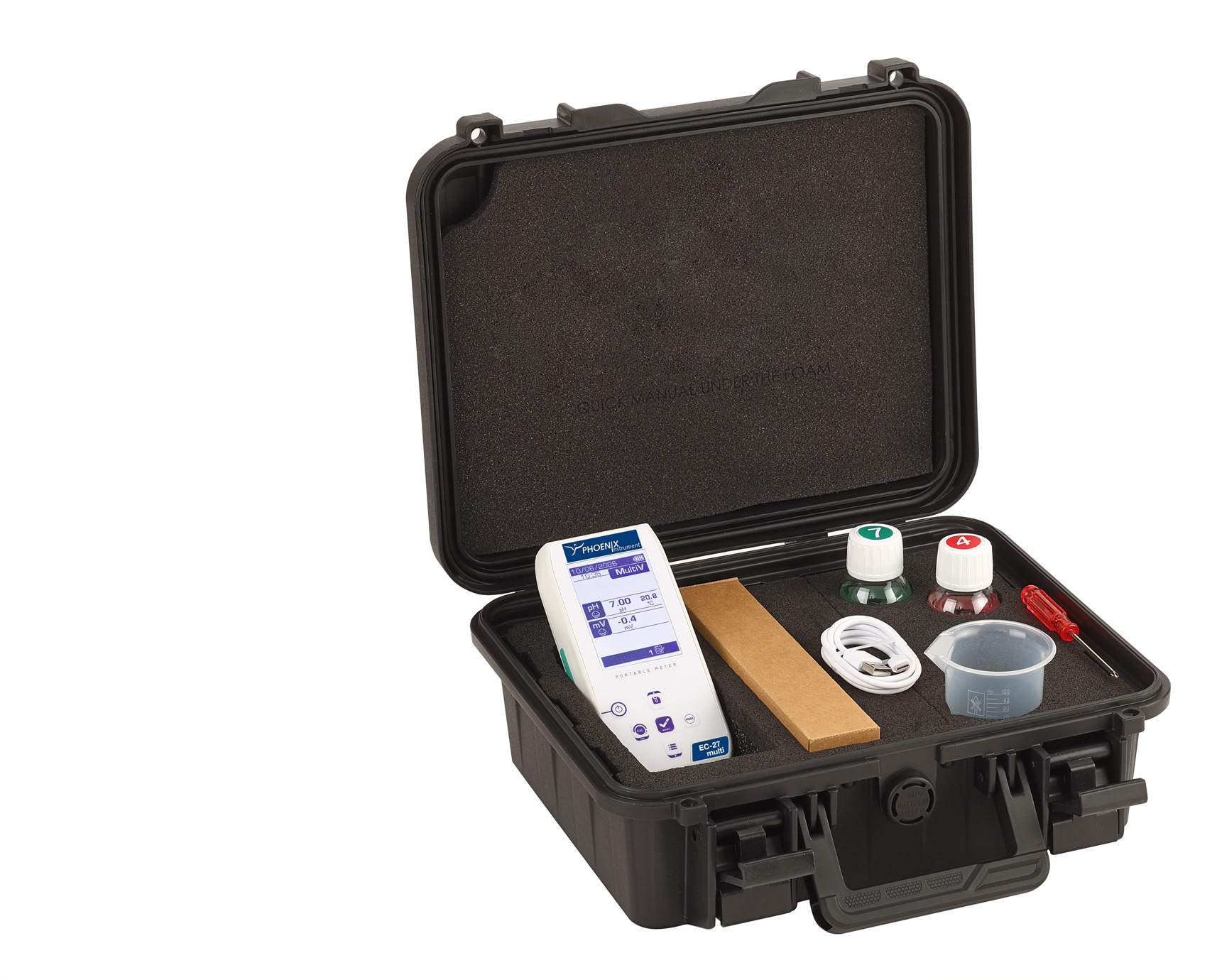

• Supplied in a robust transport case with all accessories
Technical data
Meas. range
Resolution
Calibration points
Buffer resolution
Measuring range
Resolution
Temp. measuring range
Resolution / accuracy
GLP
Calibration alarm
Memory
Interface
IP-class
Dimension
Weight
EC-21 pH
0.00 … 14.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and
user defined
± 1,000 mV
1 mV
0,0 … 100 °C
0.1 / ± 0,5 °C
no
no
no
no
IP 57
185 x 85 x 45 mm
400 g
EC-26 pH
-2.00 … 16.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and
user defined
- 1,000 … 1,900 mV
0.1 / 1 mV
-10 - 110 °C
0.1 / ± 0.5 °C
yes
yes
1,000 data
Micro USB
IP 57
185 x 85 x 45 mm
400 g
Available Sets
EC-21-pH-0
EC-21-pH-1
EC-21-pH-5
EC-26-pH-0
EC-26-pH-1
EC-26-pH-5
Kit without pH electrode, with temperature sensor, cable S7/BNC, pH buffer solution, carrying case and accessories
Kit included pH electrode 201T, pH buffer solution, carrying case and accessories
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessories
Kit without pH electrode, with temperature sensor, cable S7/BNC, pH buffer solution, carrying case and accessories
Kit included pH electrode 201T, pH buffer solution, carrying case and accessories
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessories

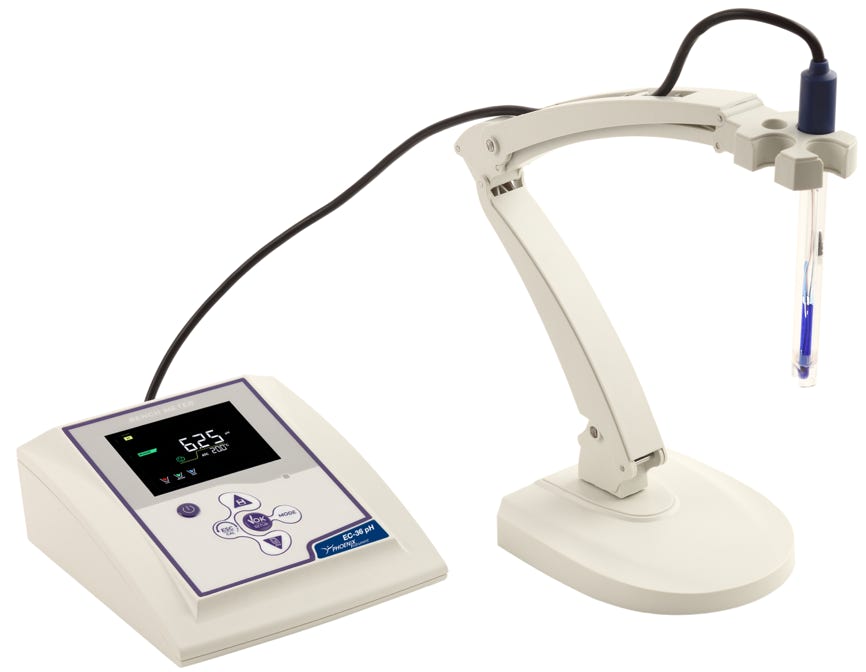

Basic Benchtop pH-Meter EC-31 pH and EC-36 pH
• high-resolution color display, adjustable brightness
• DHS function, automatic recognition of DHS and analogue sensors
• Display of pH/mV and temperature values
• automatic pH calibration up to 3 points
• automatic ORP 1-point calibration
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 54
3 Years
Instrument Warranty
Additional for EC-36 pH
• GLP functions
• Data logger (automatic or manual) 1,000 data records
• Connection to PC via micro-USB
• free DATA LINK +
Technical data
Meas. range
Resolution
Calibration points
Buffer resolution
Measuring range
Resolution
Temp. measuring range
Resolution / accuracy
GLP
Calibration alarm
Memory
Interface
IP-class
Dimension
Weight
EC-31 pH
0.00 … 14.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and user defined
± 1,000 mV
1 mV
0.0 … 100 °C
0.1 / ± 0,5 °C
no
no
no
no
IP 54
170 x 145 x 60 mm
530 g
EC-36 pH
-2.00 … 16.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and user defined
- 1,000 … 1,900 mV
0.1 / 1 mV
-10 - 110 °C
0.1 / ± 0.5 °C
yes
yes
1.000 data
Micro USB
IP 54
170 x 145 x 60 mm
530 g
Available Sets
EC-31-pH-0
EC-31-pH-1
EC-31-pH-5
EC-36-pH-0
EC-36-pH-1
EC-36-pH-5
Kit without pH electrode, with temperature sensor, cable S7/BNC,
pH buffer solution, electrode holder
Kit included pH electrode 201T, pH buffer solution, electrode holder
Kit included pH electrode 201T-DHS, pH buffer solution, electrode holder
Kit without pH electrode, with temperature sensor, cable S7/BNC,
pH buffer Solution, electrode holder
Kit included pH electrode 201T, pH buffer solution, electrode holder
Kit included pH electrode 201T-DHS, pH buffer solution, electrode holder
Professional Benchtop pH Meter EC-45 pH
• Display pH/mV and Temperature parameters simultaneously
• Resolution: 0.001 pH
• Automatic Calibration up to 5 points with automatic buffer recognition
• DHS-function, automatic recognition of DHS- and analog electrodes
• GLP and IQ-OQ manual available
• Large, colored graphic display
• Memory with re-call of last calibration date and time and information of electrode’s life
• CAL DUE: set of calibration frequency for high quality of measurements
• Non-volatile memory holds up to 1,000 data points with date/ time in automatic (Data logger) or manual
• External keypad
• 2 x USB ports and 1 x RS-232 interface to transfer data at PC or printer and for external keyboard
• Instrument can be equipped with a magnetic stirrer
• IP54 rated housing handles splashes
3 years
Instrument Warranty

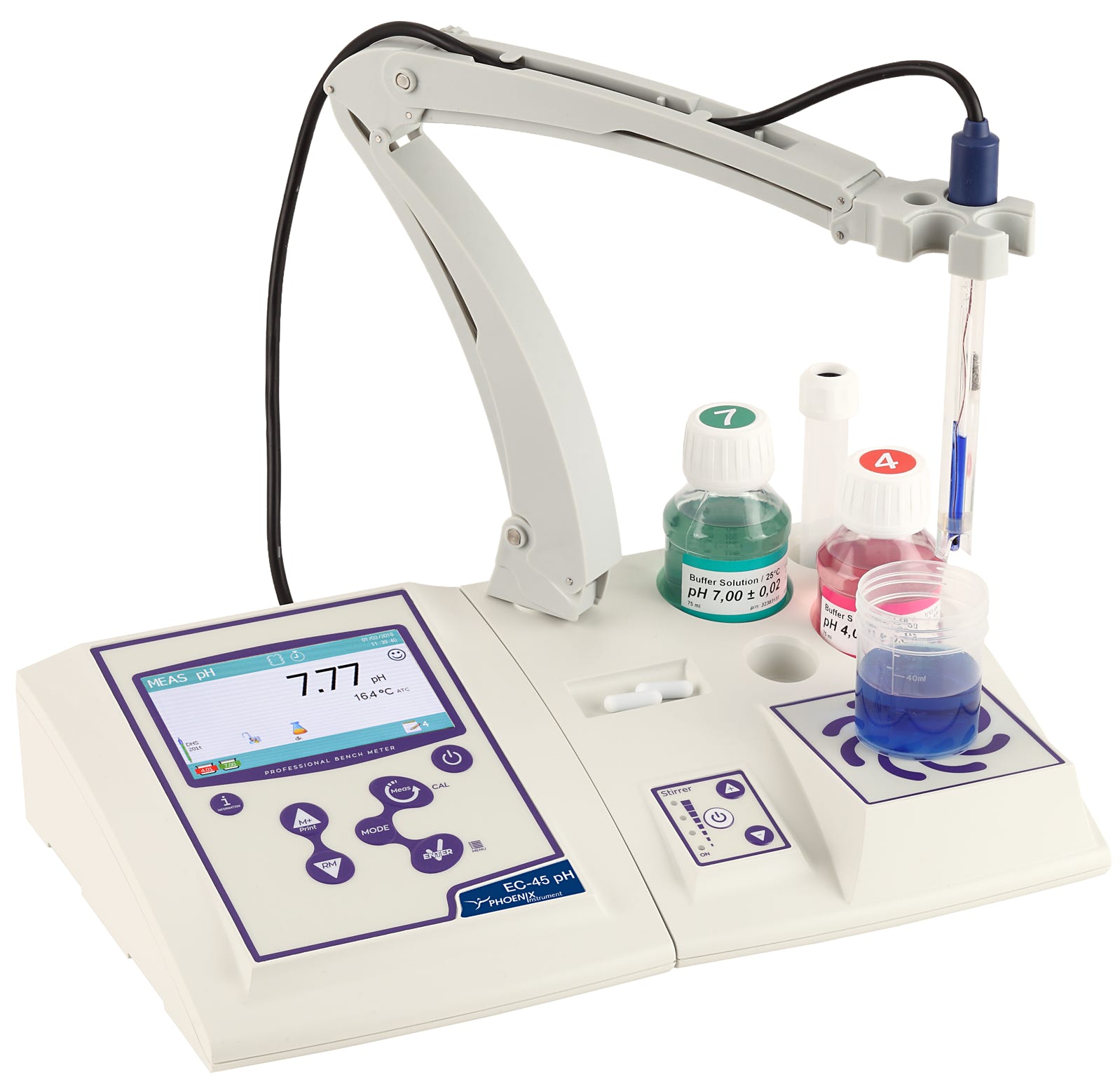

EC-45 pH with electrode arm and optional stirrer
Technical data
Meas. range
Resolution
Buffer solution
Calibration points
Buffer recocnition
Measuring range
Resolution
Measuring range
Resolution
DHS Electrode
Buffer resolution
Timer
GLP
Interface
Display
IP-class
Power supply
Weight
Dimension
EC-45 pH
-2 … 20 pH
0,1 / 0,01 / 0,001 pH
1 … 5 / USA, NIST, DIN, user defined
1 … 5
yes
± 2,000 mV
0.1 / 1 mV
-30.0 … 130.0 °C
± 0.1 °C
yes
1,000 data
yes
yes
2 x USB, RS-232
Colored graphic display
IP 54
Adapter 12 V DC
1,050 g, without stirrer
165 x 195 x 68 mm
Available Sets
EC-45-pH-0
EC-45-pH-1
EC-45-pH-2
EC-45-pH-3
EC-45-pH-5
EC-45-pH-6
1001502
Kit without pH electrode, with cable S7/BNC, temperature probe NT55, DHS-function,
pH buffer solution pH 7 and pH 4, electrodes arm, keypad, power supply and accessories
Complete kit included pH electrode STANDARD, DHS-function, temperature probe NT55, S7/BNC 1 m cable, pH buffer solution pH 7 and pH 4, electrodes arm, power supply, keypad, accessories
Kit without pH electrode, with cable S7/BNC, temperature probe NT55, DHS-function, pH buffer solution pH 7 and pH 4, electrodes arm, power supply, keypad with magnetic stirrer
Complete kit included pH electrode STANDARD, temperature probe NT55, S7/BNC 1 m cable, DHS-function, pH buffer solution pH 7 and pH 4, electrodes arm, keypad, power supply, with magnetic stirrer
Complete kit included pH electrode STANDARD-DHS, DHS-function, temperature probe NT55, S7/BNC 1 m cable, pH buffer solution, electrodes arm, power supply, keypad and accessories
Complete kit included pH electrode STANDARD-DHS, DHS-function, temperature probe NT55, S7/BNC 1 m cable, pH buffer solution, electrodes arm, power supply, keypad, accessories, with magnetic stirrer

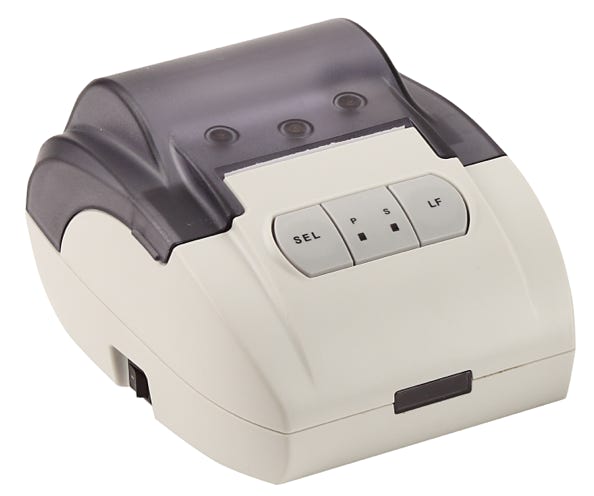

Printer for EC-35 and EC-45
Printer 1001502

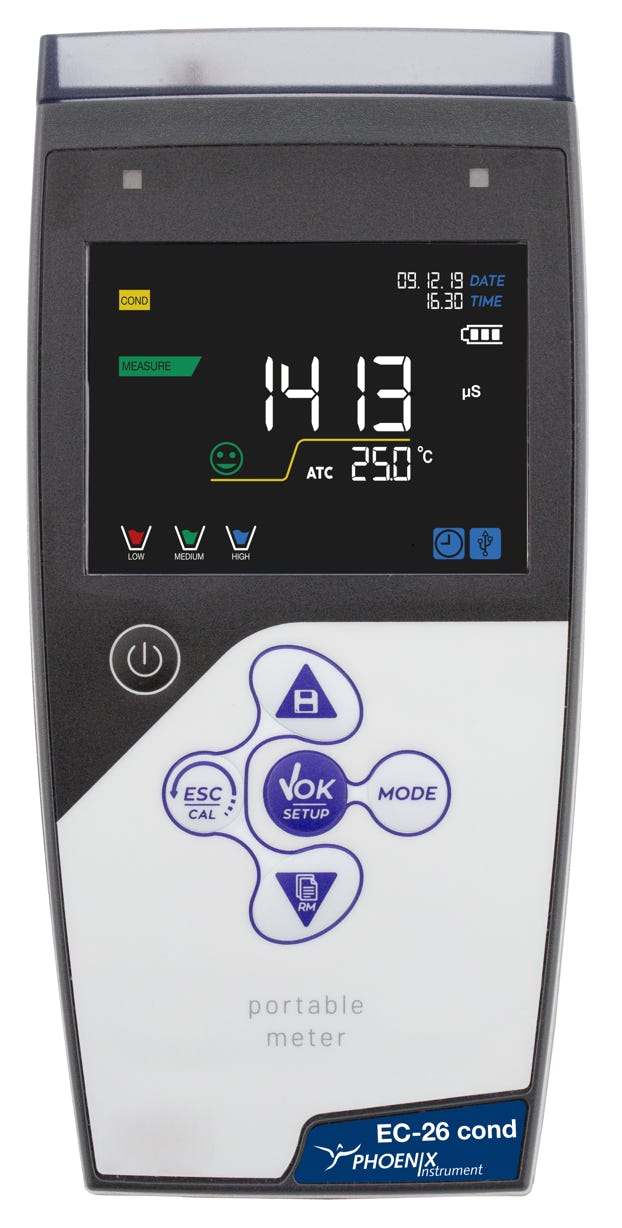

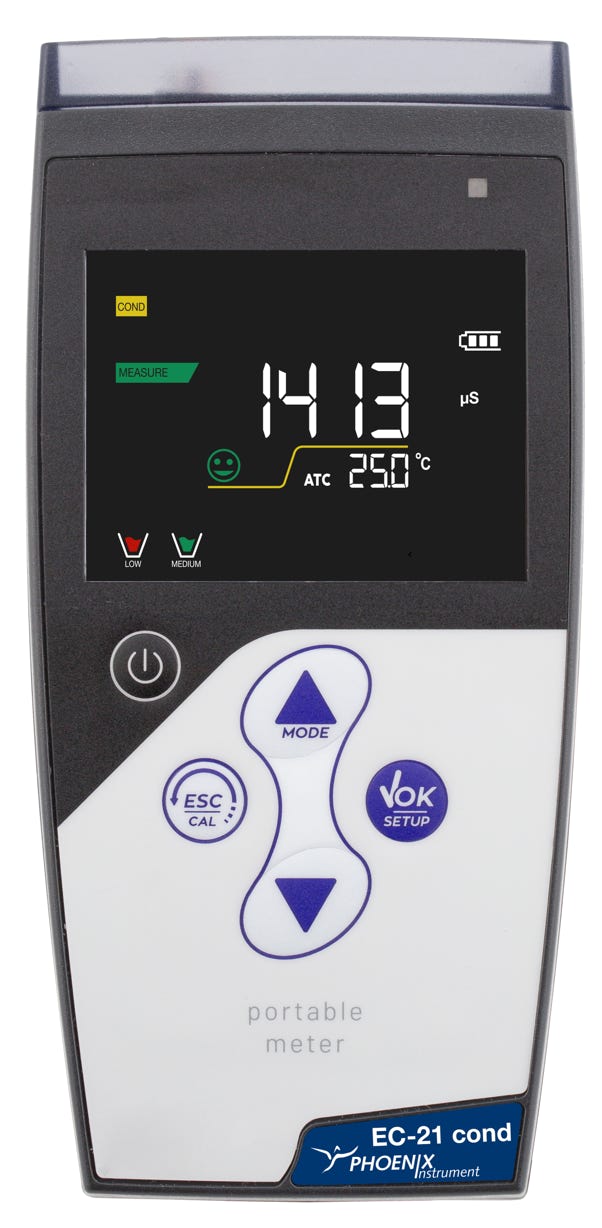

Portable Conductivity Meter EC-21 cond and EC-26 cond
In the development of the new EC-21/EC-26 series, particular emphasis was put on easy handling during daily routine.
The high-resolution color display guides the user intuitively through all measurement and calibration processes.
Additional for EC-26 pH
• GLP functions
• Data logger (automatic or manual)
1000 data records
• Connection to PC via micro-USB
• free DATA LINK +
• automatic brightness adjustment
3 years
Instrument Warranty
• high-resolution colour display, adjustable brightness
• DHS function, automatic recognition of DHS and analogue sensors
• Display of Conductivity/TDS and temperature values
• automatic Conductivity calibration up to 5 points
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 57
• Supplied in a robust transport case with all accessories
Technical data
Meas. range conductivity
Accuracy
Calibration points
Selectable cell constant
Temp. range
Resolution / accuracy
TDS meas. range
GLP
Calibration alarm
Memory
Interface
IP class
Dimension
Weight
EC-21 cond
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
0,0 … 100 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
no
no
no
no
IP 57
185 x 85 x 45 mm
400 g
EC-26 cond
0,00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
-10 … 110 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
yes
yes
1,000 data
Micro USB
IP 57
185 x 85 x 45 mm
400 g
Available Sets
EC-21-cond-0
EC-21-cond-1
EC-26-cond-0
EC-26-cond-1
Kit without cell, with standard calibration solutions, carrying case and accessories
Complete kit include cond. Cell 2301T with ATC, cable length 1m and BNC plug,
standard calibration solutions, carrying case and accessories
Kit without cell, with standard calibration solutions, power supply, software PC-Link,
USB cable, carrying case with accessories
Complete kit include cond. Cell 2301T with ATC, cable length 1m and BNC plug,
Standard calibration solutions, power supply, software PC-Link to download data, USB cable, carrying case with accessories.
Basic Benchtop Conductivity EC-31 cond and EC-36 cond
• high-resolution colour display, adjustable brightness
• Display of Conductivity/TDS and temperature values
• automatic conductivity calibration up to 5 points
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 54
3 years
Instrument Warranty
Additional for EC-36 cond
• GLP functions
• Data logger (automatic or manual) 1,000 data records
• Connection to PC via micro-USB
• free DATA LINK +
Technical data
Meas. range conductivity
Accuracy
Calibration points
Selectable cell constant
Temp. range
Resolution / accuracy
TDS meas. range
GLP
Calibration alarm
Memory
Interface
IP class
Dimension
Weight
EC-31 cond
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
0.0 … 100 °C
0.1 / ± 0,5 °C
0.1 mg/l … 200 g/l
no
no
no
no
IP 54
185 x 85 x 45 mm
530 g
EC-36 cond
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
-10 – 110 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
yes
yes
1,000 data
Micro USB
IP 54
185 x 85 x 45 mm
530 g
Available Sets
EC-31-cond-0
EC-31-cond-1
EC-36-cond-0
EC-36-cond-1
Kit without cell, with standard calibration solutions, cell holder and accessories
Complete kit include cond. Cell 2301T with ATC, cable length 1m and BNC plug, standard calibration solutions, cell holder and accessories
Kit without cell, with standard calibration solutions, power supply,
software PC-Link, USB cable, cell holder and accessories
Complete kit include cond. Cell 2301T wit ATC, cable length 1m and BNC plug, Standard calibration solutions, power supply, software PC-Link, USB cable,
cell holder and accessories

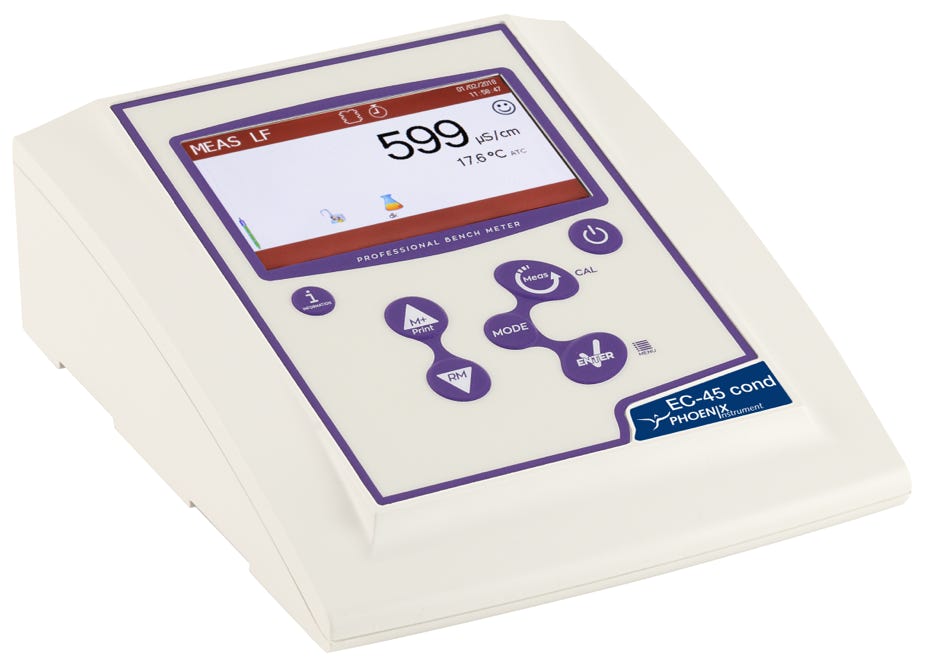

Professional Conductivity Benchtop Meter EC-45 cond
• Display COND/TDS, Salinity and Temperature simultaneously
• Resolution: automatic scale
• GLP-conform
• external keypad
• Selectable cell constant allows for use with 2 plate cell
• Automatic calibration 1 to 4 points between 4 conductivity standard values
• Manual-Calibration up to 1 points (User defined)
• Large colored graphic display with indication of Calibration Standards and measurement’s stability
• Automatic and manual compensation of temperature with reference value 15 … 30 °C
• Memory with re-call of last calibration date and time and information of cell constant
• CAL DUE: set of calibration frequency for high quality of measurements
• Non-volatile memory holds up to 1,000 data points with date and time Data logger
• 2x USB ports and 1 x RS-232 interface to transfer data and software PC-Link to download data
• Instrument can be delivered with a magnetic stirrer
• IP54 Protection
3 years
Instrument Warranty

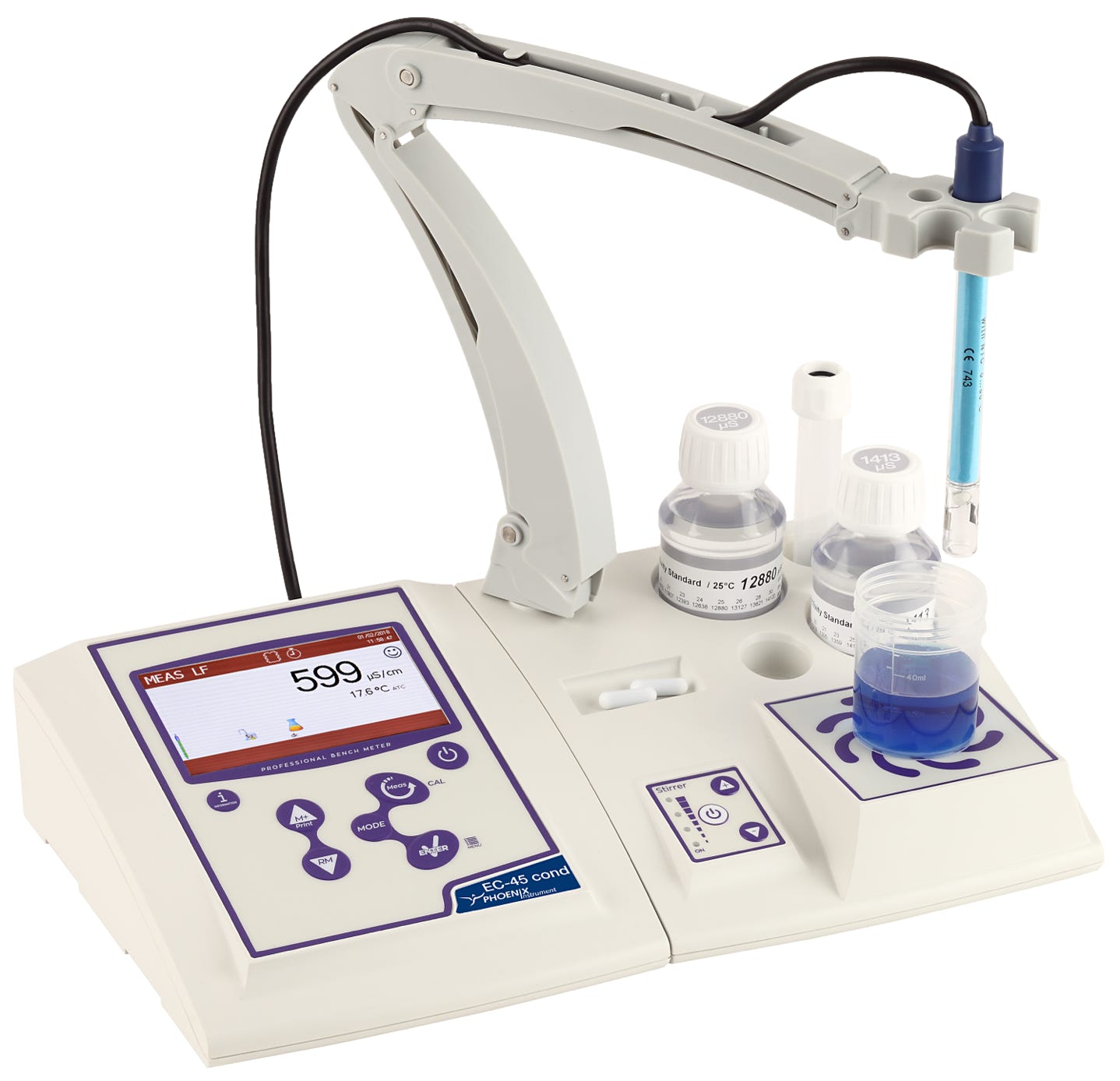

EC-45 cond with stand and optional stirrer
Technical data
Mesuaring range (cond)
Resolution (cond)
Calibration Standards
Calibration points
Selectable cell type constant
Reference temperature
Temp. compensation
Measuring range
Resolution
TDS-measuring range
TDS-Faktor
Salinity
Resistivity
Memory
Timer
GLP
Interfaces
Display
Ip protection
Power supply
Weight
Dimension
EC-45 cond
0.00 - 20.00 - 200.0 - 2,000 μS
2.00 - 20.00 - 200.0 - 1,000 mS
Automatic full scale
84; 1413 μS; 12.88; 111.8 mS; user
1 … 4
0.55 (4 rin 0.1 – 1 – 10)
15 … 30 °C
0.00 … 100.0 °C
-30.0 … 130.0 °C
± 0.5 °C
0 … 500 g/l
0.40 … 1.00
0.01 … 100 ppt
1 … 10 MΩ
1,000 data
yes
yes
2 x USB, RS-232
Color graphic display
IP 54
Adapter 12 V DC
1.050 g, without stirrer
165 x 195 x 68 mm
Avaliable Sets
EC-45 cond 0
EC-45 cond 1
EC-45 cond 2
EC-45 cond 3
Kit without conductivity cell, standard solution 1413 µS and 12,88 mS, cell holder and accessories
Kit included conductivity cell Glass-Pt VPT80/1, standard solution 1413 µS and 12,88 mS, cell holder, power supply and accessories
Kit without, with standard solution 1413 µS and 12,88 mS, cell holder and accessories,
with magnetic stirrer
Kit included cell Glass-Pt VPT80/1, standard solution 1413 µS and 12,88 mS, cell holder
and accessories, with magnetic stirrer
Portable Multiparameter Meter EC-21 multi and EC-26 multi
3 years
Instrument Warranty
Additional for EC-26 multi
• GLP functions
• Data logger (automatic or manual)
1000 data records
• Connection to PC via micro-USB
• free DATA LINK +
• automatic brightness adjustment
• high-resolution colour display, adjustable brightness
• Display of pH/mV, Conductivity/TDS, temperature values
• automatic Conductivity calibration up to 5 points
• automatic pH calibration up to 3 points
• automatic ORP 1-point calibration
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 57
• Supplied in a robust transport case with all accessories
Technical data
Measuring range
Accuracy
Calibration points
Buffer resolution
Measuring range cond
Accuracy cond
Calibration points
Selectable cell constant
Temperature meas. range
Resolution / accuracy
TDS meas. range
GLP
Calibration alarm
Memory
Interface
IP-class
Dimension
Weight
EC-21 multi
0.00 … 14.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and
user defined
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
0.0 … 100 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
no
no
no
no
IP 54
185 x 85 x 45 mm
530 g
EC-26 multi
0.00 … 14.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and
user defined
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
-10 … 110 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
yes
yes
1,000 data
Micro USB
IP 54
185 x 85 x 45 mm
530 g
Available Sets
EC-21-multi-0
EC-21-multi-1
EC-21-multi-5
EC-26-multi-0
EC-26-multi-1
EC-26-multi-5
Kit without pH-electrode, with conuctivity cell 2301T, with standard calibration solutions, Temperature sensor, cable S7/BNC, carrying case with accessories
Complete kit include pH electrode 201T and cond. Cell 2301T with ATC, both cable length 1m and BNC plug, standard calibration solutions, carrying case and accessories
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessories
Kit without pH-electrode and cell, standard calibration solutions, power supply, software PC-Link, USB cable, carrying case with accessories
Kit include pH-electrode 201T and cell 2301T with ATC, cable length 1m and BNC plug, standard cal. solutions, power supply, software PC-Link , USB- cable, carrying case with accessories
Kit included pH electrode 201T-DHS, pH buffer solution, carrying case and accessories
Basic Benchtop Multi Meter EC-31 multi and EC-36 multi
• high-resolution colour display, adjustable brightness
• Display of pH/mV, Conductivity/TDS and temperature values
• automatic Conductivity calibration up to 5 points
• automatic pH calibration up to 3 points
• automatic ORP 1-point calibration
• selectable stability parameter (low-medium-high)
• automatic and manual temperature compensation
• Protection class IP 54
3 years
Instrument Warranty
Additional for EC-36 cond
• GLP functions
• Data logger (automatic or manual) 1000 data records
• Connection to PC via micro-USB
• free DATA LINK +
Technical data
Measuring range
Accuracy
Calibration points
Buffer resolution
Measuring range cond
Accuracy cond
Calibration points
Selectable cell constant
Temperature meas. range
Resolution / accuracy
TDS meas. range
GLP
Calibration alarm
Memory
Interface
IP-class
Dimension
Weight
EC-31 multi
0.00 … 14.00 pH
0.1 / 0,01 pH
1 … 3
USA, NIST and
user defined
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
0.0 … 100 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
no
no
no
no
IP 54
185 x 85 x 45 mm
530 g
EC-36 multi
0.00 … 16.00 pH
0.1 / 0.01 pH
1 … 3
USA, NIST and
user defined
0.00 … 200 mS
0.1/1 μS; 0.01/0.1 mS
1 … 5
0.1 – 1 – 10 cm⁻¹
-10 … 110 °C
0.1 / ± 0.5 °C
0.1 mg/l … 200 g/l
yes
yes
1,000 data
Micro USB
IP 54
185 x 85 x 45 mm
530 g
Available Sets
EC-31-multi-0
EC-31-multi-1
EC-31-multi-5
EC-36-multi-0
EC-36-multi-1
EC-36-multi-5
Kit without pH-electrode, with conuctivity cell 2301T, with standard calibration solutions, Temperature sensor, cable S7/BNC, pH buffer solutions, electrode holder
Complete kit include pH electrode 201T and cond. Cell 2301T with ATC, both cable length 1m and BNC plug, standard calibration solutions, pH buffer solutions,
electrode holder
Complete kit include pH electrode 201T-DHS and cond. Cell 2301T with ATC,
both cable length 1m and BNC plug, standard calibration solutions,
pH buffer solutions, electrode holder
Kit without pH-electrode, with conuctivity cell 2301T, with standard calibration solutions, Temperature sensor, cable S7/BNC, pH buffer solutions, electrode holder
Complete kit include pH electrode 201T and cond. Cell 2301T with ATC, both cable length 1m and BNC plug, standard calibration solutions, pH buffer solutions,
electrode holder
Complete kit include pH electrode 201T-DHS and cond. Cell 2301T with ATC,
both cable length 1m and BNC plug, standard calibration solutions,
pH buffer solutions, electrode holde
Professional Benchtop Multiparameter Meter EC-45 multi
• Display pH/mV,COND/TDS, Salinity and Temperature simultaneously
• Resolution: 0.1-0.001 pH; Auto range for Cold
• GLP-conform
• Selectable cell constant allows for use with 2 plate cell
• Large colored graphic display with indication of Calibration Buffers and measurement’s stability
• Indication stability of the measurement with icon
• Memory with re-call of last calibration date and time and information of electrode’s life
• CAL DUE: set of calibration frequency for high quality of measurements
• Stability Parameter (Low-Med-High) for high accuracy measurement
• Non-volatile memory holds up to 1,000 data points with date and time
in automatic (Data logger) or manual
• 2x USB ports to transfer data at PC or printer and for external keyboard
• Software PC-Link to download data (included)
• external keypad
• Intrument can be delivered with magnetic stirrer
• IP54 protection
3 years
Instrument Warranty
EC-45 multi with stand and optional stirrer
Technical data
Measuring range
Accuracy
Buffer
Calibration points
Buffer recognition
Meas. range
Accuracy
Meas. range
Accuracy
DHS-Electrode
Meas. range cond
Accuracy cond
Buffer
Calibration points
Selectable cell constant
Reference temperature
Temp. compensation
TDS-Meas. range
TDS-Factor
Salinity
Resistivity
Speicher
Timer
GLP
Interface
Display
IP-class
Power supply
Dimension
Weight
EC-45 multi
-2 … 20 pH
0.1 / 0.01 / 0.001 pH
1 … 5 /USA, NIST, DIN, User
1 … 5
yes
± 2,000 mV
0.1 / 1 mV
-20.0 … 120,0 °C
± 0.5 °C
yes
0.00 - 20.00 - 200.0 - 2000 μS /
2.00 - 20.00 - 200.0 - 1000 mS
Automatic full scale
84, 1413 μS, 12.88, 111.8 mS, User
1…5
0,1 – 1 – 10 cm-1
15 … 30 °C
0.00 … 10.00 % °C
0 … 500 g/l
0.40 … 1.00
0.01 … 100 ppt
02 … 20 MΩ
1.000 data
yes
yes
2 x USB, RS-232
Color display
IP 54
Adapter 12 V DC
165 x 195 x 68
1.050 g without stirrer
Available Sets
EC-45-multi-2
EC-45-multi-3
EC-45-multi-5
Kit without pH electrode and cell, with cable S7/BNC, temp. probe NT55, pH buffer solution pH 7 and pH 4, conductivity solution 1413 µS and 12,88 mS, DHS-function, Keypad and accessories, with magnetic stirrer
Kit included pH electrode XS STANDARD S7, 1 mt cable S7/BNC, cell glass VPT 80/1 with ATC, DHS-function, pH buffer solution pH 7 and pH 4, standard conductivity solution 1413 µS and 12,88mS, keypad and accessories, with magnetic stirrer
Kit included pH electrode XS STANDARD-DHS S7, 1 mt cable S7/BNC, cell glass VPT 80/1 with ATC, DHS-function, pH buffer solution pH 7 and pH 4, standard conductivity solution 1413 µS and 12,88mS, keypad and accessories,
with magnetic stirrer
Tester EC-15
with replaceable sensor

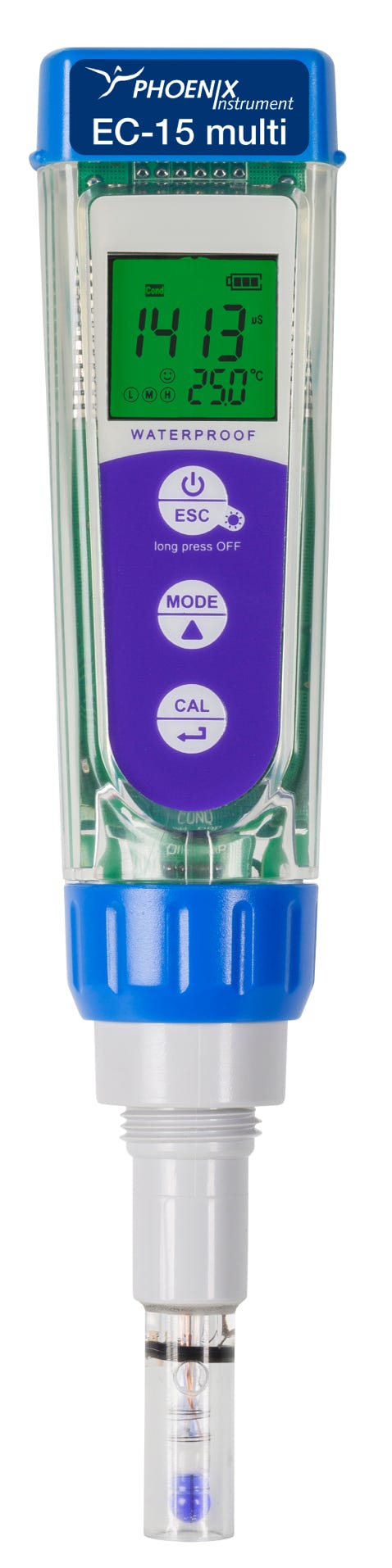

EC-15 multi
• automatic calibration function incl. stability icon
• 3-color backlit LCD-display
(Measurement – Calibration – Alarm)
• pH-electrodes and conductivity cells also
available with cable
• IP 67 waterproof
• easy replaceable sensor
• 2 x 1,5 V AAA Batteries, Display of battery level
EC-15pH pH/mV/°C
• Measuring range: -2 …16 pH, Resolution: 0.01 pH
• 1 … 3 points calibration
EC-15pH Food pH/mV/°C
• Measuring range: -2 … 16 pH, Resolution 0.01 pH
• 1 … 3 points calibration
• with replaceable spear pH electrode
EC-15-COND Cond/TDS/Salinity/°C
• Cond scale: 0 … 200 µS - 0 … 2,000 µS - 0 … 20 mS
• 1 … 3 points calibration
EC-15-Multi pH/mV/ Cond/TDS/Salinity/°C
• Measuring range: -2 … 16 pH, Resolution 0.01 pH
• 1 … 3 points calibration
• COND scale: 0 … 200 µS - 0 … 2,000 µS - 0 … 20 mS
• 1 … 3 points calibration
Technical data
pH Meas. range
pH resolution
Calibration points
Electrode condition alarm
Stability meas. indication
mV meas. range
mV resolution
Cond meas. range
Cond accuracy
Calibration points
TDS meas. range
TDS relative accuracy
Temperature range
Resolution
Dimension (Ø x L)
Weight
EC-15 pH/Food*
-2 … 16
0.01
1 … 3
yes
yes
± 1,000
0.1 / 1
0 … 50 °C
0.1 °C
35 x 175 mm
35 x 210 mm*
130 g
EC-15 Cond
yes
yes
0-200 µs; 0-2.000 µS, 0-20 mS
Automatic scale
1 … 3
0.1 ppm … 10 ppt
± 1% full scale
0 … 50 °C
0.1 °C
35 x 175 mm
130 g
EC-15 multi
-2 … 16
0.01
1 … 3
yes
yes
± 1,000
0.1 / 1
0-200 µs; 0-2,000 µS; 0-20 mS
Automatic scale
1 … 3
0.1 ppm … 10 ppt
± 1% full scale
0 … 50 °C
0.1 °C
35 x 175 mm
130 g
Available Sets
EC-15-pH eco
EC-15-pH /pH Food
EC-15-Cond eco
EC-15-Cond
EC-15-Multi
Tester, 1 extra cap, batteries
Tester, 1 extra cap, pH 7 and pH 4 buffer solution, storage solution, neck strap, paper towel, 2x 1,5V AAA batteries, box
Tester, 1 extra cap, batteries
Tester, 1 extra cap, 1413µS and 12,88mS cond. standard solution, neck strap, paper towel, 2x 1,5V AAA batteries, box
Tester, 1 extra cap, pH 7 and pH 4 buffer solution, storage solution, 1413µS cond. standard solution, neck strap,
paper towel, 2x 1,5V AAA batteries, box
Tester EC-10

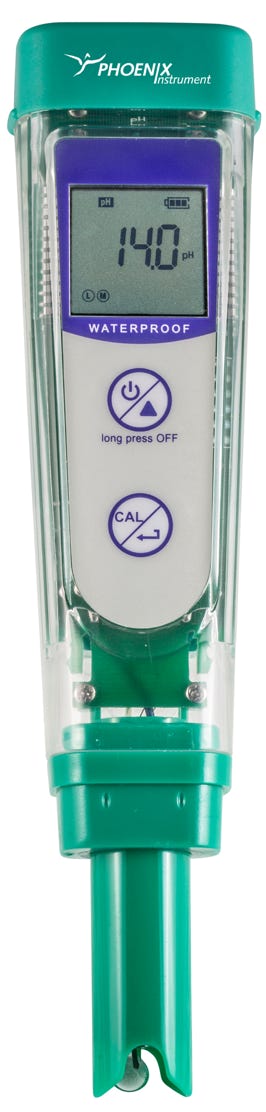

EC-10 pH

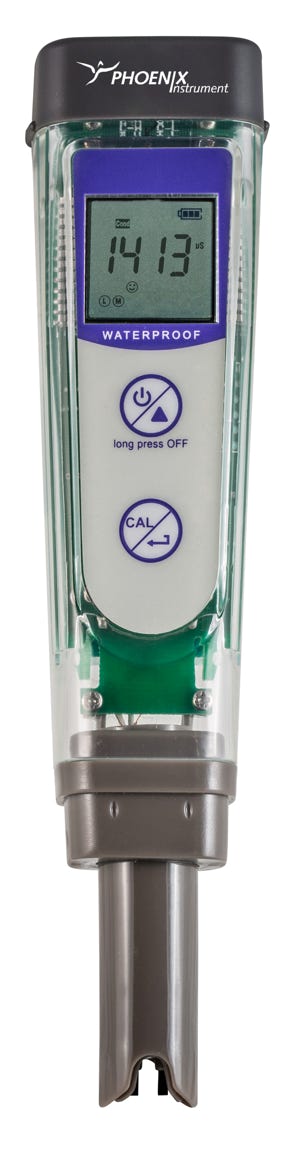

EC-10 Cond
• Large LCD display
• IP 67 waterproof protection
• Buffers used for calibration indication
• Measurement stability indicator
• Automatic temperature compensation
• 2 x 1.5 V AAA batteries for long working time
Available Sets
EC-10-pH
Tester, 1 extra cap, pH 7 and pH 4 buffer solution, storage solution,
neck strap, paper towel, 4 x 1.5 V AAA batteries, carrying case.
EC-10-Cond
Tester, 1 extra cap, 1x 55 ml 1413 µS and 12.88 mS cond. standard solution,
neck strap, paper towel, 4 x 1.5 V AAA batteries, carrying case.
EC-10-pH-Eco
Tester, 1 extra cap, batteries
EC-10-Cond-Eco
Tester, 1 extra cap, batteries
Warranty
Instrument: 1 Year
Sensor: 6 Month
Technical data
pH Meas. range
pH resolution
Calibration points
Buffer recognition
Electrode condition alarm
Cond mes. range
Cond resolution
Calibration points cond
Cal. standard recocnition
TDS meas. range
TDS relative accuracy
Auto off
Dimension ø x L
Weight
EC-10pH
0 … 14 pH
0.1
1 … 2
3 USA buffer
yes
-
-
-
-
-
-
after 8 minutes
35 x 175 mm
120 g
EC-10 Cond
-
-
-
-
yes
0-2.000 µS, 0-20 mS
automatic scale
1 … 2
1,413 µS, 12.88 mS
0.1 ppm … 10 ppt
± 1% full scale
after 8 minutes
35 x 175 mm
120 g
800033
800133
800233
800043
800143
800243
800073
800173
800273
800063
800163
800263

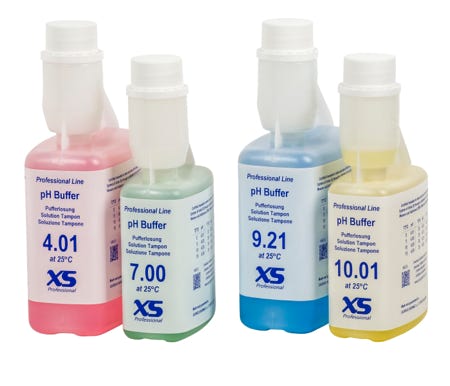

pH Buffer Solutions
Buffer pH4, ± 0.01 / 25 °C, 250 ml bottle, red
Buffer pH4, ± 0.01 / 25 °C, 500 ml bottle, red
Buffer pH4, ± 0.01 / 25 °C, 5 Liter red

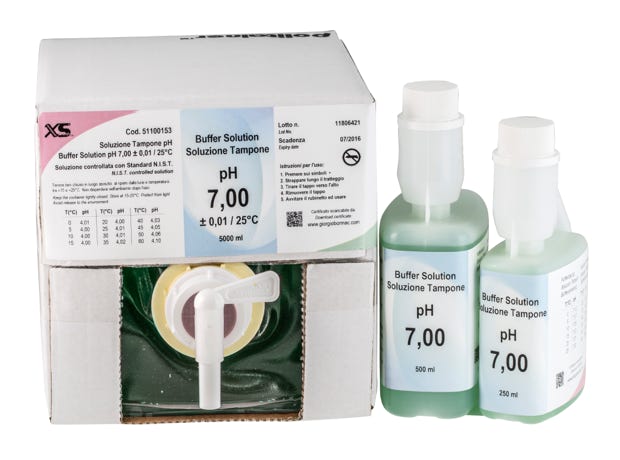

Buffer pH7, ± 0.01 / 25 °C, 250 ml bottle, green
Buffer pH7, ± 0.01 / 25 °C, 500 ml bottle, green
Buffer pH7, ± 0.01 / 25 °C, 5 Liter green
Buffer pH9,21, ± 0.02 / 25 °C, 250 ml bottle, blue
Buffer pH9,21, ± 0.02 / 25 °C, 500 ml bottle, blue
Buffer pH9,21, ± 0.02 / 25 °C, 5 Liter blue
Buffer pH10, ± 0.02 / 25 °C, 250 ml bottle, clear
Buffer pH10, ± 0.02 / 25 °C, 500 ml bottle, clear
Buffer pH10, ± 0.02 / 25 °C, 5 Liter clear
pH Storage Solutions
1008013
3M KCl-solution, 500 ml
DAKKS certified buffer solutions
are available as well
800613
800633
800643
850513
850313
850303

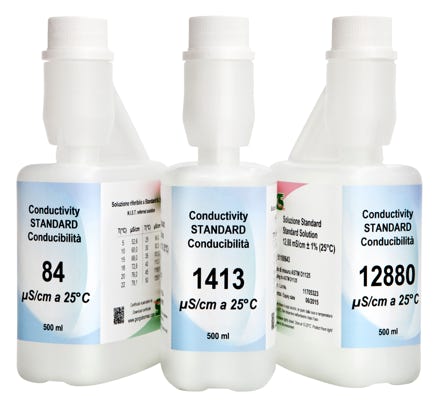

Conductivity-Standards
Conductivity standard 84 µS/cm ± 1% / 25 °C, 500 ml bottle
Conductivity standard 1,413 µS/cm ± 1% / 25 °C, 500 ml bottle
Conductivity standard 12,880 µS/cm ± 1% / 25 °C, 500 ml bottle
Conductivity-Standard 5 µS/cm ± 0.1 / 25 °C, 300 ml bottle with N.I.S.T Certificate
Conductivity-Standard 5 µS/cm ± 0.1 / 25 °C, 300 ml bottle with DFM Certificate
Conductivity-Standard 1.3 µS/cm ± 0. / 25 °C, 300 ml bottle with DFM Certificate
Redox Buffer
800303
800313
800323
250 ml Redox/ORP 200 mV ± 5mV / 25 °C
250 ml Redox/ORP 475 mV ± 5mV / 25 °C
500 ml Redox/ORP 475 mV ± 5mV / 25 °C
Electrodes
pH - Standard Electrodes
1000203
1000223
1000443
1000363
1000423
1000433
1000263
1000273
1000473
1000463
1000493
1000503
1000513
1002002
1002042
1000413
1000373
1000383
1000213
1000253
1005223
1000393
1000333
Gel
Polymer
Polymer Tip
Standard
Standard HA
Standard HF
STANDARD BNC
STANDARD DIN
STANDARD T - BNC
STANDARD T DIN
Polymer Plast
Polymer Plast BNC
Polymer Plast DIN
201T
201 T DIN
Flat
Flow
Semi-Micro
Micro
Micro P
GEL Plast BNC
FOOD
2 PORE
pH-electrode, gel-filled with ceramic diaphragma
pH-electrode,polymer-filled with open pore diaphragma
pH-electrode,polymer-filled with double open pore diaphragma
pH standard electrode with ceramic diaphragma
like standard, minimal Alkali error
like standard, for samples with HF
like standard, with fix cable BNC
like standard, with fix cable DIN
like standard, with fix cable BNC and Temperature sensor
like standard, with fix cable DIN and Temperature sensor
Polymer electrode with 1 ceramic and 1 x open pore diaphragma, epoxy body
like Polymer, with fix cable BNC
like Polymer, with fix cable DIN
pH-electrode with epoxy body, temperature sensor and fix cable BNC
pH-electrode with Temperature sensor and fix DIN-cable
pH-electrode for surface measurements, 3-hole diaphragma with Teflon
pH-electrode for viscous samples and low ion media, Teflon sleeve diaphragma
pH-electrode for test tube measurements
pH-electrode for small volume samples
pH-electrode for small volume samples with protein, Electrolyte Glycerin
pH-electrode with epoxy body, fix BNC-cable and double diaphragma
pH-electrode with Glycerin KCI electrolyte and 3 ceramic diaphragm
pH-electrode with 2 open pore diaphragma
More pH-Elektrodes on request
DHS pH - Standard Electrodes
1100103
1100123
1100113
201T DHS
STANDARD T -
BNC DHS
2 Pore T DHS
pH-electrode with epoxy body, temperature sensor and fix cable BNC, DHS-function
pH standard electrode with ceramic diaphragma, fix BNC-cable and Temperature sensor, DHS-function
pH-electrode with 2 open pore diaphragma, Temperature sensor and fix
BNC-cable, DHS-function
2000233
2000663
2000673
Standard ORP
Plast ORP
Plast ORP/BNC
electrode with platinum ring for ORP/Redox
electrode with platinum pin for ORP/Redox
electrode with platinum pin for ORP/Redox,
fix cable BNC
Conductivity Cells
Electrodes for ORP Measurement
3004062
3003352
3004012
3004072
3004002
3003362
VP8
VPT 80/1
VPT51/01
VPT 80/10
2301T
EPT 4
conductivity cell, cell constant c=1, fix cable BNC
conductivity cell, cell constant c=1, fix cable BNC, temperature sensor
conductivity cell, cell constant c=0,1, fix cable BNC, temperature sensor for ultrapure water
conductivity cell, cell constant c=10, fix cable BNC, temperature sensor for sea water
conductivity cell, cell constant c=1, fix cable BNC, temperature sensor
conductivity cell, cell constant c=0,55, fix Multi-Pin cablel, T-Sensor
4-pole conductivity cell, 0.1 μS…1 S, Only for EC-45-cond
1001733
1001743
1002012
1000112
1001502
Cable S7 / BNC 1 Meter
Cable S7 / DIN 1 Meter
Temperature sensor NT55
Electrode holder
Printer for EC-36 and EC-45
Printer 1001502
More Accessories
Phoenix Instrument GmbH
Tel.: +49 5131 / 90 818 -30 • Fax: +49 5131 / 90 818 -39
Heinkelstraße 4 • D-30827 Garbsen, Germany
