Centrifuges

Mini Centrifuges CD-1008

The CD-1008 is a small and powerful mini centrifuge which fits on every laboratory bench. Compact, small and very quiet running (<45 dB) is it the ideal instrument for small analysis.

For safety reasons it is running only with a closed lit.

• Two lid colors, green and blue

• Max. speed of 7,000 rpm

• Comes with 2ml x 8 and PCR8 x 2 rotors

• Dual door interlock design

• DC motor drive

• Quiet running, noise level ≤45 dB

• The rotor is seated on a tapered shaft

     which facilitates easy removal

• Ideal for quick spin downs and micro filtration

• The centrifuge starts and stops by closing

    and opening lid or using the on/off switch

CD-1008 G

2 Years

Warranty

CD-1008 B

Technical Data

Speed

max. RCF

Time

Noise

Dimension

Weight

max. capacity

Shipping includes

Voltage • Frequency

Power

CD-1008

7,000 rpm

2,680 g

continous

<45 dB

15 x 15 x 12 cm

0.5 kg

8 x 2 ml

CD 08-2, CD 02-PCR 8

100 - 240 V • 50/60 Hz

20 W

Accessories

CD08-8-2

CD08-2-PCR8

CD08-A02

CD08-A05

Rotor, 8 x 1.5/2 ml

Rotor, 2 x 8 x 0.2 ml

PCR adapter, 2 ml to 0.2 ml, 8 pcs.

Adapter, 2 ml to 0.5 ml, 8 pcs.

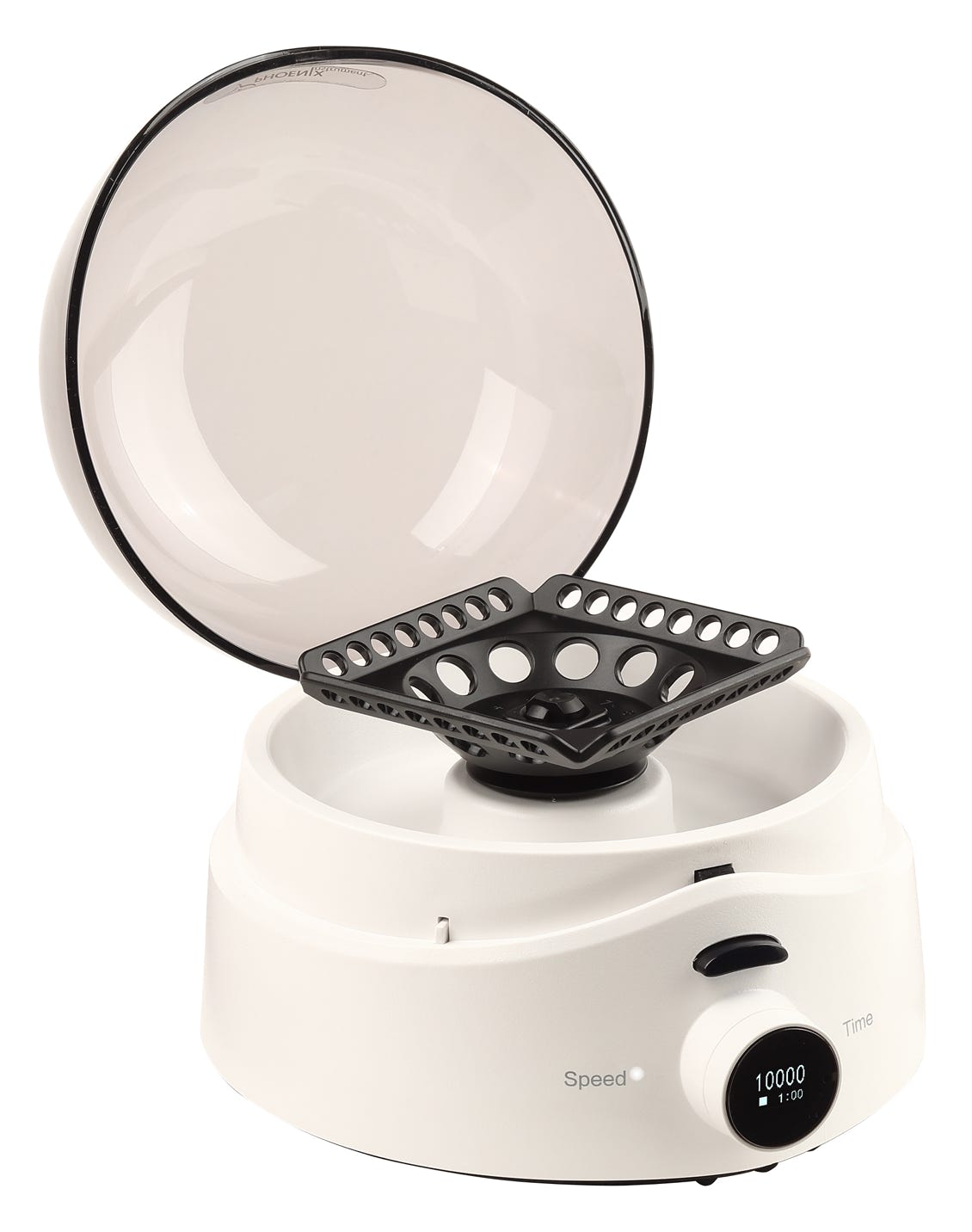

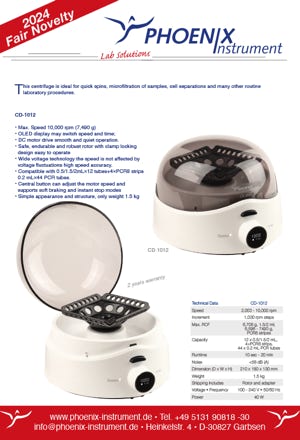

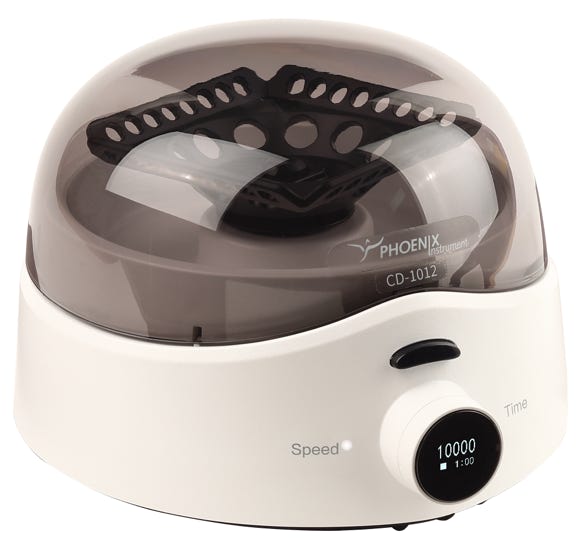

Mini-Centrifuge CD-1012

This centrifuge is ideal for quick spins, microfiltration of samples, cell separations and many other routine laboratory procedures.

• Max. Speed 10,000 rpm (7,490 g)

• OLED display may switch speed and time;

• DC motor drive smooth and quiet operation.

• Safe, endurable and robust rotor with clamp locking

    design easy to operate

• Wide voltage technology the speed is not affected by

voltage fluctuations high speed accuracy.

• Compatible with 0.5/1.5/2mL×12 tubes+4×PCR8 strips

    0.2 mL×44 PCR tubes.

• Central button can adjust the motor speed and

    supports soft braking and instant stop modes

• Simple appearance and structure, only weight 1.5 kg

2 Years

Warranty

CD-1012

Technical data

Speed

Increment

Max. RCF

Capacity

Runtime

Noise

Dimension (DxWxH)

Weight

Shipping includes

Voltage • Frequency

Power

CD-1012

2,000 - 10,000 rpm

1,000 rpm steps

 6,708 g, 1.5/2 ml; 6,596 - 7,490 g, PCR8 stripes

12 x 0.5/1.5/2 ml, 4×PCR8 strips, 44 x 0.2 ml PCR tubes

10 sec - 20 min

<58 dB (A)

210 x 180 x 130 mm

1.5 kg

Rotor, Adapter 0.5 ml, 0.2 ml

 100 - 240 V • 50/60 Hz

40 W

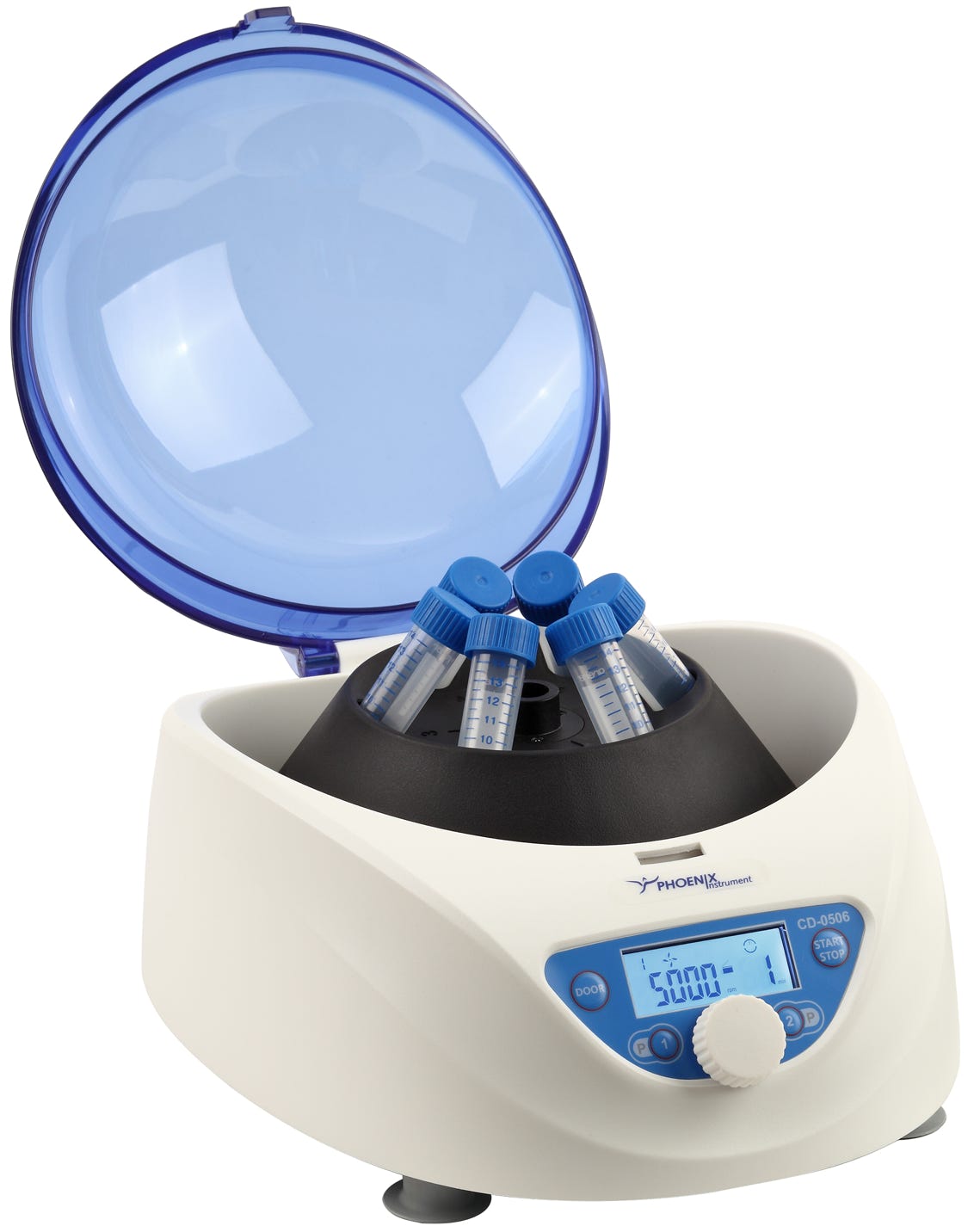

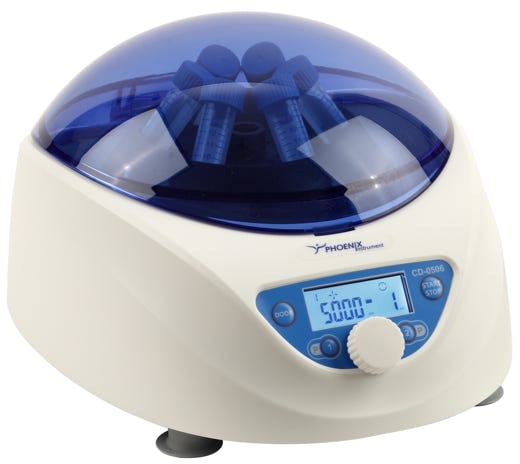

Low Speed Centrifuge CD-0506

The new centrifuge CD-0506, supplied with a built in fixed angle rotor which can hold up to 6 tubes each 15ml/10ml/ 7ml/5ml/ 1.5/2ml. It is widely used for blood or urine separation in medical routine practice in hospitals, clinics or research institutes.

• Speed range from 300 - 5,000 rpm

• Rotor speed can be set and displayed by

    RPM or G-force

• Defined program by knob will be stored and

     activated when power on

• Two programs P1/P2, easy to start the

     procedure by one key

• Two deceleration speeds setting to meet

     different requirements

• Easy-to-read processing display and sound alert

• Automatic lid-lock release after running

• Maintenance-free brushless DC motor

• Rotor and Adapter included

2 Years

Warranty

CD-0506

Technical data

Speed

Increment

max. RCF

Timer

Noise

Dimension (DxWxH)

Weight

max. Capacity

Rotor

Safety

Voltage • Frequency

Power

Shipping includes

CD-0506

300-5,000 rpm

10 rpm

2,600 g

0.5-99 minutes, continous

< 54 dB (A)

24 x 30 x 18 cm

5.2 kg

6 x 15 ml

54° fix angele

Door interlock, overspeed detector, automatic internal diagnosis

100 - 240 V • 50/60 Hz

70 W

Rotor and adapter

Centrifuge CD-0412-50

Whether in environmental, biological or analytical laboratories - in all areas of the laboratory world there is a need to centrifuge samples up to 50 ml quickly and cost-effectively.

With the CD-0412-50, Phoenix Instrument offers exactly the right centrifuge for these requirements. The rotor has 6 holes for 15 ml tubes and 6 holes for 50 ml tubes.

This means that it can be universally equipped with either 15 ml plastic tubes or 50 ml plastic tubes.

• Fix angle rotor (54°) for 6 x 50 ml or 6 x 15 ml

• Automatic self-diagnosis to control all functions

• backlit LCD-display for easy-read out of parameter

• such as Speed, RCF and time

• easy, intuitive operation

• Timer function 0.5 – 99 minutes

• Timer starts after the selected speed is reached

• Quick spin function

• Lid with electric lock and automatic release function to

    save processing time and prevent sample overheating

• Maintenance free brushless motor

2 Years

Warranty

CD-0412-50

Technical data

Speed / increment

max. RCF

Timer

Noise

Dimensions

Weight

Capacity

Rotor

Voltage • Frequency

Power

Shipping includes

CD-0412-50

300 - 4,000 rpm in 100 rpm steps

1,800 g

0.5 - 99 minutes, continous

<54 dB

30 x 35 x 20 cm

6 kg

6 x 15 ml or 6 x 50 ml

54° fix angle

100 - 240 V • 50/60 Hz

70 W

CD-A6-50P

Accessories

CD-A6-50P

CD04-R50P

Rotor 6 x 15 ml or 6 x 50 ml Plastic - Tubes

Centrifuge tubes, plastic, with round bottom, 50 ml

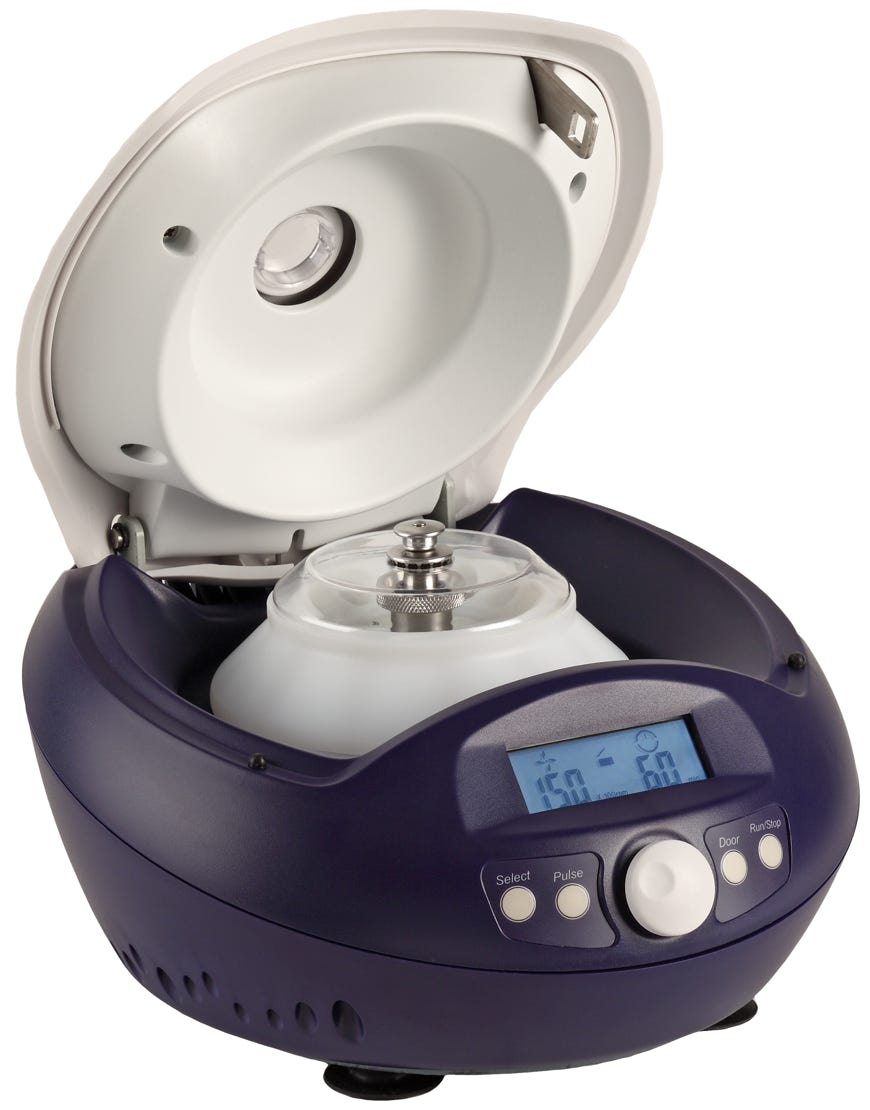

High Speed Micro Centrifuge CD-2012

High speed micro-centrifuge range is widely used in physical and chemistry analysis, biochemistry, cellular and molecular biology, clinical Labs and blood donation centers, and is ideal for high-end research applications:

Sedimentation of cells and viruses, Separation of sub-cellular organelles, Isolation of macromolecules such as DNA, RNA, proteins or lipids.

The CD2012 is a high speed micro centrifuge with a 12-place rotor for 1.5 / 2 ml tubes  - or smaller through the use of adapters. The brushless DC motor drives quickly and effortlessly up to a maximum speed of 15,000 rpm. Easy control and handling is guaranteed by clearly arranged operating knobs and the backlit display.

• Max. speed of 15,000 rpm (increment 100 rpm)

• The max. RCF is 15,100 g

• User-friendly large LCD display shows running information

• Both RPM or G-force can be set and displayed

• The parameters can be modified after the set speed is reached

• Time from 0.5 – 99 minutes or continuous

• Easy-to-read display and sound alerts

• Conforms to all international standards and regulation

• max. capacity 12 x 2 ml (Rotor included in delivery)

• Dimensions: 26 x 25 x 14 cm

• Weight: 6 kg

2 Years

Warranty

CD-2012

Technical data

Speed

max. RCF

Timer

Noise

Dimension

Weight

Max. capacity

Shipping includes

Voltage • Frequency

Power

CD-2012

15,000 rpm

15,100 g

0.5 - 99 min, continous

<56 dB

26 x 15 x 14 cm

6 kg

12 x 2 ml

CD 12-2P

100 - 240 V • 50/60 Hz

100 W

Accessories

CD12-2P

CD12-A02 CD12-A05

Rotor with lid, 12 x 1.5/2 ml

Adapter, 2 ml to 0.2 ml, 24 pcs.

Adapter, 2 ml to 0.5 ml, 24 pcs.

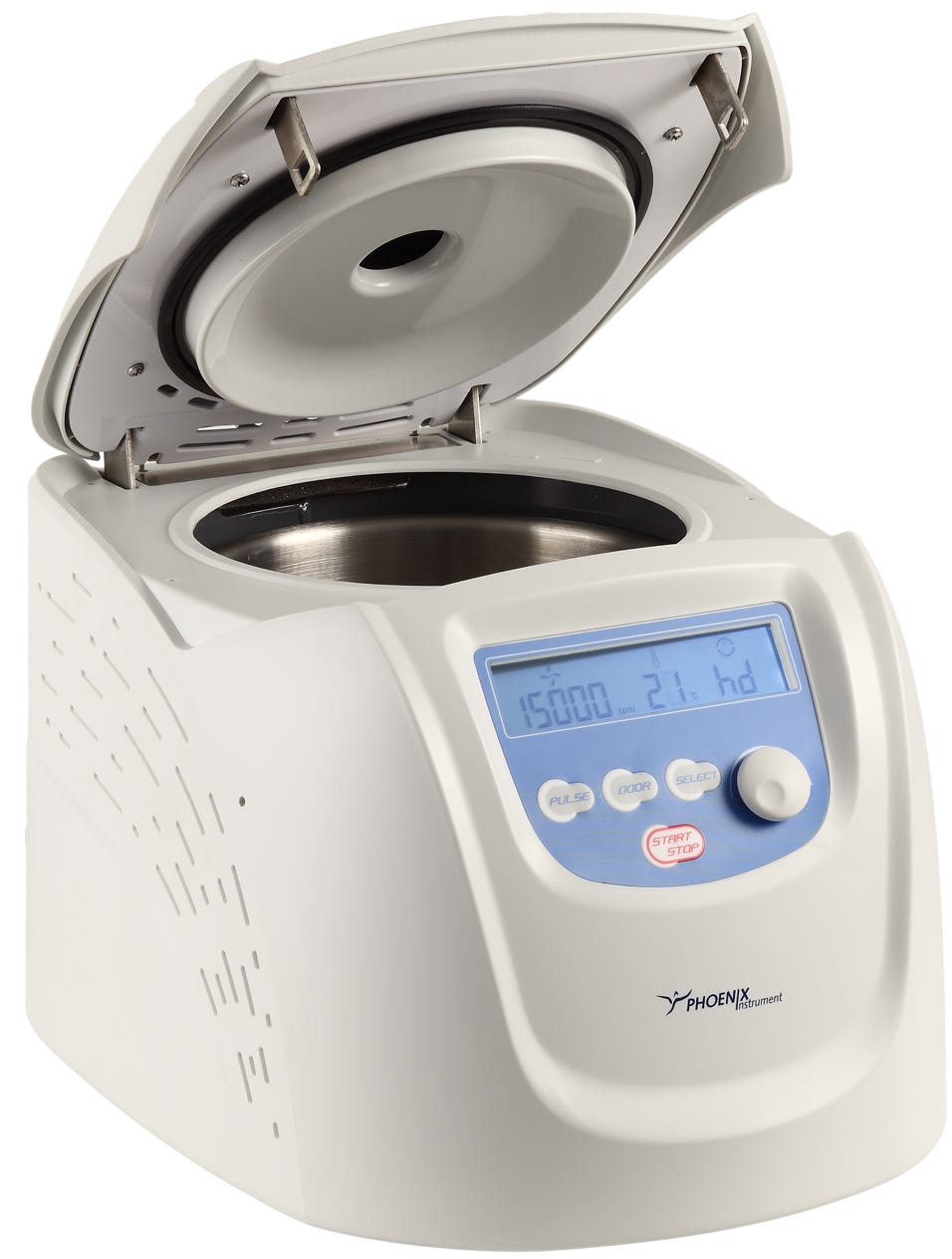

24 Place High Speed Micro Centrifuge CD-3024

The high speed Micro centrifuge CD-3024 has a capacity of 24 x 2 ml, 18 x 5 ml or 36 x 0.5 ml. Easy handling and control is guaranteed with the backlit LCD-Display and the clear operation panel.

For safety reasons the centrifuges are equipped with dual door interlock, self-control of speed and temperature. All rotors are bio-safe and the centrifuges are manufactured in accordance with all international standards and regulations.

• Self diagnostic, control of speed and temperature

• User-friendly large LCD display shows running information

• Both RPM or G-force can be set and displayed

• The parameters can be modified after the set speed is reached

• The short spin function is used for quick spins by

    pressing and holding PULSE key

• Timer starts once the target speed reached, for

    accurate separation time

• Rotor CD24-24-2 included in the delivery

2 Years

Warranty

CD-3024

Technical data

Speed

Max. RCF

Timer

Noise

Dimension

Weight

Max. capacity

Shipping includes

Voltage • Frequency

Power

CD-3024

200 - 15,000 rpm in 10 rpm steps

21,380 g

0.5-99 minutes, continous

<54 dB

34 x 68 x 33 cm

12 kg (without rotor)

18 x 5 ml, 24 x 2 ml, 36 x 0.5 ml

CD24-24-2

220 - 240 V • 50 Hz

200 W

Accessories

CD24-18-5

CD24-24-2

CD24-36-05

CD24-4-PCR8

CD12-A02

CD12-A05

CD24-A02-36

Rotor with lid, 18 x 5 ml

Rotor with lid, 24 x 1.5/2 ml

Rotor with lid, 36 x 0.5 ml

Rotor with lid, 4 x 8 x 0.2 ml PCR

Adapter, 2 ml to 0.2 ml, 24 pcs.

Adapter, 2 ml to 0.5 ml, 24 pcs.

Adapter, 0.5 ml to 0.2 ml, 36 pcs.

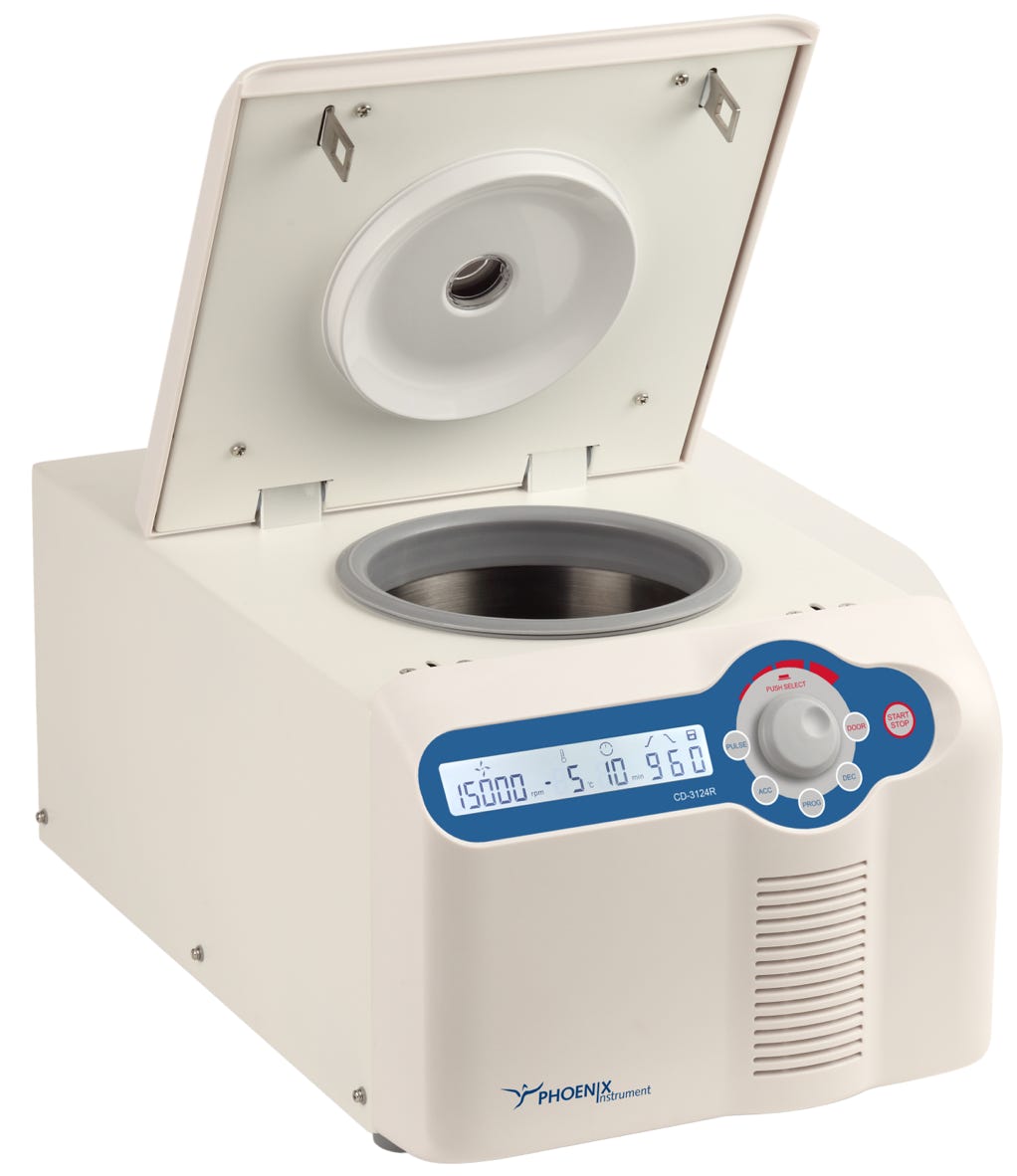

Refrigerated High Speed Centrifuge CD-3124R

The new refrigerated high speed Micro centrifuge CD-3124R has a capacity of 24 x 2 ml, 18 x 5 ml or 36 x 0.5 ml. Easy handling and control is guaranteed with the backlit LCD-Display and the clear operation panel.

For safety reasons the centrifuges are equipped with dual door interlock, self-control of speed and temperature.

All rotors are bio-safe and the centrifuges are manufactured in accordance with all international standards and regulations.

• automatic lid locking

• Pre-cooling system

• environmentally friendly cooling unit

• Maximum speed also below 4 °C

• 9 programme memory locations

• bio-safe rotors, lid with 3-fold safety device

• Aluminium rotors autoclavable at 121 °C

• rotors from 0.2 - 5 ml available

• Condensate tank

• high safety standard

• MCA test by TÜV Rheinland

• Acceleration and deceleration time:

    25s↓ / 25s↓, adjustable in 9 steps

• Rotor CD24-24-2 (24 x 2ml) included

2 Years

Warranty

CD-3124R

Technical data

Speed

Increments

max. RCF

Timer

Capacity

Temperature

Dimension (WxDxH)

Weight

Noise

Voltage • Frequency

Power

CD-3124R

200 - 15,000 rpm

100 rpm

21,380 g

30 s - 99 min, continous

24 x 1.5/2 ml, 36 x 0.5 ml, 12 x 5 ml, 18 x 5 ml, 4 x 8 x 0.2 ml

-20 to +40 °C

34  × 56  × 29 cm

30 kg

< 56 dB [A]

200 - 240 V • 50 Hz

500 W

Accessories

CD24-18-5

CD24-12-5V

CD24-24-2

CD24-36-05

CD24-4-PCR8

Rotor with lid for CD-3024, 18 x 5 ml

Rotor with lid for CD-3024, 12 x 5 ml

Rotor with lid for CD-3024, 24 x 1.5/2 ml

Rotor with lid, 36 x 0.5 ml

Rotor with lid, 4 x 8 x 0.2 ml PCR

Centrifuge CD-0412

Conforms to international safety standards and regulations. The clinical centrifuges have passed the explosion-proof test and marked with CE, TUV and FCC. MCA test according to IEC/EN61010-2-20 including explosion-proof and bio-safe tests.

Passed EN61010-2-101:2002 particular requirements for in vitro diagnostic (IVD) medical equipment. High strength plastic rotor and excellent balance technology to guarantee a quiet and stable operation

Dual protection casing provides safe and reliable running. Brushless motor drive quickly and effortlessly accelerates the rotor to set speed.

• CPU controls all operating parameters including speed and time

• High accuracy of speed, excellent performance

• Operation can be timed from 30 seconds to 99 minutes or

    continuous running

• Timer commences once the set speed is reached, so the

    separation time is more accurate - Gentle braking at low speeds

    with efficient separation

2 Years

Warranty

CD-0412

Technical data

Speed

max. RCF

Timer

Noise

Dimension

Weight

max. Capacity

Rotor

Shipping includes

CD-0412

300 - 4,500 rpm in 100 rpm steps

2,490 g

0,5-99 minutes, continous

<54 dB

26 x 25 x 14 cm

6 kg

 6 x 15 ml or 12 x 10 ml

54° fix angle

CD04-8-15

Accessories

CD04-8-15

CD04-A15

CD04-A15 plug

Rotor, 8 x 15 ml

Adapter, 12 pcs.

Adapter plug, 12 pcs.

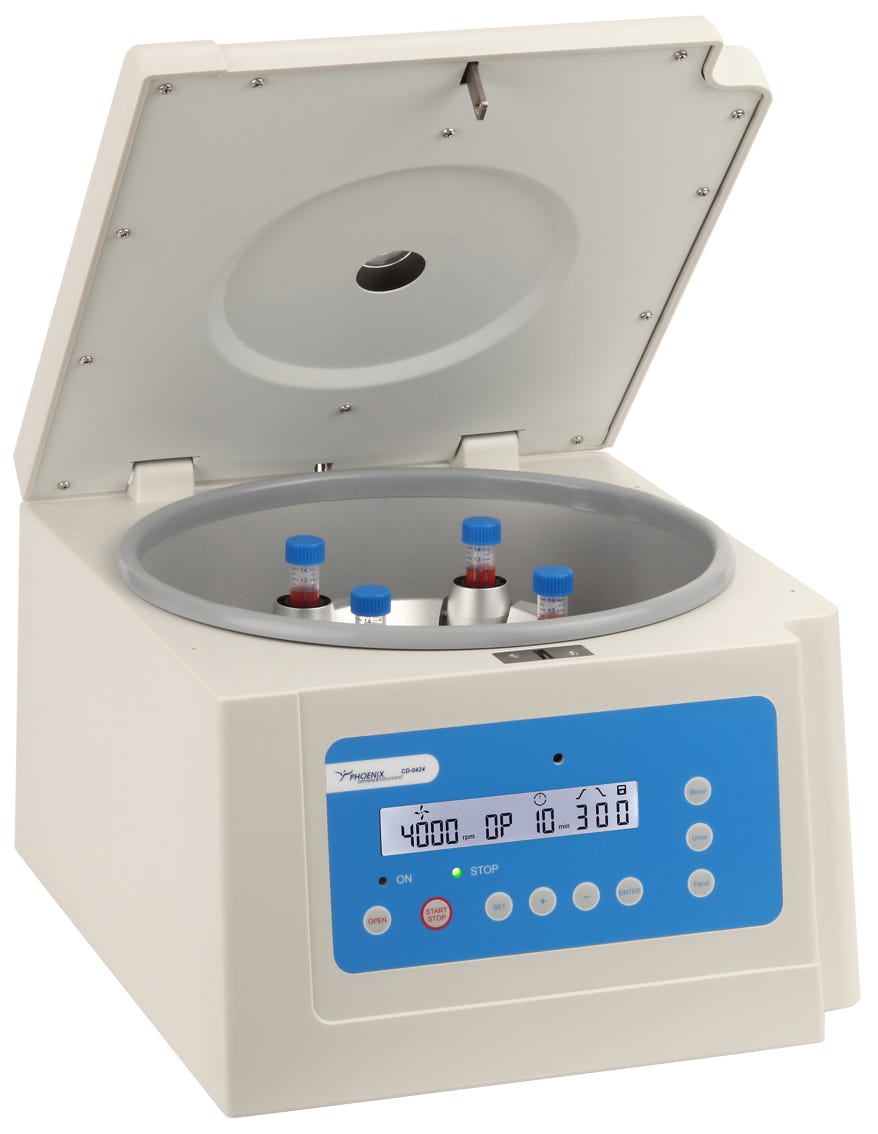

Centrifuge CD-0424

The new multi-purpose centrifuge CD-0424 is versatile and can be used in applications from clinical to biochemical for qualitative analysis of serum, plasma, blood, and urine.

• Maximum up to 4000rpm Speed can be set in RPM/RCF,

     with 3 customizable routines programs (Blood, Urine & Fecal)

• 3 acceleration level & 4 level deceleration

• Maximum capacity 50mL ×4, Suitable for different sizes

     of blood collection tubes and centrifuge tubes for both,

     swing-out and fix angle rotor

• Quiet, compact, and convenient with Easy-to-read LCD display

• Automatic internal diagnosis and self-detection

• Maintenance-free brushless DC motor.

2 Years

Warranty

CD-0424

Technical data

Speed

Increment

max. RCF

Timer

Noise

Dimension

Weight

Max. capacity

Rotor

Safety features

Voltage • Frequency

Power

Shipping includes

CD-0424

500 - 4.000 rpm

100 rpm

2.500 g

1 - 99 min. ,continous

< 62 dB (A)

37 x 44 x 27 cm

14,5 kg

4 x 50 ml

Fix angle or swing rotor

Door interlock, overspeed detector, automatic internal diagnosis

100 - 240 V • 50/60 Hz

70 W

4 x 50 ml swing rotor and adapter

Accessories

CD-S6-15

CD-S4-50

CD-24-15P

CD-A8-15P

CD-15-P30

CD-15-P22

CD-A5-P17

CD-A2-P17

Swing rotor for CD-0424, 6 x 15 ml, max. 4,000 rpm

Swing rotor for CD-0424, 4 x 50 ml, max. 4,000 rpm

Fix angle rotor for CD-0424, 24 x 15 ml, max. 4,000 rpm

Fix angle rotor for CD-0424, 8 x 15 ml, max. 4,000 rpm

Adapter 50 ml to 15 ml, for Tubes 17 x 120 mm and 13/16 x 100 mm Tubes, 4 pcs.

Adapter 15 ml to 13/16 x 100 mm, 24 pcs.

Adapter 15 ml to 5 ml, 13 x 75 mm, 24 pcs.

Adapter to 2 ml, 24 pcs.

Hematocrit Centrifuge CH-1424

Hematocrit centrifuge with CH-24-HR rotor is used for determination of volume fractions of erythrocytes in blood and also for separation of micro blood and solution.

Hematocrit centrifuge with CH24-24-2 rotor is used for extraction of DNA and RNA.

• Speed range of 200-14,000 rpm, max. RCF 18,260 g

• Two rotors, hematocrit rotor with max. capacity 24 capillary

     tubes and 2 ml × 24 rotor

• Precise control speed and time with efficient separation

• Self diagnostic, control of speed and temperature

• User-friendly large LCD display shows running information

• Both RPM or G-force can be set and displayed

2 Years

Warranty

CH-1424

Technical data

Speed

max. RCF

Timer

Noise

Dimension

Weight

Capacity

Rotor

Voltage • Frequency

power

Shipping includes

CH-1424

200 - 14,000 rpm in 10 rpm steps

18.260 g

0.5 - 99 minutes, continous

<60 dB

28 x 36 x 26 cm

10 kg (without rotor)

24 x capillary, 24 x 1.5/2 ml

Hematocrit rotor: 24 x capillary

200 - 240 V • 50/60 Hz

160 W

CH24-H

Accessories

CH24-HR

CH24-24-2

CD12-A02

CD12-A05

Hematocrit rotor with lid and reading disk, 24 hematocrit capillary tubes

Rotor with lid, 24 x 1.5/2 ml

Adapter, 2 ml to 0.2 ml, 24 pcs.

Adapter, 2 ml to 0.5 ml, 24 pcs.
